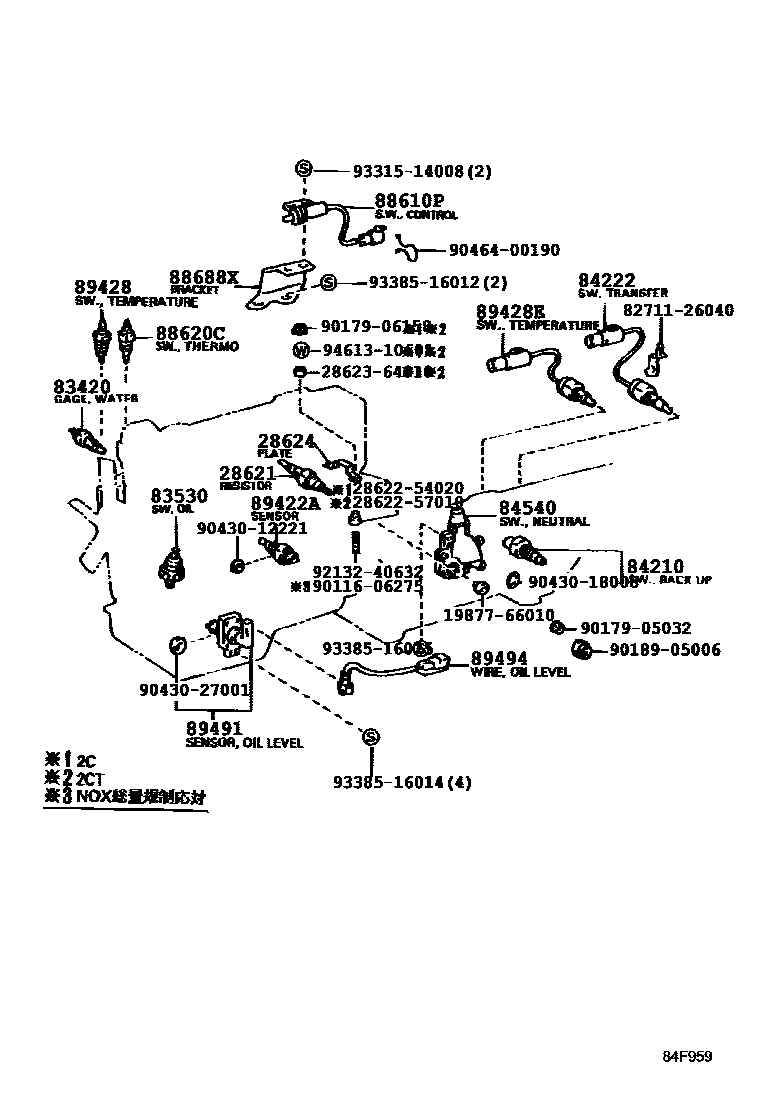

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1������������ 0006 1��� 0007 1�����-��� ���� 0008 1��-����� 0009 1���,�-� & ���

28621RESISTOR, GLOW PLUG

main28621-64011i2C#..CR21,27,28,30,36,37199201-199508

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CR27,36199201-199508

main28624-64030i2C..CR27..ATM199408-199508

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCR22,29,31,38,KR27,YR2#,30199309-199610

main83420-20020iCR27,36199309-199610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR2#,30199201-199309

main83530-14060iKR27199309-199411

main83530-14070iYR2#,30199309-199601

main83530-30060iCR2#,3#199201-199309

main83530-30080iKR27199201-199309

main83530-30090iKR27,YR2#,30199601-199610

main83530-30100iCR2#,3#199309-199610

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCR2#,3#,KR27,YR2#..MTM199201-199610

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-26010iCR3#,YR30199201-199610

84540SWITCH ASSY, NEUTRAL START

main84540-28021iCR2#,3#,KR27,YR2#,30..ATM199201-199309

main84540-30290iCR2#,3#,KR27,YR2#,30..ATM199309-199610

main84540-30300iCR2#,3#,KR27,YR2#,30..ATM199309-199610

88610PSWITCH ASSY, CONTROL

main88601-87002iKR27,YR21;YR30..07S199201-199202

main88610-28180iCR21,28,30,37..MTM..4D199201-199309

88620CTHERMO SWITCH ASSY

main88620-12060iCR30;CR37..ATM199201-199309

main88620-28020iCR30,37..MTM199201-199309

88688XBRACKET, SWITCH

main88688-28070iCR21,28,30,37..MTM..4D199201-199309

main88688-87028iKR27,YR21;YR30..07S199201-199202

89422ASENSOR, WATER TEMPERATURE

main89422-20010iCR21,27,28,30,36,37199201-199610

main89422-35010iCR22,29,31,38199309-199610

89428SWITCH, TEMPERATURE DETECT, NO.2

main88620-28030iCR38..ATM;CR30,31,37..4D199201-199610

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-26030iCR3#,YR30..ATM199201-199309

main89428-60090iCR3#,YR30..ATM199309-199610

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKR27199201-199610

main89491-27020iYR2#,30199201-199610

main89491-27031iCR2#,3#199201-199610

89494WIRE, ENGINE OIL LEVEL SENSOR

main89494-28020iCR2#,3#199201-199204

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

8271126040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26040

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9018905006

main90189-05006

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9046400190

main90464-00190

9213240632

main92132-40632

9331514008

main93315-14008

9338516012

main93385-16012

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

34 parts on this diagram · 9 diagrams in section
