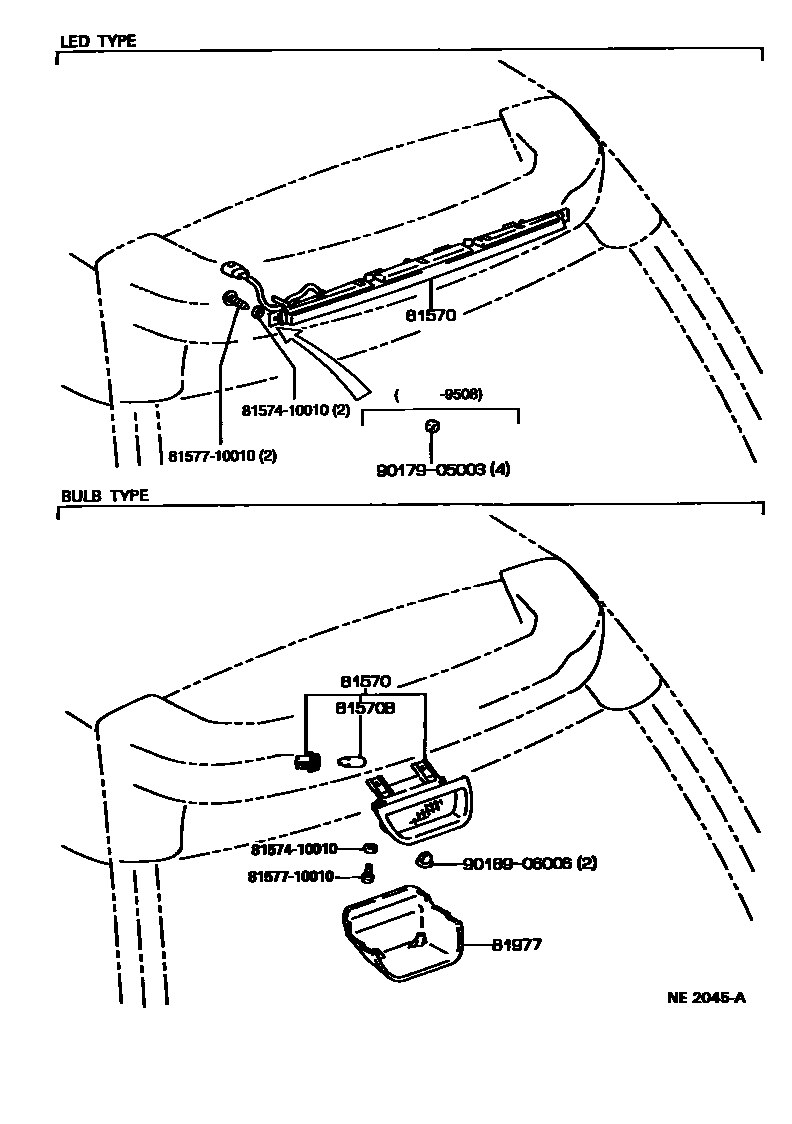

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-28040iCR21,22,30,31,YR21,30..E,Q; CR21,22,30,31,YR21,30..Z199201-199508

LED TYPE

main81570-28050iCR22,31,YR21,30..E,Q; CR22,31,YR21,30..Z199508-199610

LED TYPE

main81570-28060iCR21,22,30,31,YR21,30..E,Q199201-199610

main81570-28070iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

81977COVER, CENTER STOP LAMP

main81977-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main81977-28010-E0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GREIGE,TRIM4#

main81977-28020-B1iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

LIGHT GRAY,TRIM1#

8157410010COVER, CENTER STOP LAMP

main81574-10010

8157710010

main81577-10010

9017905003

main90179-05003

9018906006

main90189-06006

7 parts on this diagram · 1 diagram in section
