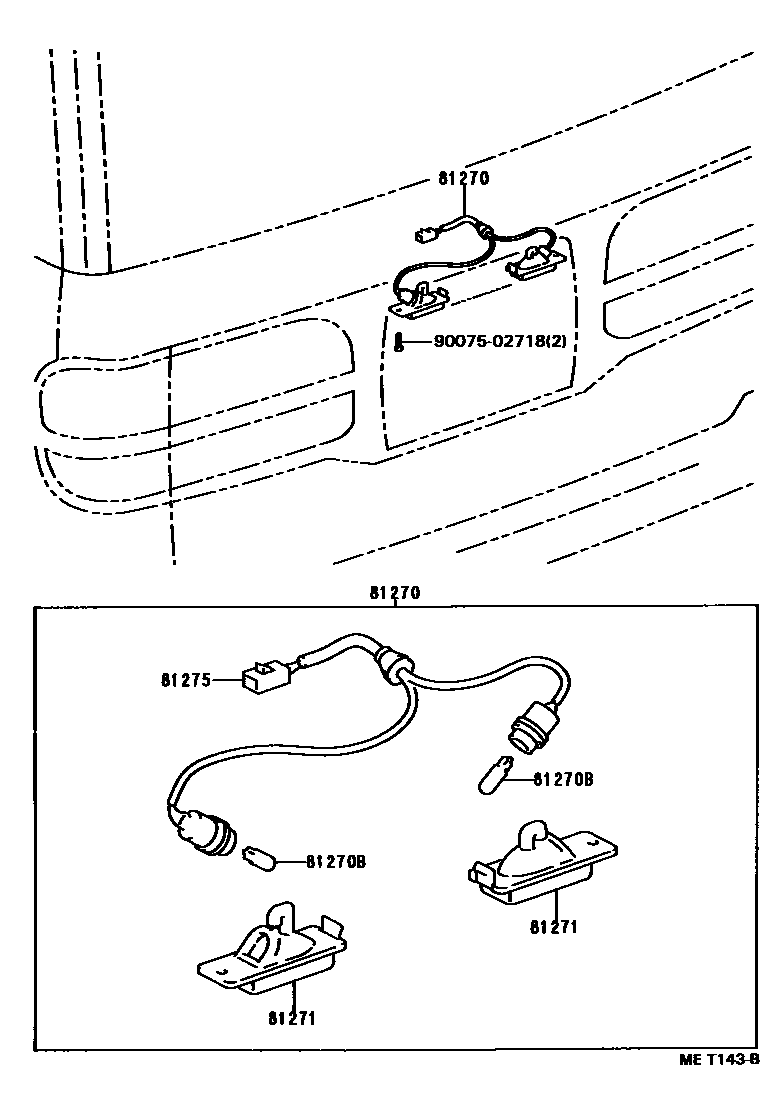

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-28050iCR2#,3#,KR27,YR2#,30199201-199610

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iCR2#,3#,KR27,YR2#,30199201-199610

81271LENS, LICENSE PLATE LAMP

main81271-28050iCR2#,3#,KR27,YR2#,30199201-199610

main81272-28050iCR2#,3#,KR27,YR2#,30199201-199610

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-28050iCR2#,3#,KR27,YR2#,30199201-199610

9007502718

main90075-02718

5 parts on this diagram · 1 diagram in section
