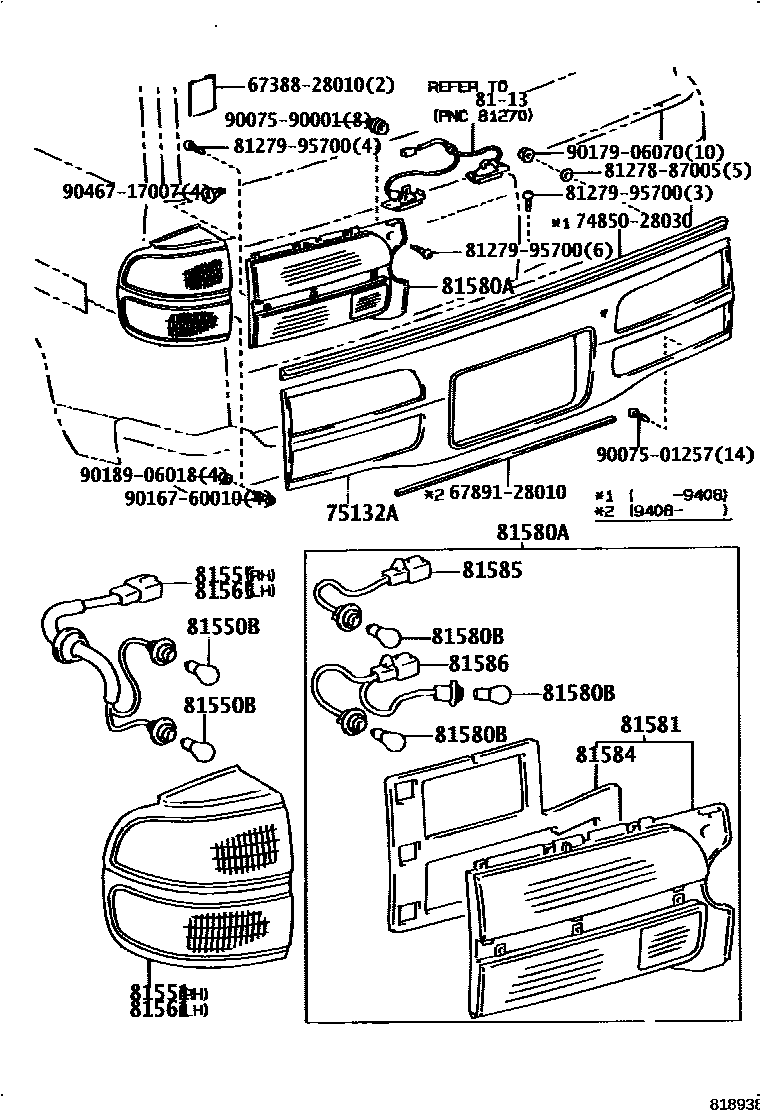

REAR COMBINATION LAMP

0001 1 0002 1

75132ACOVER, LICENSE REAR LAMP

main75132-28010-B0iCR21,30,YR21,30..E,Q199201-199309

main75132-28010-B2iCR21,30,YR21,30..E199304-199308

main75132-28010-D0iCR22,31,YR21,30..E199401-199403

main75132-28010-E0iCR21,30,YR21,30..Z199201-199309

SILKY MIST TONING,23U

main75132-28010-G0iCR21,30,YR21,30..E,Q199201-199309

main75132-28010-J0iCR21,30,YR21,30..E199305-199307

main75132-28020iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199408

main75132-28030-B0iCR21,30,YR21,30..E,Q199201-199309

MED PLATINA GRAY M.,195

main75132-28030-E0iCR21,30,YR21,30..E,Q199201-199309

REDISH BROWN MICA M.,4M1

main75132-28050iCR21,30,YR21,30..E199210-199302

main75132-28060-B0iCR22,31,YR21,30..E,Q199309-199408

main75132-28060-E0iCR22,31,YR21,30..E199401-199408

main75132-28060-G0iCR22,31,YR21,30..E,Q199309-199408

main75132-28060-G1iCR22,31,YR21,30..E199404-199407

main75132-28070-B0iCR22,31,YR21,30..E,Q199309-199408

MED PLATINA GRAY M.,195

main75132-28070-E0iCR22,31,YR21,30..E,Q199309-199408

REDISH BROWN MICA M.,4M1

main75132-28080iCR2#,3#,KR27,YR2#..B,D,G,N199408-199610

main75132-28090-B0iCR22,31,YR21,30..E,Q199408-199610

MED PLATINA GRAY M.,195

main75132-28090-B1iCR22,31,YR21,30..E,Q199408-199508

DARK BLUISH GRAY MC,22U

main75132-28090-B2iCR22,31,YR21,30..E199512-199610

main75132-28090-B3iCR22,31,YR21,30..E,Q199508-199610

BLUISH SILVER ME.,2AU

main75132-28090-B4iCR22,31,YR21,30..E199512-199610

main75132-28090-E0iCR22,31,YR21,30..E,Q199408-199610

FLAXEN M.M.,4M7

main75132-28090-G0iCR22,31,YR21,30..E,Q199408-199508

GREENISH SILVER M.,21U

main75132-28090-G1iCR22,31,YR21,30..E199512

main75132-28090-H0iCR22,31,YR21,30..E199412-199508

main75132-28090-H1iCR22,31,YR21,30..E,Q199508-199610

DP.TEAL BLUE ME.,2AT

main75132-28090-J0iCR22,31,YR21,30..E199412-199508

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iCR2#,3#,KR27,YR2#,30199201-199610

main99132-21210×2iCR2#,3#,KR27,YR2#,30199201-199610

81551LENS, REAR COMBINATION LAMP, RH

main81551-28030-B0iYR21..MTM..HRF; YR30..Q199309-199408

main81551-28030-B2iCR21,30,YR21,30..E199304-199308

main81551-28030-D0iCR22,31,YR21,30..E199401-199403

main81551-28030-E0iCR21,30,YR21,30..Z199201-199309

BROWN MICA/GRAY M.,23U

main81551-28030-G0iYR21..MTM..HRF; YR30..Q199309-199408

main81551-28030-J0iCR21,30,YR21,30..E199304-199307

main81551-28040iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

main81551-28070-B0iCR21,30,YR21,30..E,Q199201-199309

MED PLATINA GRAY M.,195

main81551-28070-E0iCR21,30,YR21,30..E,Q199201-199309

BROWN MICA M.,4M1

main81551-28130iCR21,30,YR21,30..E199210-199302

main81551-28160-B0iCR22,31,YR21,30..E,Q199309-199408

main81551-28160-E0iCR22,31,YR21,30..E199401-199408

main81551-28160-G0iCR22,31,YR21,30..E,Q199309-199408

main81551-28160-G1iCR22,31,YR21,30..E199404-199408

main81551-28170-B0iCR22,31,YR21,30..E,Q199309-199408

MED PLATINA GRAY M.,195

main81551-28170-E0iCR22,31,YR21,30..E,Q199309-199408

REDISH BROWN MICA M.,4M1

main81551-28190-B0iCR22,31,YR21,30..E,Q199408-199610

MED PLATINA GRAY M.,195

main81551-28190-B1iCR22,31,YR21,30..E,Q199408-199508

DARK BLUISH GRAY MC,22U

main81551-28190-B2iCR22,31,YR21,30..E199512-199610

main81551-28190-B3iCR22,31,YR21,30..E,Q199508-199610

BLUISH SILVER ME.,2AU

main81551-28190-B4iCR22,31,YR21,30..E199512-199610

main81551-28190-E0iCR22,31,YR21,30..E,Q199408-199610

FLAVEN M.M,4M7

main81551-28190-G0iCR22,31,YR21,30..E,Q199408-199508

GREENISH SILVER M.,21U

main81551-28190-G1iCR22,31,YR21,30..E199512-199610

main81551-28190-H0iCR22,31,YR21,30..E199412-199508

main81551-28190-H1iCR22,31,YR21,30..E,Q199508-199610

DP.TEAL ME.,2AT

main81551-28190-J0iCR22,31,YR21,30..E199412-199508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28030iCR2#,3#,KR27,YR2#,30199201-199610

81561LENS, REAR COMBINATION LAMP, LH

main81561-28030-B0iCR21,30,YR21,30..E,Q199201-199309

main81561-28030-B2iCR21,30,YR21,30..E199304-199308

main81561-28030-D0iCR22,31,YR21,30..E199401-199403

main81561-28030-E0iCR21,30,YR21,30..Z199201-199309

BROWN MICA/GRAY M.,23U

main81561-28030-G0iCR21,30,YR21,30..E,Q199201-199309

main81561-28030-J0iCR21,30,YR21,30..E199304-199307

main81561-28040iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

main81561-28060-B0iCR21,30,YR21,30..E,Q199201-199309

MED PLATINA GRAY M.,195

main81561-28060-E0iCR21,30,YR21,30..E,Q199201-199309

BROWN MICA M.,4M1

main81561-28110iCR21,30,YR21,30..E199210-199302

main81561-28150-B0iCR22,31,YR21,30..E,Q199408-199610

MED PLATINA GRAY M.,195

main81561-28150-B1iCR22,31,YR21,30..E,Q199408-199508

DARK BLUISH GRAY MC,22U

main81561-28150-B2iCR22,31,YR21,30..Z199408-199610

WARMGRAY OPAL,25Y

main81561-28150-B3iCR22,31,YR21,30..E,Q199508-199610

BLUISH SILVER ME.,2AU

main81561-28150-B4iCR22,31,YR21,30..E199512-199610

main81561-28150-E0iCR22,31,YR21,30..E,Q199408-199610

FLAVEN M.M,4M7

main81561-28150-G0iCR22,31,YR21,30..E,Q199408-199508

GREENISH SILVER M.,21U

main81561-28150-G1iCR22,31,YR21,30..E199512-199610

main81561-28150-H0iCR22,31,YR21,30..E199412-199508

main81561-28150-H1iCR22,31,YR21,30..E,Q199508-199610

DP.TEAL ME.,2AT

main81561-28150-J0iCR22,31,YR21,30..E199412-199508

main81561-28160-B0iCR22,31,YR21,30..E,Q199309-199408

main81561-28160-E0iCR22,31,YR21,30..Z199309-199408

SILKY MIST TONING,23U

main81561-28160-G0iCR22,31,YR21,30..E,Q199309-199408

main81561-28160-G1iCR22,31,YR21,30..E199404-199408

main81561-28170-B0iCR22,31,YR21,30..E,Q199309-199408

MED PLATINA GRAY M.,195

main81561-28170-E0iCR22,31,YR21,30..E,Q199309-199408

REDISH BROWN MICA M.,4M1

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28030iCR2#,3#,KR27,YR2#,30199201-199610

81580ALAMP ASSY, REAR

main81580-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199311

main81580-28020iCR22,31,YR21,30..E,Q,Z199408-199610

main81580-28040iCR22,31,YR21,30..E,Q,Z199311-199408

main81590-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199311

main81590-28020iCR22,31,YR21,30..E,Q,Z199408-199610

main81590-28030iCR22,31,YR21,30..E,Q,Z199311-199408

81580BBULB (FOR REAR LAMP)

main99132-11210×4iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

main99132-21210×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

81581LENS, REAR LAMP

main81581-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

main81581-28020iCR22,31,YR21,30..E,Q,Z199408-199610

main81591-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

main81591-28020iCR22,31,YR21,30..E,Q,Z199408-199610

81584PACKING, REAR LAMP RH

main81584-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

main81594-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

81585SOCKET & WIRE, REAR LAMP

main81585-28010×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

81586CORD, REAR LAMP

main81586-28010×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

6738828010PROTECTOR, BACK DOOR EDGE

main67388-28010

6789128010WEATHERSTRIP, REAR DOOR PANEL

main67891-28010

7485028030SEPARATOR ASSY

main74850-28030

8127887005COVER, LICENSE PLATE LAMP

main81278-87005

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9007501257

main90075-01257

9007590001

main90075-90001

9016760010

main90167-60010

9017906070

main90179-06070

9018906018

main90189-06018

9046717007

main90467-17007

24 parts on this diagram · 2 diagrams in section
