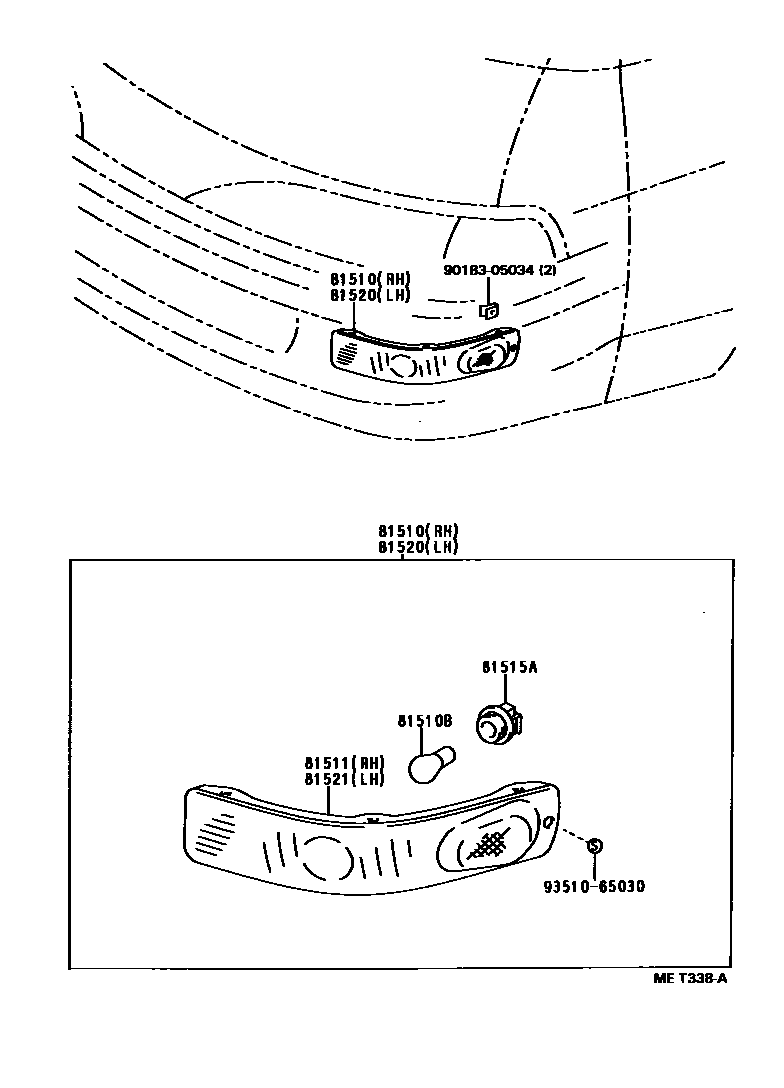

FRONT TURN SIGNAL LAMP

0001 1 0003 1LITEACE 0005 1TOWNACE

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-28040iCR22,31,YR21,30199309-199506

main81510-28050iCR27,29,36,38,KR27,YR25199309-199408

LITE ACE

main81510-28080iCR22,31,YR21,30199506-199610

main81510-28130iCR27,29,36,38,KR27,YR25199309-199408

TOWN ACE

main81510-28150iCR27,29,36,38,KR27,YR25199408-199610

LITE ACE

main81510-28180iCR27,29,36,38,KR27,YR25199408-199610

TOWN ACE

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iCR2#,3#,KR27,YR2#,30199201-199610

main99132-12050×2iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-28040iCR21,30,YR21,30..E,Q,Z199201-199309

main81511-28050iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

LITE ACE

main81511-28080iCR22,31,YR21,30199506-199610

main81511-28130iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

TOWN ACE

main81511-28150iCR27,29,36,38,KR27,YR25199408-199610

LITE ACE

main81511-28180iCR27,29,36,38,KR27,YR25199408-199610

TOWN ACE

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-28050×2iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

LITE ACE

main81515-28060×2iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

TOWN ACE

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-99020×2iCR22,31,YR21,30199309-199506

main90075-99078×2iCR22,31,YR21,30199506-199610

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-28030iCR22,31,YR21,30199309-199506

main81520-28040iCR27,29,36,38,KR27,YR25199309-199408

LITE ACE

main81520-28070iCR22,31,YR21,30199506-199610

main81520-28130iCR27,29,36,38,KR27,YR25199309-199408

TOWN ACE

main81520-28150iCR27,29,36,38,KR27,YR25199408-199610

LITE ACE

main81520-28180iCR27,29,36,38,KR27,YR25199408-199610

TOWN ACE

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-28030iCR21,30,YR21,30..E,Q,Z199201-199309

main81521-28040iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

LITE ACE

main81521-28070iCR22,31,YR21,30199506-199610

main81521-28130iCR2#,3#,KR27,YR2#..B,D,F,N199201-199309

TOWN ACE

main81521-28150iCR27,29,36,38,KR27,YR25199408-199610

LITE ACE

main81521-28180iCR27,29,36,38,KR27,YR25199408-199610

TOWN ACE

9018305034

main90183-05034

9351065030

main93510-65030

9 parts on this diagram · 3 diagrams in section
