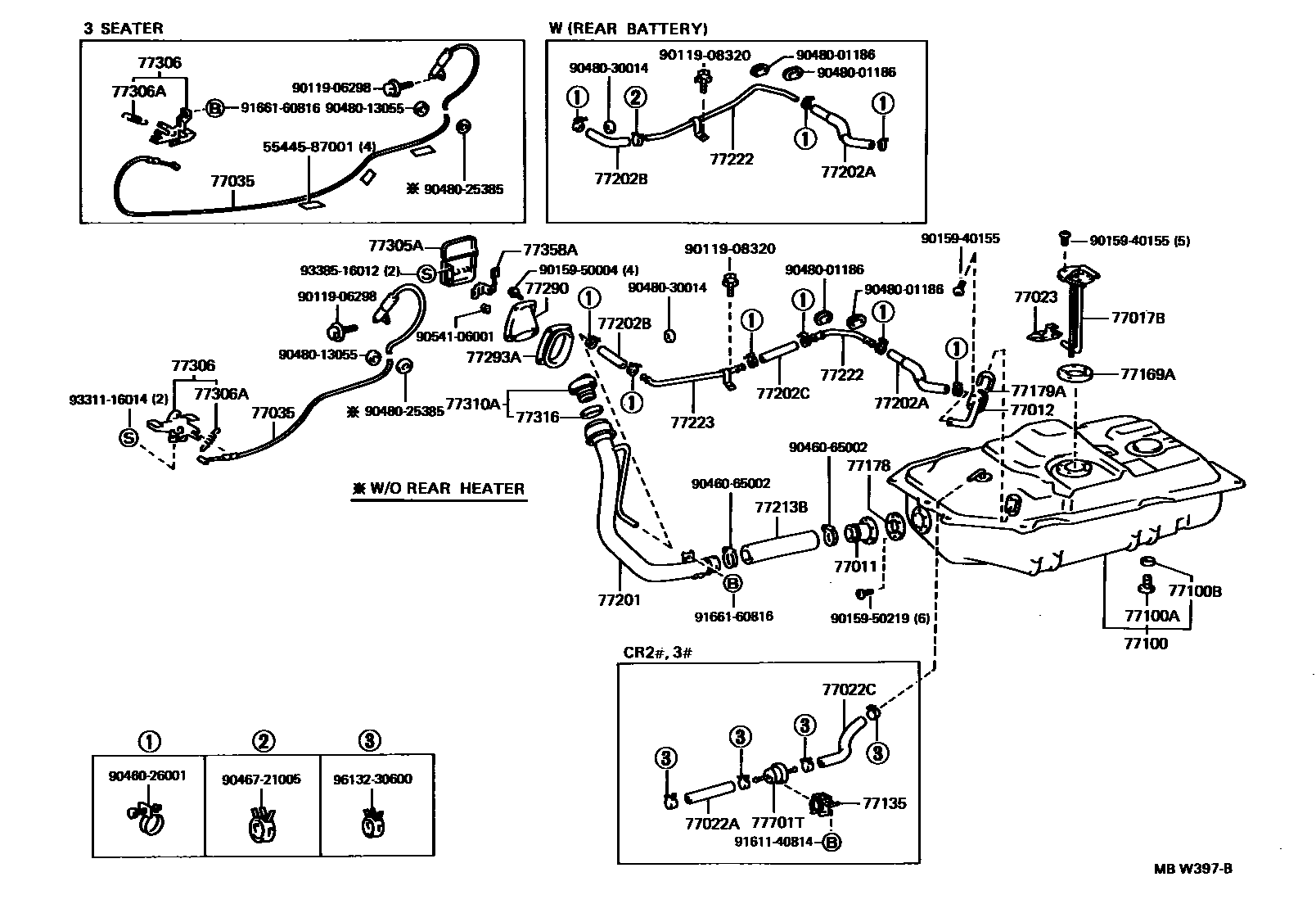

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-13010iCR2#,3#,KR27,YR2#,30199201-199610

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-28020iCR2#,3#,KR27,YR2#,30199201-199610

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-28070iKR27,YR25199201-199610

main77017-28090iCR27199201-199610

main77017-28120iCR21,22,28,29199201-199610

main77017-28130iCR3#199201-199610

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06020iCR2#,3#199201-199610

sub95337-06020

77022CHOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06010iCR2#,3#,KR27,YR2#,30199201-199610

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iKR27,YR25199201-199610

main77023-32040iCR2#,3#199201-199610

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28010iCR2#,3#,KR27,YR2#,30..02S,05S,07S,08S199201-199610

main77035-28040iKR27,YR25..MTM..D199201-199610

77100TANK ASSY, FUEL

main77001-28360iCR27,KR27,YR25199201-199610

main77001-28370iYR21199201-199309

sub77001-28430

main77001-28390iCR21,22,28,29199201-199610

main77001-28400iYR30199201-199610

main77001-28410iCR30,31,37,38199201-199610

main77001-28420iCR36199201-199610

main77001-28430iYR21199309-199610

77100APLUG(FOR FUEL TANK)

main90105-12116iCR2#,3#,KR27,YR2#,30199201-199610

77100BGASKET(FOR FUEL TANK)

main90430-12245iCR2#,3#,KR27,YR2#,30199201-199610

77135BRACKET, CHECK VALVE

main77277-28020iCR2#,3#199201-199203

sub77277-28021

main77277-28021iCR2#,3#199203-199610

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iCR2#,3#,KR27,YR25199201-199610

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iCR2#,3#,KR27,YR2#,30199201-199610

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iCR2#,3#,KR27,YR2#,30199201-199610

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28140iCR2#,3#,KR27,YR2#,30199201-199610

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-28030iCR2#,3#,KR27,YR2#,30199201-199610

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77279-28010iKR27,YR25..4D..(05S,06S)199201-199610

main90445-24029iCR27,29,36,38,KR27,YR25199201-199610

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-24010iCR2#,3#,KR27,YR2#..B,D,F,N199201-199610

77213BHOSE, FUEL TANK TO FILLER PIPE

main77217-28010iCR2#,3#,KR27,YR2#,30199201-199610

77222TUBE, FUEL TANK BREATHER, NO.2

main77013-28020iCR27,28,29,36,37,38..4D..05S199201-199610

main77222-28030iCR2#,3#,KR27,YR2#..B,D,F,N199201-199610

77223TUBE, FUEL TANK BREATHER, NO.3

main77014-28010iCR2#,3#,KR27,YR2#..B,D,F,N199201-199610

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-28010iCR2#,3#,KR27,YR2#,30199201-199610

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-28010iCR2#,3#,KR27,YR2#,30199201-199610

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-28010iCR2#,3#,KR27,YR2#,30199201-199610

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-28010iKR27,YR25..MTM..D199201-199610

main64606-87001iCR2#,3#,KR27,YR2#,30..02S,05S,07S,08S199201-199610

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iCR2#,3#,KR27,YR2#,30199201-199610

77310ACAP ASSY, FUEL TANK

main77310-16011iKR27,YR2#,30199201-199610

sub77310-12140

main77310-32011iCR2#,3#199201-199610

77316GASKET, FUEL TANK CAP

main77316-16010iCR2#,3#,KR27,YR2#,30199201-199610

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-28030iCR2#,3#,KR27,YR2#,30199201-199610

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iCR2#,3#199201-199610

main90917-10069iKR27,YR2#,30199201-199207

sub90917-10082

main90917-10082iKR27,YR2#,30199207-199610

5544587001GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87001

9011906298

main90119-06298

9011908320

main90119-08320

9015940155

main90159-40155

9015950004

main90159-50004

9015950219

main90159-50219

9046026001

main90460-26001

9046065002

main90460-65002

9046721005

main90467-21005

9048001186

main90480-01186

9048013055

main90480-13055

9048025385

main90480-25385

9048030014

main90480-30014

9054106001

main90541-06001

9161140814

main91611-40814

9166160816

main91661-60816

9331116014

main93311-16014

9338516012

main93385-16012

9613230600

main96132-30600

49 parts on this diagram · 7 diagrams in section
