Toyota LITE/TOWNACE V,WG — EMBLEM & NAME PLATE

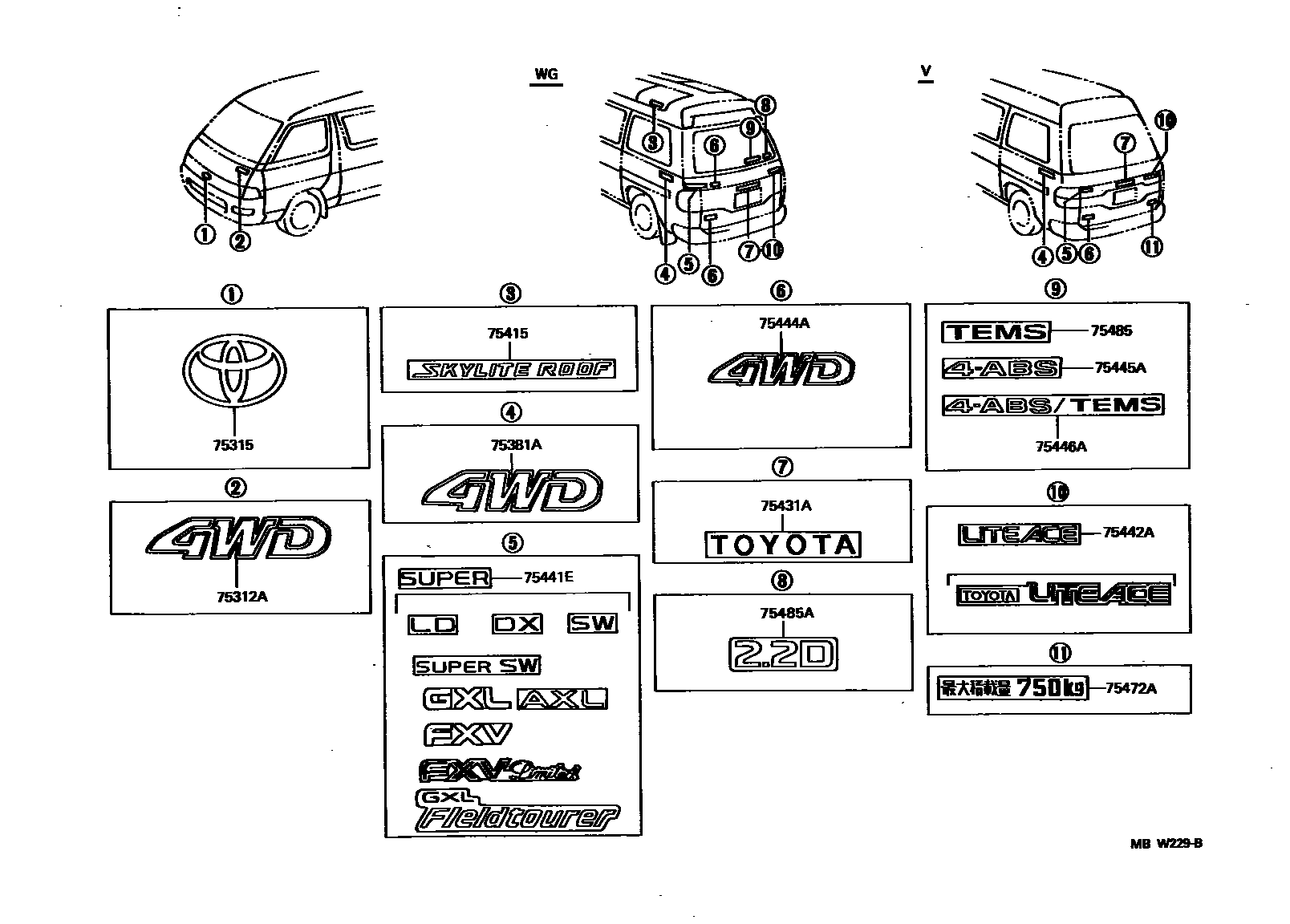

Parts diagram

75312APLATE, FRONT NAME, NO.2

75315ORNAMENT, RADIATOR GRILLE

75381APLATE, QUARTER PANEL

75415ORNAMENT, ROOF SIDE

75431AEMBLEM, BACK DOOR, NO.1

75441EPLATE, BACK DOOR NAME, NO.1

75442APLATE, BACK DOOR NAME, NO.2

75444APLATE, BACK DOOR NAME, NO.4

75445APLATE, BACK DOOR NAME, NO.5

75446APLATE, BACK DOOR NAME, NO.6

75472APLATE, REAR BODY NAME, NO.2

75485PLATE, BACK WINDOW NAME

75485APLATE, BACK WINDOW NAME

13 parts on this diagram · 2 diagrams in section

EMBLEM & NAME PLATE for Toyota LITE/TOWNACE V,WG

This section contains 14 genuine Toyota parts for the EMBLEM & NAME PLATE system of the Toyota LITE/TOWNACE V,WG. Key components include: PLATE, FRONT NAME, NO.2, ORNAMENT, RADIATOR GRILLE, PLATE, QUARTER PANEL, ORNAMENT, ROOF SIDE, EMBLEM, BACK DOOR, NO.1.
