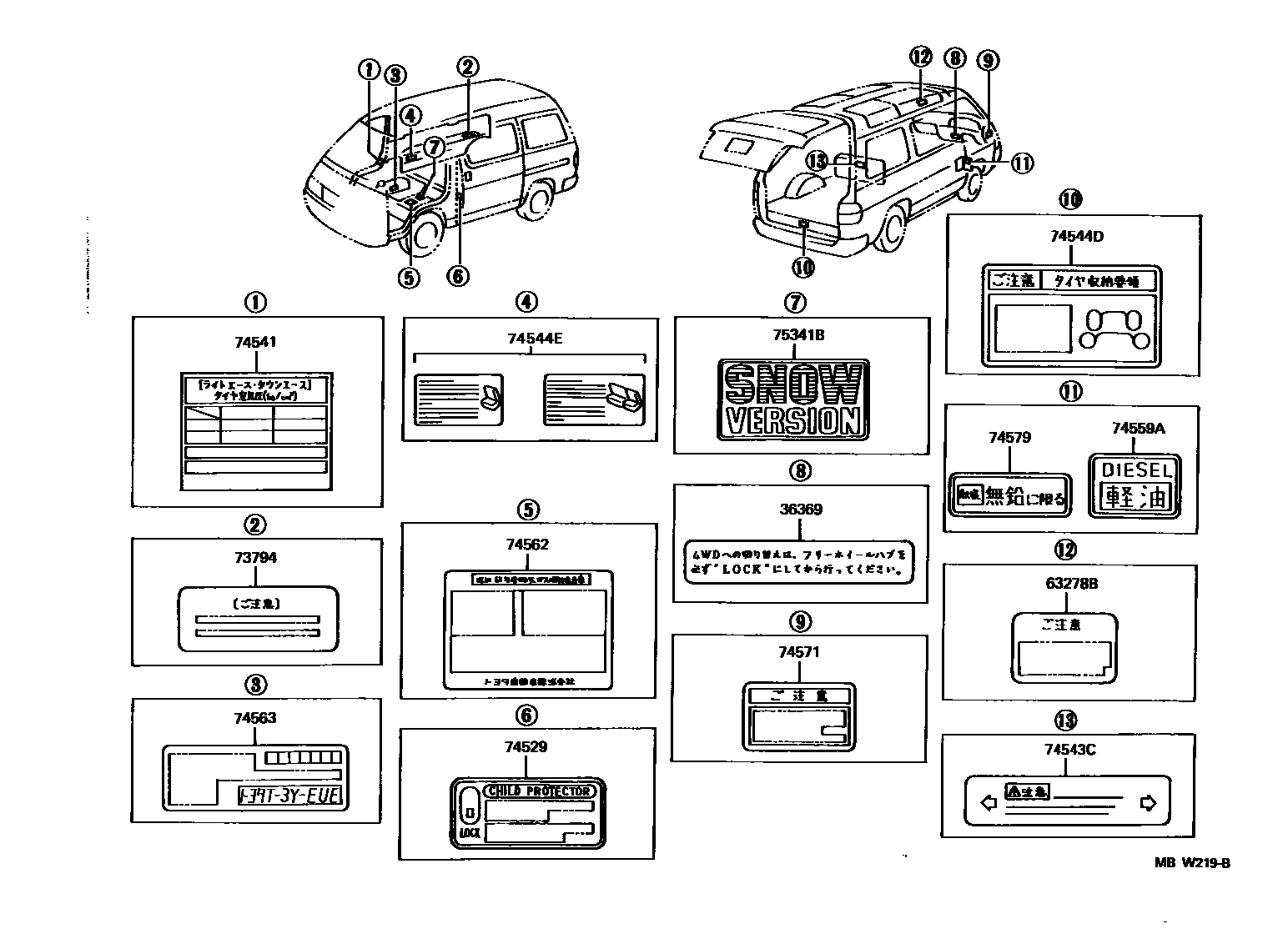

CAUTION PLATE

36369LABEL, TRANSFER INFORMATION

main36369-28110iCR3#,YR30199201-199303

63278BPLATE, REMOVABLE ROOF LOCK HANDLE CAUTION

main63278-28010×2iCR22,31,YR21,30..E,Q,Z199408-199610

main63278-87002×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

73794LABEL, REAR SEAT BELT NOTICE

main73794-28010-B0iCR21,30,YR21,30..Q199201-199211

GRAY,TRIM1#

main73794-28010-E0iCR21,30,YR21,30..07S199201-199211

GREIGE,TRIM4#

main73794-28011iCR22,31,YR21,30..E199508-199610

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iCR21,22,28,29,30,31,37,38,YR21,30199201-199610

74541PLATE, TIRE PRESSURE CAUTION

main42661-28270iCR21,22,YR21..E,G,Q,Z199201-199506

main42661-28271iCR22,YR21..E,G,Q,Z199506-199610

main42661-28280iCR21,22,YR21..D199201-199506

main42661-28281iCR22,YR21..D199506-199610

main42661-28290iCR31;CR30,YR30..E,Q,Z199201-199506

main42661-28291iCR31,YR30199506-199610

main42661-28300iCR30..D199201-199309

main42661-28310iCR28,29,37,38199201-199506

main42661-28311iCR29,38199506-199610

main42661-28320iCR27,KR27,YR25..V1199201-199506

main42661-28321iCR27,KR27,YR25..V1199506-199610

main42661-28330iCR27,KR27,YR25..V2199201-199506

main42661-28331iCR27,KR27,YR25..V2199506-199610

main42661-28340iCR36199201-199506

main42661-28341iCR36199506-199610

74543CLABEL, REAR SEAT INFORMATION

main74543-28020iCR27,36,KR27,YR25..D..(05S,06S)..V1199508-199610

74544DPLATE, TIRE CARRIER CAUTION

main74544-27040iCR27,KR27,YR25..V2199201-199610

74544ELABEL, REAR NO.2 SEAT INFORMATION

main74544-28080iCR21,30,YR21,30..07S199201-199211

main74544-28081iCR21,22,30,31,YR21,30..07S199211-199610

main74544-28090iCR21,30,YR21,30..E199201-199211

main74544-28091iCR21,22,30,31,YR21,30..E,G199211-199610

74559APLATE, FUEL CAUTION

main74559-14030iCR22,27,29,31,36,38199303-199610

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-28110iCR27,36199201-199309

main74562-28160iKR27199201-199508

main74562-28170iYR25199201-199508

main74562-28180iYR21,30199201-199508

main74562-28190iCR21,28,30,37199201-199309

main74562-28210iCR27,36199309-199505

main74562-28240iCR22,29,31,38199309-199408

main74562-32140iCR22,29,31,38199408-199505

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-21060iCR27..ATM199408-199610

main74563-27100iCR21,28,30,37..MTM199201-199309

main74563-27110iKR27199201-199508

main74563-28070iYR21,30199201-199610

main74563-28080iCR21,28,30,37..ATM199201-199309

main74563-28120iYR25199201-199508

main74563-28130iCR22,31199309-199408

main74563-28140iCR27..ATM; CR36;CR27..MTM199408-199608

main74563-28141iCR27..ATM; CR36;CR27..MTM199608-199610

main74563-28160iKR27199508-199610

main74563-28180iCR22,31199408-199610

main74563-28200iYR25199508-199610

74571PLATE, BRAKE FLUID CAUTION

main47287-28020iCR2#,3#,KR27,YR2#,30199505-199610

main47288-32010iCR2#,3#,KR27,YR2#,30199201-199505

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iKR27,YR2#,30199201-199203

75341BPLATE, HOOD NAME

main75341-20060iCR2#,3#,KR27,YR25199201-199610

14 parts on this diagram · 1 diagram in section
