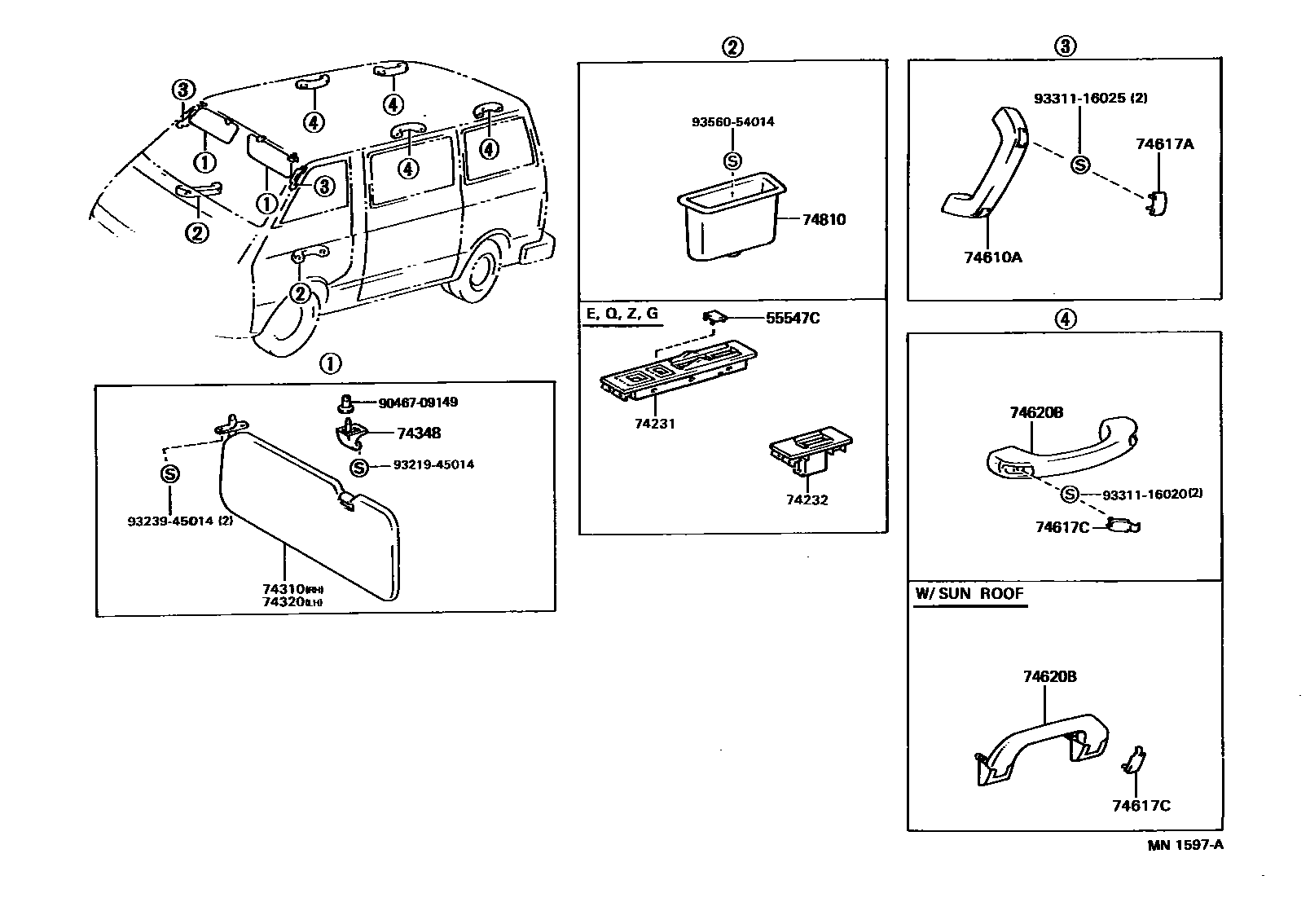

ARMREST & VISOR

55547CCOVER, SWITCH HOLE

main55547-28010-03iCR21,22,30,31,YR21,30..E,G,Q199201-199508

LIGHY GRAY,TRIM1#

main55547-28010-B0iCR22,31,YR21,30..E,G,Q199508-199610

BLUISH GRAY,TRIM1#

main55547-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28050-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199508

GRAY,TRIM1#

main74231-28050-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199508

GREIGE,TRIM4#

main74231-28051-B0iCR22,31,YR21,30..E,G,Q199508-199610

GRAY,TRIM1#

main74231-28051-E0iCR22,31,YR21,30..E,Q,Z199508-199610

GREIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-87002-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199610

GRAY,TRIM1#

main74232-87002-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

74310VISOR ASSY, RH

main74310-28420-B0iCR30..MTM..07S; CR30..MTM..E199201-199309

main74310-28420-E0iCR30..MTM..07S; CR30..MTM..E199201-199309

main74310-28430-B0iCR30,YR30..ATM..08S; CR30,YR30..ATM..Q199201-199309

main74310-28430-E0iCR30,YR30..ATM..07S; CR30,YR30..ATM..08S199201-199309

main74310-28440-B0iCR21,YR21..E; CR21,YR21..Q199201-199309

main74310-28440-E0iCR21,YR21..07S; CR21,YR21..E199201-199309

main74310-28450-B0iCR30..MTM..07S; CR30..MTM..E199201-199309

main74310-28450-E0iCR30..MTM..07S; CR30..MTM..E199201-199309

main74310-28460-B0iCR30,YR30..ATM..08S; CR30,YR30..ATM..Q199201-199309

main74310-28460-E0iCR30,YR30..ATM..07S; CR30,YR30..ATM..08S199201-199309

main74310-28470-B0iCR21,YR21..E; CR21,YR21..Q199201-199309

main74310-28470-E0iCR21,YR21..07S; CR21,YR21..E199201-199309

main74310-28500-B0iCR3#..MTM..(02S,05S,08S)199201-199309

LIGHT GRAY,TRIM1#

main74310-28500-E0iCR30..MTM..E199201-199309

LIGHT GREIGE,TRIM4#

main74310-28510-B0iCR3#,YR30..ATM..(05S,08S)199201-199309

LIGHT GRAY,TRIM1#

main74310-28510-E0iCR30,YR30..ATM..08S199201-199309

LIGHT GREIGE,TRIM4#

main74310-28520-B0iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199201-199309

LIGHT GRAY,TRIM1#

main74310-28520-E0iCR21,YR21..E199201-199309

LIGHT GREIGE,TRIM4#

main74310-28620-B0iCR31..MTM..07S; CR31..MTM..E199309-199401

main74310-28620-E0iCR31..MTM..07S; CR31..MTM..E199309-199401

main74310-28621-B0iCR31..MTM..07S; CR31..MTM..E199401-199506

main74310-28621-E0iCR31..MTM..07S; CR31..MTM..E199401-199506

main74310-28622-B0iCR31..MTM..07S; CR31..MTM..E199506-199610

main74310-28622-E0iCR31..MTM..07S; CR31..MTM..E199506-199610

main74310-28630-B0iCR31,YR30..ATM..E; CR31,YR30..ATM..Q199309-199401

main74310-28630-E0iCR31,YR30..ATM..07S; CR31,YR30..ATM..E199309-199401

main74310-28631-B0iCR31,YR30..ATM..E; CR31,YR30..ATM..Q199401-199506

main74310-28631-E0iCR31,YR30..ATM..07S; CR31,YR30..ATM..E199401-199506

main74310-28632-B0iCR31,YR30..ATM..E; CR31,YR30..ATM..Q199506-199610

main74310-28632-E0iCR31,YR30..ATM..07S; CR31,YR30..ATM..E199506-199610

main74310-28640-B0iCR22,YR21..E; CR22,YR21..Q199309-199401

main74310-28640-E0iCR22,YR21..07S; CR22,YR21..E199309-199401

main74310-28641-B0iCR22,YR21..E; CR22,YR21..Q199401-199506

main74310-28641-E0iCR22,YR21..07S; CR22,YR21..E199401-199506

main74310-28642-B0iCR22,YR21..E; CR22,YR21..Q199506-199610

main74310-28642-E0iCR22,YR21..07S; CR22,YR21..E199506-199610

main74310-28650-B0iCR31..MTM..07S; CR31..MTM..E199309-199401

main74310-28650-E0iCR31..MTM..07S; CR31..MTM..E199309-199401

main74310-28651-B0iCR31..MTM..07S; CR31..MTM..E199401-199506

main74310-28651-E0iCR31..MTM..07S; CR31..MTM..E199401-199506

main74310-28652-B0iCR31..MTM..07S; CR31..MTM..E199506-199610

main74310-28652-E0iCR31..MTM..07S; CR31..MTM..E199506-199610

main74310-28660-B0iCR31,YR30..ATM..Q; CR31..ATM..E; YR30..08S199309-199401

main74310-28660-E0iCR31,YR30..ATM..07S; CR31..ATM..E; YR30..08S199309-199401

main74310-28661-B0iCR31,YR30..ATM..Q; CR31..ATM..E; YR30..08S199401-199506

main74310-28661-E0iCR31,YR30..ATM..07S; CR31..ATM..E; YR30..08S199401-199506

main74310-28662-B0iCR31,YR30..ATM..Q; CR31..ATM..E; YR30..08S199506-199610

main74310-28662-E0iCR31..ATM..E; YR30..08S199508-199610

main74310-28670-B0iCR22,YR21..Q; CR22..E; YR21..HRF..08S199309-199401

main74310-28670-E0iCR22,YR21..07S; CR22..E; YR21..HRF..08S199309-199401

main74310-28671-B0iCR22,YR21..Q; CR22..E; YR21..HRF..08S199401-199506

main74310-28671-E0iCR22,YR21..07S; CR22..E; YR21..HRF..08S199401-199506

main74310-28672-B0iCR22,YR21..Q; CR22..E; YR21..HRF..08S199506-199610

main74310-28672-E0iCR22,YR21..07S; CR22..E; YR21..HRF..08S199506-199610

main74310-28690-B1iCR3#..MTM..(02S,05S,08S)199309-199401

LIGHT GRAY,TRIM1#

main74310-28691-B1iCR3#..MTM..(02S,05S,08S)199401-199506

LIGHT GRAY,TRIM1#

main74310-28691-E1iCR31..MTM..E199401-199506

LIGHT GREIGE,TRIM4#

main74310-28692-B1iCR3#..MTM..(02S,05S,08S)199506-199610

LIGHT GRAY,TRIM1#

main74310-28692-E1iCR31..MTM..E199506-199610

LIGHT GREIGE,TRIM4#

main74310-28700-B1iCR3#,YR30..ATM..(05S,08S)199309-199401

LIGHT GRAY,TRIM1#

main74310-28700-E1iCR31,YR30..ATM..E199309-199401

LIGHT GREIGE,TRIM4#

main74310-28701-B1iCR3#,YR30..ATM..(05S,08S)199401-199506

LIGHT GRAY,TRIM1#

main74310-28701-E1iCR31,YR30..ATM..E199401-199506

LIGHT GREIGE,TRIM4#

main74310-28702-B1iCR3#,YR30..ATM..(05S,08S)199506-199610

LIGHT GRAY,TRIM1#

main74310-28702-E1iCR31,YR30..ATM..E199506-199610

LIGHT GREIGE,TRIM4#

main74310-28710-B1iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199309-199401

LIGHT GRAY,TRIM1#

main74310-28710-E1iCR22,YR21..E199309-199401

LIGHT GREIGE,TRIM4#

main74310-28711-B1iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199401-199506

LIGHT GRAY,TRIM1#

main74310-28711-E1iCR22,YR21..E199401-199506

LIGHT GREIGE,TRIM4#

main74310-28712-B1iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199506-199610

LIGHT GRAY,TRIM1#

main74310-28712-E1iCR22,YR21..E199506-199610

LIGHT GREIGE,TRIM4#

74320VISOR ASSY, LH

main74320-28250-B0iCR21,30,YR21,30..E; CR21,30,YR21,30..Q199201-199309

main74320-28250-E0iCR21,30,YR21,30..07S; CR21,30,YR21,30..E199201-199309

main74320-28280-B0iCR2#,3#,KR27,YR2#,30..02S,03S,05S,06S,08S199201-199401

LIGHT GRAY,TRIM1#

main74320-28280-E0iCR21,22,30,31,YR21,30..E199201-199401

LIGHT GREIGE,TRIM4#

main74320-28281-B0iCR2#,3#,KR27,YR2#,30..02S,03S,05S,06S,08S199401-199610

LIGHT GRAY,TRIM1#

main74320-28281-E0iCR22,31,YR21,30..E199401-199610

LIGHT GREIGE,TRIM4#

main74320-28340-B0iCR22,31,YR21,30..Q; CR22,31..E; YR21,30..HRF..08S199309-199401

main74320-28340-E0iCR22,31,YR21,30..07S; CR22,31..E; YR21,30..HRF..08S199309-199401

main74320-28341-B0iCR22,31,YR21,30..Q; CR22,31..E; YR21,30..HRF..08S199401-199610

main74320-28341-E0iCR22,31,YR21,30..07S; CR22,31..E; YR21,30..HRF..08S199401-199610

74348HOLDER, VISOR

main74348-32010-B1×2iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

LIGHT GRAY,TRIM1#

main74348-32010-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74603-16010-B1×2iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199511-199610

GRAY,TRIM1#

main74603-16010-E0×2iCR22,31,YR21,30..E,Q,Z199511-199610

GREIGE,TRIM4#

main74610-12030-B1×2iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199405

GRAY,TRIM1#

main74610-12030-E0×2iCR22,31,YR21,30..E,Q,Z199408-199511

GREIGE,TRIM4#

main74610-16020-B1×2iCR21,22,30,31,YR21,30..E,Q199201-199408

LIGHT GRAY,TRIM1#

main74610-16020-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

LIGHT GREIGE,TRIM4#

74617APLUG, ASSIST GRIP

main74617-16010-41×4iCR2#,3#,KR27,YR2#..B,D,F,N199201-199308

LIGHT GRAY,TRIM1#

main74617-16010-B8×4iCR2#,3#,KR27,YR2#..B,D,F,G,N199308-199405

LI. GRAY,TRIM1#

main74617-16010-E4×4iCR22,31,YR21,30..E,Q,Z199408-199610

LIGHT GREIGE,TRIM4#

main74617-16020-B1×4iCR21,22,30,31,YR21,30..E,Q199201-199408

LIGHT GRAY,TRIM1#

main74617-16020-E0×4iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

LIGHT GREIGE,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-14010-B1×4iCR21,22,30,31,YR21,30..08S; CR28,29,37,38199201-199610

LIGHT GRAY,TRIM1#

main74617-14010-E0×8iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main74617-28020-B0×8iCR21,22,30,31,YR21,30..E; CR21,22,30,31,YR21,30..Q199201-199610

main74617-28020-E0×8iCR21,22,30,31,YR21,30..07S; CR21,22,30,31,YR21,30..E199201-199610

74620BGRIP ASSY, ASSIST, REAR

main74610-10020-B0×2iCR21,22,30,31,YR21,30..08S; CR28,29,37,38199201-199610

LIGHT GRAY,TRIM1#

main74610-10020-E0×4iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main74610-28010-B0×4iCR21,22,30,31,YR21,30..E; CR21,22,30,31,YR21,30..Q199201-199610

main74610-28010-E0×4iCR21,22,30,31,YR21,30..07S; CR21,22,30,31,YR21,30..E199201-199610

74810PULL ASSY, DOOR, INSIDE

main74811-12040-B0×2iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199307

GRAY,TRIM1#

main74811-12040-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

9046709149

main90467-09149

9321945014

main93219-45014

9323945014

main93239-45014

9331116020

main93311-16020

9331116025

main93311-16025

9356054014

main93560-54014

17 parts on this diagram · 1 diagram in section
