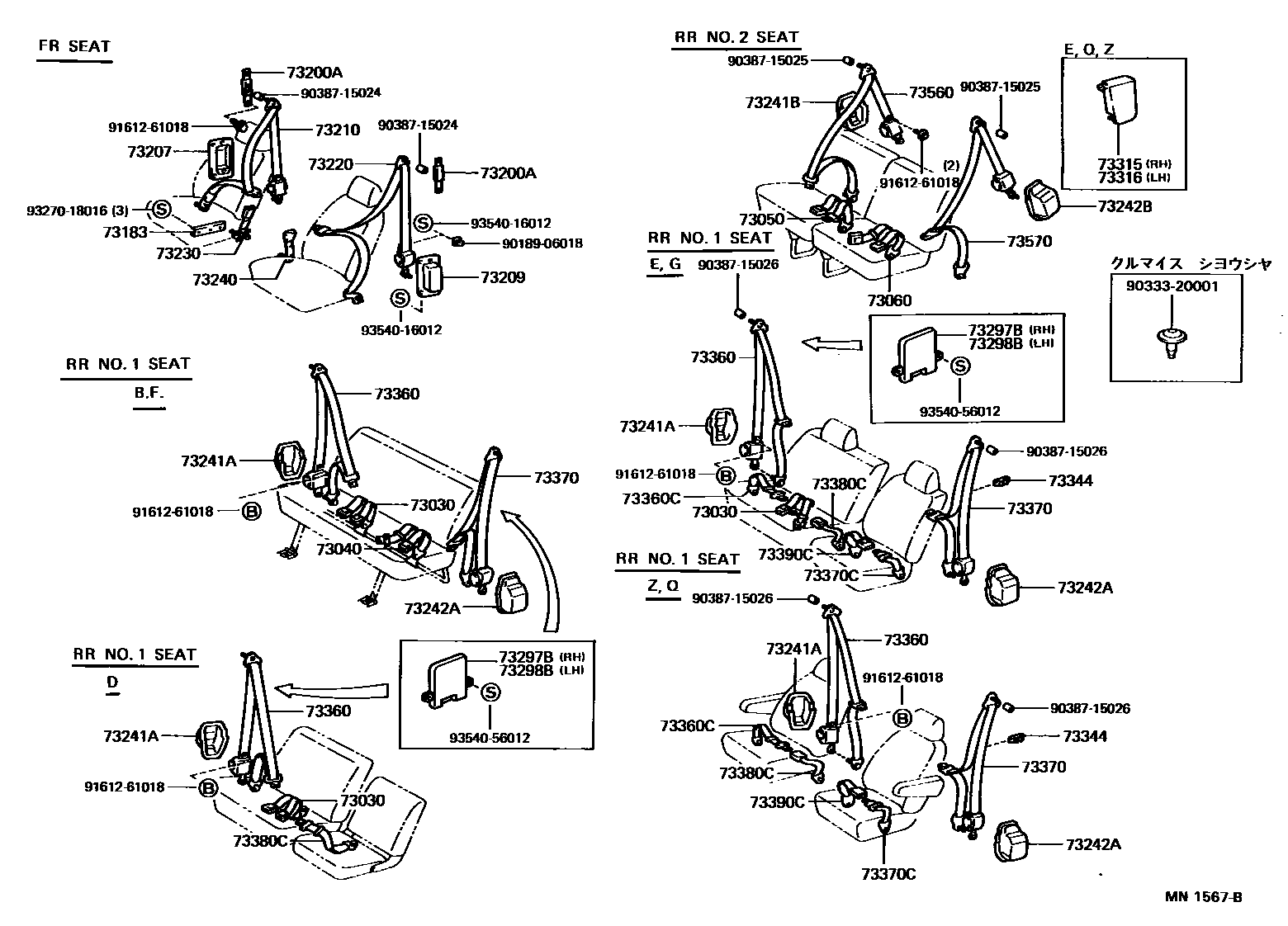

SEAT BELT

0001 1 0003 1

73030BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH

main73030-28030-B0iCR27,KR27,YR25..(05S,06S)..V2199201-199610

GRAY,TRIM1#

main73030-28040-B0iCR21,22,30,31,YR21,30..E,G199201-199610

GRAY,TRIM1#

main73030-28040-E0iCR21,22,30,31,YR21,30..E199201-199610

GREIGE,TRIM4#

main73030-28050-B0iCR21,22,30,31,YR21..D199201-199610

GRAY,TRIM1#

main73030-28060-B0iKR27..5D..05S..V1;CR28,29,36,37,38..05S;CR27,YR25..(05S,06S)..V1199201-199610

GRAY,TRIM1#

main73030-28080-B0iKR27..D..(05S,06S)..V1199201-199610

GRAY,TRIM1#

73040BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH

main73040-28040-B0iCR27,KR27,YR25..(05S,06S)..V2199201-199610

GRAY,TRIM1#

main73040-28050-B0iKR27..5D..05S..V1;CR28,29,36,37,38..05S;CR27,YR25..(05S,06S)..V1199201-199610

GRAY,TRIM1#

main73040-28070-B0iKR27..D..(05S,06S)..V1199201-199610

GRAY,TRIM1#

73050BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER RH

main73050-28030-B0iCR21,22,30,31,YR21,30..D,E,G,Q199201-199610

GRAY,TRIM1#

main73050-28030-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

main73580-28090-B0iCR22,31,YR21,30..E199508-199610

main73580-28090-E0iCR22,31,YR21,30..E199508-199610

73060BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER LH

main73060-28030-B0iCR21,22,30,31,YR21,30..D,E,G,Q199201-199610

GRAY,TRIM1#

main73060-28030-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73183GUIDE, FRONT SEAT LAP BELT, INNER

main73183-87001iCR2#,3#,KR27,YR2#,30..02S,05S,07S,08S199201-199610

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-28010-E0×2iCR21,22,30,31,YR21,30..Z199201-199610

LIGHT GREIGE,TRIM4#

73207COVER SUB-ASSY, SEAT BELT RETRACTOR, RH

main73207-28010iCR2#,3#,KR27,YR2#,30199201-199610

73209COVER SUB-ASSY, SEAT BELT RETRACTOR, LH

main73209-28020iCR2#,3#,KR27,YR2#,30199201-199212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-28170-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199405

GRAY,TRIM1#

main73210-28170-E0iCR21,22,30,31,YR21,30..E,Q199201-199405

GREIGE,TRIM4#

main73210-28171-B0iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199405-199610

GRAY,TRIM1#

main73210-28171-E0iCR22,31,YR21,30..E,Q199405-199610

GREIGE,TRIM4#

main73210-28190-E0iCR21,22,30,31,YR21,30..Z199201-199405

GREIGE,TRIM4#

main73210-28191-E0iCR22,31,YR21,30..Z199405-199610

GREIGE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-28170-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199405

GRAY,TRIM1#

main73220-28170-E0iCR21,22,30,31,YR21,30..E,Q199201-199405

GREIGE,TRIM4#

main73220-28171-B0iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199405-199610

GRAY,TRIM1#

main73220-28171-E0iCR22,31,YR21,30..E,Q199405-199610

GREIGE,TRIM4#

main73220-28190-E0iCR21,22,30,31,YR21,30..Z199201-199405

GREIGE,TRIM4#

main73220-28191-E0iCR22,31,YR21,30..Z199405-199610

GREIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-28130-B0iKR27,YR25..MTM..D199201-199203

GRAY,TRIM1#

main73230-28131-B0iKR27,YR25..MTM..D199203-199405

GRAY,TRIM1#

main73230-28132-B0iKR27,YR25..MTM..D199405-199610

GRAY,TRIM1#

main73230-28140-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,F,N,Q)..(02S,05S,07S,08S)199201-199203

GRAY,TRIM1#

main73230-28140-E0iCR21,30,YR21,30..E,Q,Z199201-199203

GREIGE,TRIM4#

main73230-28141-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,F,G,N,Q)..(02S,05S,07S,08S)199203-199405

GRAY,TRIM1#

main73230-28141-E0iCR21,22,30,31,YR21,30..E,Q,Z199203-199405

GREIGE,TRIM4#

main73230-28142-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,G,N,Q)..(02S,05S,07S,08S)199405-199610

GRAY,TRIM1#

main73230-28142-E0iCR22,31,YR21,30..E,Q,Z199405-199610

GREIGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-28090-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,F,N,Q)..(02S,05S,07S,08S)199201-199203

GRAY,TRIM1#

main73240-28090-E0iCR21,30,YR21,30..E,Q,Z199201-199203

GREIGE,TRIM4#

main73240-28091-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,F,G,N,Q)..(02S,05S,07S,08S)199203-199405

GRAY,TRIM1#

main73240-28091-E0iCR21,22,30,31,YR21,30..E,Q,Z199203-199405

GREIGE,TRIM4#

main73240-28092-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,G,N,Q)..(02S,05S,07S,08S)199405-199610

GRAY,TRIM1#

main73240-28092-E0iCR22,31,YR21,30..E,Q,Z199405-199610

GREIGE,TRIM4#

73241ACASE, SEAT BELT RETRACTOR, RH

main73241-28060iCR27,KR27..4D..(05S,06S)..V1;CR21,28,3#,YR2#,30..4D..(05S,06S,07S,08S)199201-199212

main73241-28070iCR27,36,KR27,YR25..5D..(05S,06S)..V1; CR28,29,37,38..5D199212-199610

73241BCASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT)

main73241-28050iCR21,22,30,31,YR21,30199212-199610

73242ACASE, SEAT BELT RETRACTOR, LH

main73242-28060iCR21,28,30,37,YR21,30..B,E,F,Q,Z;CR27,36,KR27,YR25..(05S,06S)..V1199201-199212

73242BCASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT)

main73242-28040iCR21,30,YR21,30199201-199212

73297BCOVER, QUARTER TRIM BELT HOLE, RH

main73297-28030-B0iCR27,KR27,YR25..(05S,06S)..V1;CR21,22,28,29,3#,YR21..(B,D,F,G,N)..(05S,08S)199201-199610

GRAY,TRIM1#

73298BCOVER, QUARTER TRIM BELT HOLE, LH

main73298-28040-B0iCR22,28,29,31,37,38..B,F,G;CR27,36,KR27,YR25..(05S,06S)..V1199201-199610

GRAY,TRIM1#

73315COVER, RR SEAT BELT, INNER RH

main73315-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main73315-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

73316COVER, RR SEAT BELT, INNER LH

main73316-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main73316-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73343-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-28210-B0iCR27,KR27..4D..(05S,06S)..V1;CR21,22,28,29,3#,YR2#,30..(B,D,E,G,N,Q)..4D..(05S,06S,07S,08S)199201-199610

GRAY,TRIM1#

main73360-28210-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

main73360-28230-B0iCR28,29,36,37,38..5D..05S;CR27,KR27,YR25..5D..(05S,06S)..V1199201-199610

GRAY,TRIM1#

main73360-28240-B0iCR27,KR27,YR25..(05S,06S)..V2199201-199610

GRAY,TRIM1#

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-28220-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199610

GRAY,TRIM1#

main73360-28220-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-28240-B0iCR27,KR27,YR25..(05S,06S)..V2199201-199610

GRAY,TRIM1#

main73370-28180-B0iCR27,36,KR27,YR25..(05S,06S)..V1;CR21,22,28,29,30,31,37,38,YR21,30..B,E,F,G,Q199201-199610

GRAY,TRIM1#

main73370-28180-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73360-28220-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199610

GRAY,TRIM1#

main73360-28220-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73380CBELT ASSY, REAR NO.1 SEAT, INNER RH

main73340-28090-B0iCR21,22,30,31,YR21,30..E,G199201-199610

GRAY,TRIM1#

main73340-28090-E0iCR21,22,30,31,YR21,30..E199201-199610

GREIGE,TRIM4#

main73340-28100-B0iCR21,22,30,31,YR21..D199201-199610

GRAY,TRIM1#

main73380-28160-B0iCR21,22,30,31,YR21,30..Q199201-199610

GRAY,TRIM1#

main73380-28160-E0iCR21,22,30,31,YR21,30..07S199201-199610

GREIGE,TRIM4#

73390CBELT ASSY, REAR NO.1 SEAT, INNER LH

main73380-28160-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199610

GRAY,TRIM1#

main73380-28160-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73560BELT ASSY, REAR NO.2 SEAT, OUTER RH

main73560-28140-B0iCR21,22,30,31,YR21,30..D,E,G,Q199201-199610

GRAY,TRIM1#

main73560-28140-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

73570BELT ASSY, REAR NO.2 SEAT, OUTER LH

main73570-28140-B0iCR21,22,30,31,YR21,30..D,E,G,Q199201-199610

GRAY,TRIM1#

main73570-28140-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

9018906018

main90189-06018

9033320001

main90333-20001

9038715024

main90387-15024

9038715025

main90387-15025

9038715026

main90387-15026

9161261018

main91612-61018

9327018016

main93270-18016

9354016012

main93540-16012

9354056012

main93540-56012

38 parts on this diagram · 2 diagrams in section
