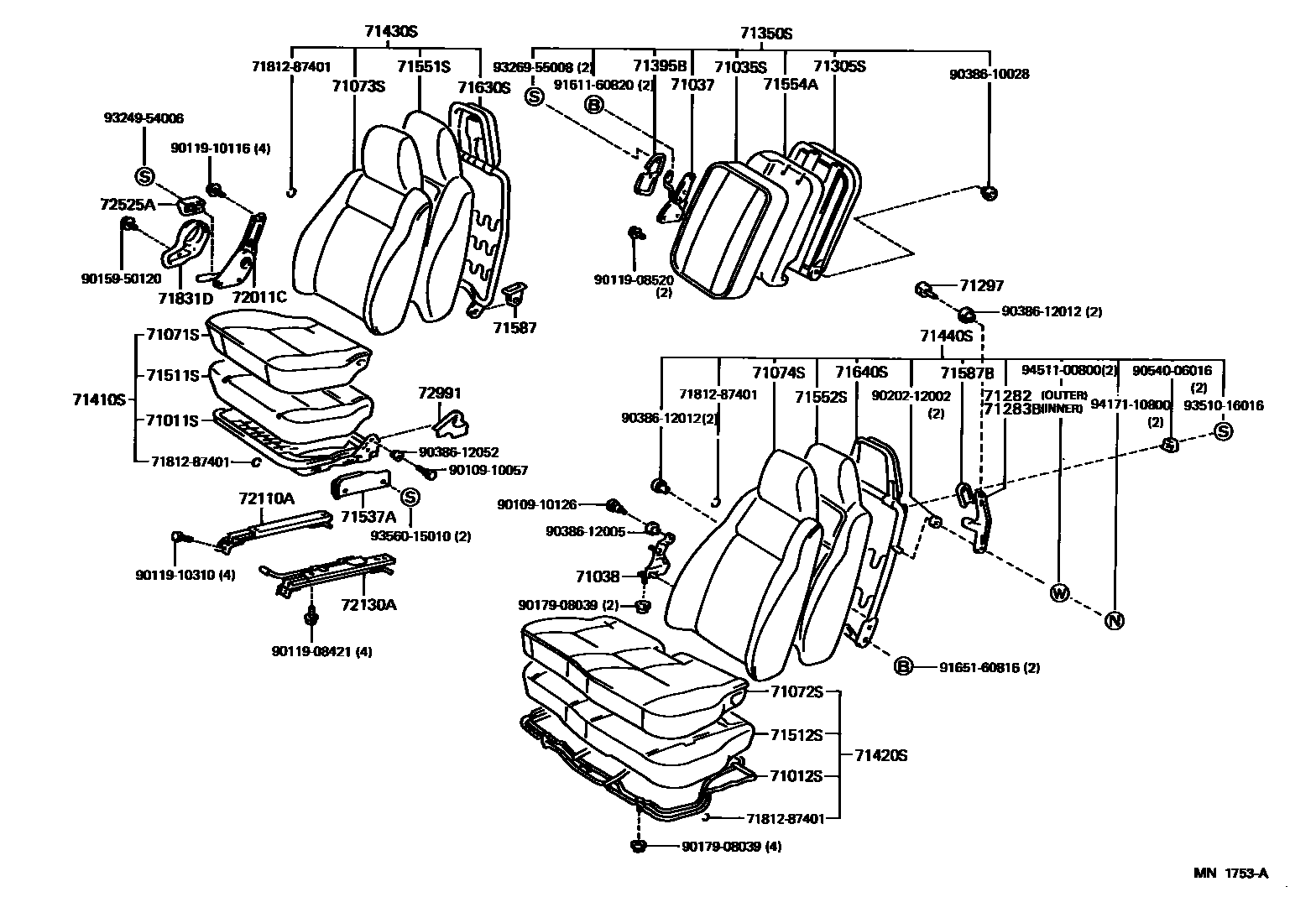

SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71035SCOVER, FRONT SEATBACK, CENTER
71037HINGE SUB-ASSY, CENTER SEATBACK, RH
71038HINGE SUB-ASSY, CENTER SEATBACK, LH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71282SUPPORT, FRONT SEATBACK, LH OUTER
71283BSUPPORT, FRONT SEATBACK, LH INNER
71297PIN, PASSENGER SEATBACK SUPPORT
71305SFRAME SUB-ASSY, CENTER SEATBACK
71350SBACK ASSY, FRONT SEAT, CENTER
71395BCOVER, CENTER SEAT HINGE, RH
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71554APAD, FRONT SEATBACK, CENTER
71587BPROTECTOR, FRONT SEATBACK EDGE
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71831DCOVER, FRONT SEAT HINGE, RH
72011CADJUSTER SUB-ASSY, FRONT SEAT, RH
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72130ATRACK ASSY, FRONT SEAT, INNER RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
72991COVER, FRONT SEAT CUSHION, RH
7181287401CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-87401
9010910057
main90109-10057
9010910126
main90109-10126
9011908421
main90119-08421
9011908520
main90119-08520
9011910116
main90119-10116
9011910310
main90119-10310
9015950120
main90159-50120
9017908039
main90179-08039
9020212002
main90202-12002
9038610028
main90386-10028
9038612005
main90386-12005
9038612012
main90386-12012
9038612052
main90386-12052
9054006016
main90540-06016
9161160820
main91611-60820
9165160816
main91651-60816
9324954006
main93249-54006
9326955008
main93269-55008
9351016016
main93510-16016
9356015010
main93560-15010
9417110800
main94171-10800
9451100800
main94511-00800
58 parts on this diagram · 11 diagrams in section
