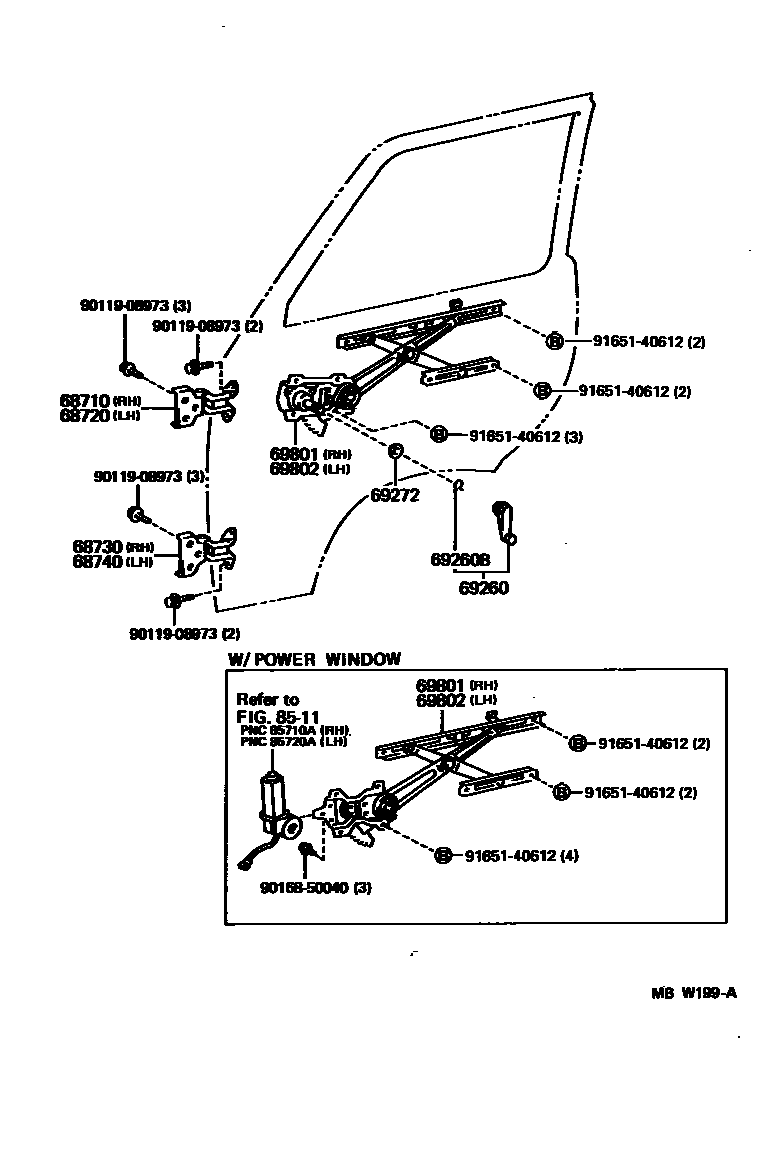

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-28020iCR2#,3#,KR27,YR2#,30199201-199309

main68710-28030iCR2#,3#,KR27,YR2#,30199309-199610

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-28020iCR2#,3#,KR27,YR2#,30199201-199309

main68720-28030iCR2#,3#,KR27,YR2#,30199309-199610

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-28020iCR2#,3#,KR27,YR2#,30199201-199610

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-28020iCR2#,3#,KR27,YR2#,30199201-199610

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-08×2iCR2#,3#,KR27,YR2#..B,D,F,N199201-199308

BLUISH GRAY,TRIM1#

main69260-10040-B1×2iCR2#,3#,KR27,YR2#..B,D,F,G,N199308-199610

BLUISH GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

main69810-28010iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28010iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

main69820-28010iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908973

main90119-08973

9016850040

main90168-50040

9165140612

main91651-40612

13 parts on this diagram · 1 diagram in section
