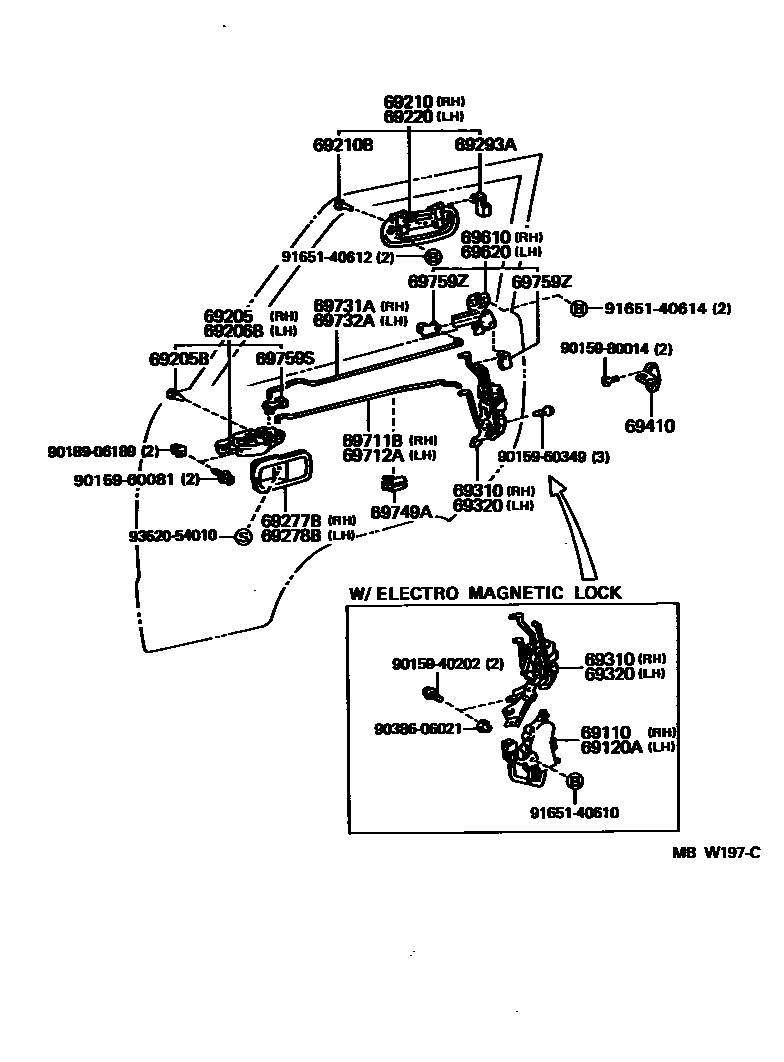

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-28010iCR21,22,30,31,YR21,30..E,G,Q,Z199201-199610

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-28010iCR21,22,30,31,YR21,30..Z199201-199610

main69120-28020iCR21,22,30,31,YR21,30..E,G,Q199201-199610

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-26010-B0iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199309-199610

BLUISH GRAY,TRIM1#

sub69205-26010

main69205-26010-E1iCR22,31,YR21,30..E,Q,Z199309-199610

GRAIGE,TRIM4#

sub69205-26010

main69205-95J00-03iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199309

GRAY,TRIM1#

sub69205-60030

main69205-95J00-E0iCR21,30,YR21,30..E,Q,Z199201-199309

GREIGE,TRIM4#

sub69205-60030

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iCR2#,3#,KR27,YR2#,30199201-199306

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-26010-B0iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199309-199610

BLUISH GRAY,TRIM1#

sub69206-26010

main69206-26010-E1iCR22,31,YR21,30..E,Q,Z199309-199610

GRAIGE,TRIM4#

sub69206-26010

main69206-95J00-03iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199309

GRAY,TRIM1#

main69206-95J00-E0iCR21,30,YR21,30..E,Q,Z199201-199309

GREIGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-28030iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

main69210-28040-B0iCR21,30,YR21,30..E199304-199308

main69210-28040-B1iCR22,31,YR21,30..E199512-199610

main69210-28040-B1iCR22,31,YR21,30..Z199408-199610

WARM GRAY OP,25Y

main69210-28040-B2iCR22,31,YR21,30..E199512-199610

main69210-28040-D0iCR22,31,YR21,30..E199401-199404

main69210-28040-E1iCR21,22,30,31,YR21,30..Z199201-199408

GRAYISH BROWN MICA M,23U

main69210-28040-E1iCR22,31,YR21,30..E199401-199408

main69210-28040-G0iCR22,31,YR21,30..E199404-199407

main69210-28040-G0iCR22,31,YR21,30..E199512-199610

main69210-28040-H0iCR22,31,YR21,30..E199412-199508

main69210-28040-J0iCR21,30,YR21,30..E199305-199307

main69210-28040-J1iCR22,31,YR21,30..E199412-199508

main69210-28050iCR21,30,YR21,30..E199210-199302

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iCR2#,3#,KR27,YR2#,30199201-199610

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-28030iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

main69220-28040-B0iCR21,30,YR21,30..E199304-199308

main69220-28040-B1iCR22,31,YR21,30..Z199408-199610

WARM GRAY OP,25Y

main69220-28040-B2iCR22,31,YR21,30..E199512-199610

main69220-28040-D0iCR22,31,YR21,30..E199401-199404

main69220-28040-E1iCR22,31,YR21,30..E199401-199408

main69220-28040-E1iCR21,22,30,31,YR21,30..Z199201-199408

GRAYISH BROWN MICA M,23U

main69220-28040-G0iCR22,31,YR21,30..E199512-199610

main69220-28040-G0iCR22,31,YR21,30..E199404-199407

main69220-28040-H0iCR22,31,YR21,30..E199412-199508

main69220-28040-J0iCR21,30,YR21,30..E199305-199307

main69220-28040-J1iCR22,31,YR21,30..E199412-199508

main69220-28050iCR21,30,YR21,30..E199210-199302

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-28010-B0iCR21,27,3#,YR21,30..B,D,E,Q199201-199610

GRAY,TRIM1#

sub69277-28010

main69277-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub69277-28010

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-28010-B0iCR30,36..D,E,Q;CR21,28,37,YR21,30..B,E,Q199201-199610

GRAY,TRIM1#

sub69278-28010

main69278-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub69278-28010

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCR2#,3#,KR27,YR2#,30199201-199610

WHITE

main69293-12040iCR2#,3#,KR27,YR2#,30199201-199610

69310LOCK ASSY, FRONT DOOR, RH

main69310-28040iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

main69310-28050iCR22,31..G199309-199610

main69310-28050iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

69320LOCK ASSY, FRONT DOOR, LH

main69320-28040iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

main69320-28050iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

main69320-28050iCR22,31..G199309-199610

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iCR2#,3#,KR27,YR2#,30199201-199610

69610CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, RH

main69610-28010iCR2#,3#,KR27,YR2#,30199201-199610

69620CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, LH

main69620-28010iCR2#,3#,KR27,YR2#,30199201-199610

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-28010iCR2#,3#,KR27,YR2#,30199201-199610

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-28010iCR2#,3#,KR27,YR2#,30199201-199610

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-28010iCR2#,3#,KR27,YR2#,30199201-199610

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-28010iCR2#,3#,KR27,YR2#,30199201-199610

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50020iCR2#,3#,KR27,YR2#,30199201-199610

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iCR2#,3#,KR27,YR2#,30199201-199610

PINK

main69759-24070iCR2#,3#,KR27,YR2#,30199201-199610

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-24030iCR2#,3#,KR27,YR2#,30199201-199610

main69759-24040iCR2#,3#,KR27,YR2#,30199201-199610

BLACK & PINK

9015940202

main90159-40202

9015960081

main90159-60081

9015960349

main90159-60349

9015980014

main90159-80014

9018906189

main90189-06189

9038606021

main90386-06021

9165140610

main91651-40610

9165140612

main91651-40612

9165140614

main91651-40614

9352054010

main93520-54010

33 parts on this diagram · 1 diagram in section
