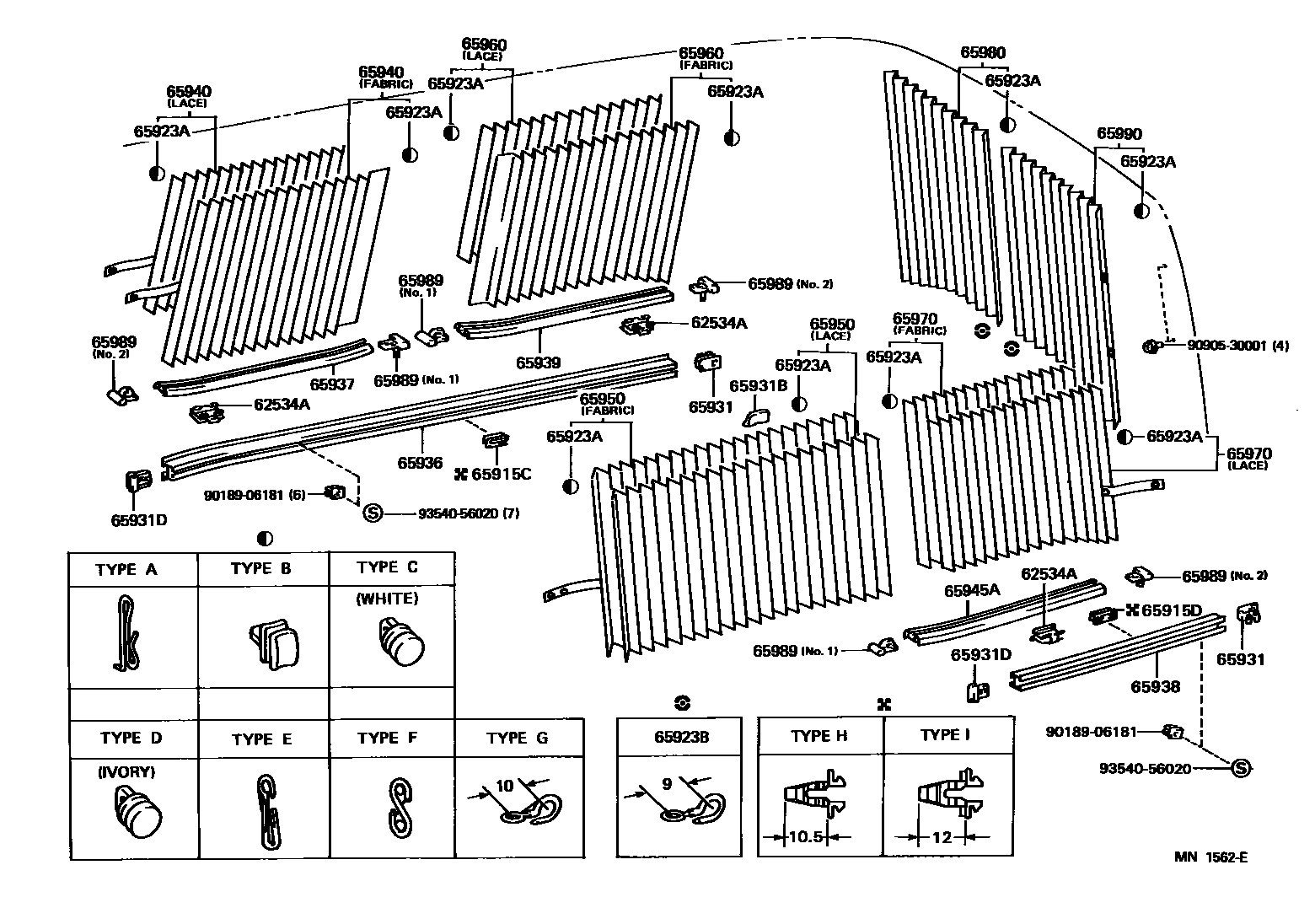

ROOM CURTAIN & ROOM RACK

62534ABRACKET, QUARTER TRIM BASE, UPPER

main62534-28050-B0×11iCR21,22,30,31,YR21,30..Q199201-199408

LIGHT GRAY,TRIM1#

main62534-28050-E0×11iCR21,22,30,31,YR21,30..07S199201-199408

LIGHT GREIGE,TRIM4#

main62534-28070×11iCR22,31,YR21,30..07S199408-199610

65915CBRACKET, CURTAIN RAIL, RH

main65915-28110×6iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

TYPE H

main65915-28140×5iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

TYPE I

65915DBRACKET, CURTAIN RAIL, LH

main65915-28110×4iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

TYPE H

main65915-28140×3iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

TYPE I

65923AHOOK, CURTAIN, NO.1

main65923-28030×6iCR22,31,YR21,30..E,Q,Z199309-199610

main65923-95J19×39iCR21,30,YR21,30..07S199301-199309

main65923-95J22×6iCR22,31,YR21,30..E,Q,Z199309-199610

main65923-95J23-A0×22iCR22,31,YR21,30..E,Q; CR22,31,YR21,30..Z199309-199610

main65923-95J24×31iCR22,31,YR21,30..E199309-199610

main65923-95J25×38iCR21,30,YR21,30..07S199201-199309

main65923-95J28×6iCR21,30,YR21,30..07S199211-199309

TYPE G

65923BHOOK, CURTAIN, NO.2

main65923-87005×2iCR22,31,YR21,30..E,Q,Z199309-199610

65931COVER, CURTAIN RAIL

main65931-28010-B0×2iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main65931-28010-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

65931BCOVER, CURTAIN RAIL, NO.1

main65931-28070-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main65931-28070-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

65931DCOVER, CURTAIN RAIL

main65931-95J00-B8×2iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main65931-95J00-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

65936RAIL, CURTAIN, NO.1

main65936-28010iCR22,31,YR21,30..E,Q199309-199610

main65936-28030-B0iCR22,31,YR21,30..Q199309-199408

SILVER,TRIM1#

main65936-28030-E0iCR21,22,30,31,YR21,30..07S199201-199408

GREIGE,TRIM4#

main65936-28040iCR22,31,YR21,30..E; CR22,31,YR21,30..Q199309-199610

65937RAIL, CURTAIN, NO.2

main65937-28040-B0iCR21,22,30,31,YR21,30..Q199201-199408

SILVER,TRIM1#

main65937-28040-E0iCR21,22,30,31,YR21,30..07S199201-199408

GREIGE,TRIM4#

main65937-28050iCR22,31,YR21,30..07S199408-199610

65938RAIL, CURTAIN, NO.3

main65938-28010iCR22,31,YR21,30..E,Q199309-199610

main65938-28020-B0iCR21,30,YR21,30..Q199201-199210

SILVER,TRIM1#

main65938-28020-E0iCR21,22,30,31,YR21,30..07S199201-199408

GREIGE,TRIM4#

main65938-28030iCR22,31,YR21,30..E; CR22,31,YR21,30..Q199309-199610

65939RAIL, CURTAIN, NO.4

main65939-28010-B0iCR21,22,30,31,YR21,30..Q199201-199408

SILVER,TRIM1#

main65939-28010-E0iCR21,22,30,31,YR21,30..07S199201-199408

GREIGE,TRIM4#

main65939-28020iCR22,31,YR21,30..07S199408-199610

65940CURTAIN ASSY, SIDE, FRONT RH

main65940-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#,FABRIC

main65940-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#,FABRIC

main65940-28021-B0iCR21,22,30,31,YR21,30..Q199211-199610

LIGHT GRAY,TRIM1#,FABRIC

main65940-28021-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

main65940-28030-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199201-199301

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65940-28031-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199301-199309

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65940-28040-A0iCR22,31,YR21,30..Q; CR22,31,YR21,30..Z199309-199610

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

65945ARAIL, CURTAIN, NO.5

main65945-28010-B0iCR21,22,30,31,YR21,30..Q199201-199408

SILVER,TRIM1#

main65945-28010-E0iCR21,22,30,31,YR21,30..07S199201-199408

GREIGE,TRIM4#

main65945-28020iCR22,31,YR21,30..07S199408-199610

65950CURTAIN ASSY, SIDE, FRONT LH

main65950-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#,FABRIC

main65950-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#,FABRIC

main65950-28021-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main65950-28021-E0iCR21,22,30,31,YR21,30..07S199211-199610

LIGHT GREIGE,TRIM4#,FABRIC

main65950-28030-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199201-199301

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65950-28031-A0iCR21,22,30,31,YR21,30..Q; CR21,22,30,31,YR21,30..Z199301-199610

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

65960CURTAIN ASSY, SIDE, REAR RH

main65960-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#,FABRIC

main65960-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#,FABRIC

main65960-28021-B0iCR21,22,30,31,YR21,30..Q199211-199610

LIGHT GRAY,TRIM1#,FABRIC

main65960-28021-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

main65960-28030-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199201-199211

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65960-28031-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199211-199309

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65960-28040-A0iCR22,31,YR21,30..Q; CR22,31,YR21,30..Z199309-199610

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

65970CURTAIN ASSY, SIDE, REAR LH

main65970-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#,FABRIC

main65970-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#,FABRIC

main65970-28021-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main65970-28021-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

main65970-28030-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199201-199211

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65970-28031-A0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199211-199309

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

main65970-28040-A0iCR22,31,YR21,30..Q; CR22,31,YR21,30..Z199309-199610

WHITE,TRIM1#,4#,LACE; WHITE,TRIM4#,LACE

65980CURTAIN ASSY, BACK DOOR, RH

main65980-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#

main65980-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#

main65980-28021-B0iCR22,31,YR21,30..E,Q199309-199610

LIGHT GRAY,TRIM1#

main65980-28021-E0iCR21,30,YR21,30..07S199211-199309

LIGHT GREIGE,TRIM4#

65989CAP, CURTAIN RAIL

main65989-28030-B0×3iCR21,22,30,31,YR21,30..Q199201-199610

main65989-28030-E0×3iCR21,22,30,31,YR21,30..07S199201-199610

main65989-28060-B0×3iCR21,22,30,31,YR21,30..Q199201-199610

main65989-28060-E0×3iCR21,22,30,31,YR21,30..07S199201-199610

65990CURTAIN ASSY, BACK DOOR, LH

main65990-28020-B0iCR21,30,YR21,30..Q199201-199211

LIGHT GRAY,TRIM1#

main65990-28020-E0iCR21,30,YR21,30..07S199201-199211

LIGHT GREIGE,TRIM4#

main65990-28021-B0iCR21,30,YR21,30..Q199211-199309

LIGHT GRAY,TRIM1#

main65990-28021-E0iCR22,31,YR21,30..E,Q,Z199309-199610

LIGHT GREIGE,TRIM4#

9018906181

main90189-06181

9090530001

main90905-30001

9354056020

main93540-56020

23 parts on this diagram · 1 diagram in section
