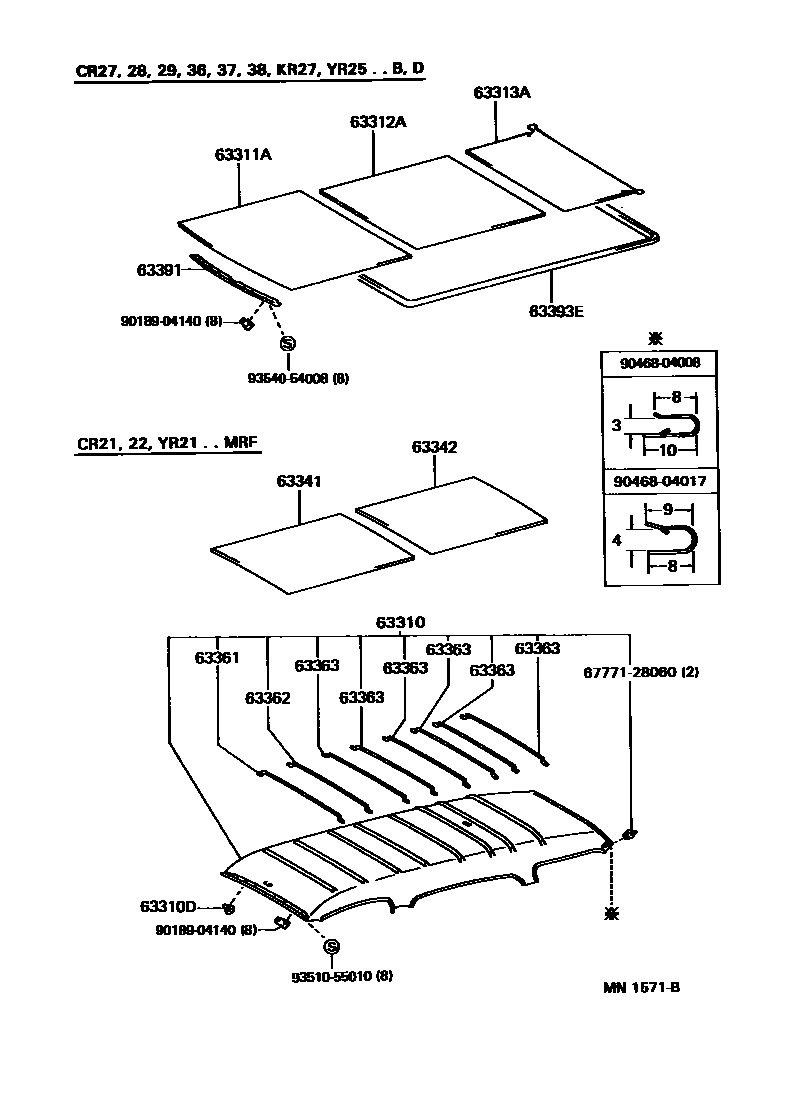

ROOF HEADLINING & SILENCER PAD

0001 1 0003 1 0005 1

63310HEADLINING ASSY, ROOF

main63310-28230-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main63310-28230-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main63310-28240-B0iCR21,22,30,31..D..HRF;CR27,YR25..N..HRF..4D199201-199610

LIGHT GRAY,TRIM1#

main63310-28250-B0iCR27,28,36,37,KR27,YR25..(F,N)..HRF..5D199201-199610

LIGHT GRAY,TRIM1#

main63310-28280-B0iCR27,YR25..N..SRF..4D199201-199610

LIGHT GRAY,TRIM1#

main63310-28290-B0iCR22,31,YR21,30..Q; CR22,31..E; YR21,30..HRF..08S199309-199610

main63310-28290-E1iCR22,31..E; YR21,30..HRF..08S199309-199610

main63310-28300-B0iCR22,31,YR21,30..E199309-199610

main63310-28300-E1iCR21,30,YR21,30..E199201-199309

main63310-28310-B0iCR22,31,YR21,30..E; CR22,31,YR21,30..Q199309-199610

main63310-28310-E1iCR22,31,YR21,30..Q; CR22,31,YR21,30..Z199508-199610

main63310-28320-B0iCR21,22,30,31,YR21,30..E; CR21,22,30,31,YR21,30..Q199201-199610

main63310-28320-E1iCR21,22,30,31,YR21,30..07S199201-199508

main63310-28330-B0iCR21,22,YR21..MRF199201-199610

LIGHT GRAY,TRIM1#

main63310-28340-B0iCR27,KR27,YR25..N..SRF..5D199201-199610

LIGHT GRAY,TRIM1#

main63310-28460-B0iCR22,31..G199309-199610

GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-07043-B1×8iCR22,31..E; YR21,30..HRF..08S199309-199610

main90467-07043-E1×8iCR22,31..E; YR21,30..HRF..08S199309-199610

main90467-10017-B0×2iCR29,38..HRF199309-199610

SW EXTRA,GRAY,TRIM1#

main90467-10017-E0×2iCR21,22,30,31,YR21,30..E199201-199610

GREIGE,TRIM4#

63311AHEADLINING, ROOF NO.1

main63311-28330-B0iCR27,28,29,36,37,38,KR27,YR25..(B,D)..HRF199201-199610

LIGHT GRAY,TRIM1#

main63311-28340-B0iCR28,29..MRF199201-199610

LIGHT GRAY,TRIM1#

main63311-28350-B0iCR27,36,KR27,YR25..D..SRF199201-199610

LIGHT GRAY,TRIM1#

63312AHEADLINING, ROOF, NO.2

main63312-28050-B0iCR27,28,29,36,37,38,KR27,YR25..(B,D)..HRF199201-199610

LIGHT GRAY,TRIM1#

main63312-28060-B0iCR28,29..MRF199201-199610

LIGHT GRAY,TRIM1#

main63312-28070-B0iCR27,36,KR27,YR25..D..SRF199201-199610

LIGHT GRAY,TRIM1#

63313AHEADLINING, ROOF, NO.3

main63313-28010-B0iCR27,28,29,36,37,38,KR27,YR25..(B,D)..HRF199201-199610

LIGHT GRAY,TRIM1#

main63313-28020-B0iCR28,29..MRF199201-199610

LIGHT GRAY,TRIM1#

main63313-28030-B0iCR27,36,KR27,YR25..D..SRF199201-199610

LIGHT GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-28030iCR27,36,KR27,YR25..N;CR21,22,28,30,31,37,YR21,30..D,E,F,G199201-199610

63342PAD, ROOF SILENCER, NO.2

main63342-28030iCR29,38..HRF199309-199610

SW EXTRA

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-87005iCR27,36,KR27,YR25..N..HRF;CR21,22,28,30,31,37,YR21,30..(D,E,F,G)..HRF199201-199610

main63361-87006iCR21,22,YR21..MRF199201-199610

main63361-87010iCR27,KR27,YR25..N..SRF199201-199203

main63364-87010iCR27,KR27,YR25..N..SRF199203-199610

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-87004iCR21,22,YR21..MRF199201-199610

main63362-87005iCR27,36,KR27,YR25..N..HRF;CR21,22,28,30,31,37,YR21,30..(D,E,F,G)..HRF199201-199610

main63362-87010iCR27,KR27,YR25..N..SRF199203-199311

main63364-87010iCR27,KR27,YR25..N..SRF199311-199610

63363SUPPORT, ROOF HEADLINING, NO.3

main63362-87010iCR27,KR27,YR25..N..SRF199404-199610

main63363-87004×6iCR21,22,YR21..MRF199201-199610

main63363-87005iCR27,36,KR27,YR25..N..HRF;CR21,22,28,30,31,37,YR21,30..(D,E,F,G)..HRF199201-199610

main63363-87010iCR27,KR27,YR25..N..SRF199201-199404

63391TRIM, ROOF HEADLINING, FRONT

main63391-87013iCR27,28,29,36,37,38,KR27,YR25..B,D199201-199610

63393ETRIM, ROOF HEADLINING

main63393-87004-B0iCR28,29..MRF199201-199610

LIGHT GRAY,TRIM1#

main63393-87005-B0iCR27,28,29,36,37,38,KR27,YR25..(B,D)..HRF199201-199610

LIGHT GRAY,TRIM1#

6777128060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28060

9018904140

main90189-04140

9046804008

main90468-04008

9046804017

main90468-04017

9351055010

main93510-55010

9354054008

main93540-54008

18 parts on this diagram · 3 diagrams in section
