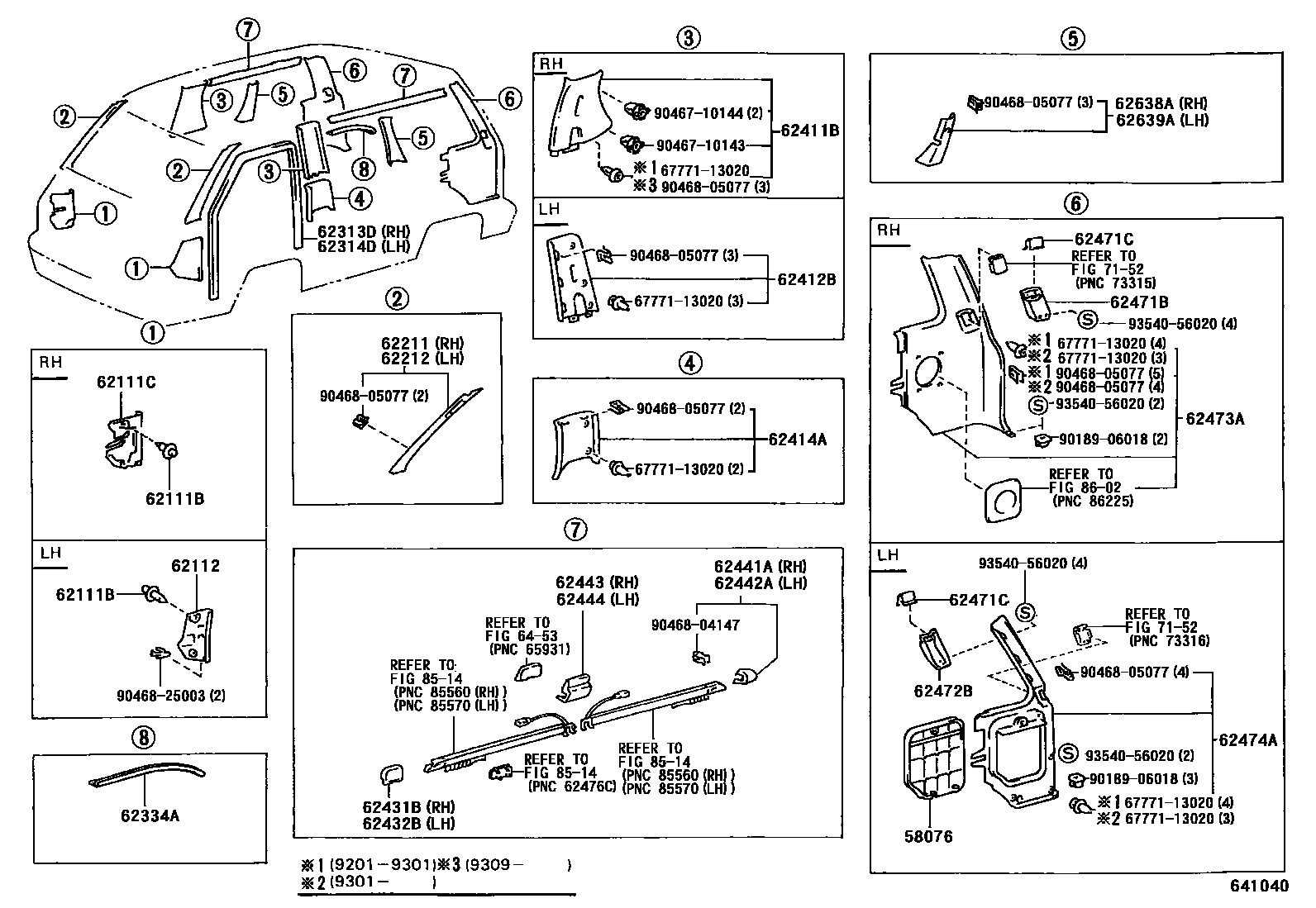

INSIDE TRIM BOARD

0001 1 0003 1 0004 1 0005 1 0006 1

58076COVER SUB-ASSY, JACK BOX HOLE

main58076-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

sub58076-28010

main58076-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

sub58076-28010

main58076-28020-B0iCR27,KR27,YR25..V1;CR21,22,28,29,3#,YR21..B,D,F,G,N199201-199610

GRAY,TRIM1#

main58076-28030-B0iCR27,KR27,YR25..V2199201-199610

GRAY,TRIM1#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-07076-B0iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub90467-07041

sub90467-07076

sub90467-A0016

62111CBOARD, COWL SIDE TRIM, RH

main62111-28020-B0iKR27,YR2#,30..D,E,N,Q199201-199610

GRAY,TRIM1#

sub62111-28020

main62111-28020-E0iYR21,30..HRF199201-199610

GREIGE,TRIM4#

sub62111-28020

main62111-28030-B0iCR2#,3#..ATM..(B,D,E,F,N,Q)199201-199610

GRAY,TRIM1#

sub62111-28030

main62111-28030-E1iCR21,30..ATM;CR22,31..E,Q,Z199201-199610

GREIGE,TRIM4#

sub62111-28030

main62111-28040-B0iCR27,36..MTM199309-199610

sub62111-28040

main62111-28040-B0iCR2#,3#..MTM199201-199610

GRAY,TRIM1#

sub62111-28040

main62111-28040-E0iCR22,31..MTM..(E,Q)199309-199610

sub62111-28040

main62111-28040-E0iCR21,30..MTM..(E,Q)199201-199309

GREIGE,TRIM4#

sub62111-28040

62112BOARD, COWL SIDE TRIM, LH

main62112-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

GRAY,TRIM1#

sub62112-28010

main62112-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub62112-28010

62211GARNISH, FRONT PILLAR, RH

main62211-28070-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main62211-28070-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

main62211-28080-B0iCR27,36,KR27,YR25..N;CR21,22,28,30,31,37,YR21..D,F,G199201-199610

LIGHT GRAY,TRIM1#

main62211-28080-B0iCR29,38..HRF199309-199610

SW EXTRA,LIGHT GRAY,TRIM1#

main62211-28090-B0iCR27,28,29,36,37,38,KR27,YR25..B,D199201-199610

LIGHT GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-28070-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main62212-28070-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

main62212-28080-B0iCR29,38..HRF199309-199610

SW EXTRA,LIGHT GRAY,TRIM1#

main62212-28080-B0iCR27,36,KR27,YR25..N;CR21,22,28,30,31,37,YR21..D,F,G199201-199610

LIGHT GRAY,TRIM1#

main62212-28090-B0iCR27,28,29,36,37,38,KR27,YR25..B,D199201-199610

LIGHT GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-28040-B0iCR21,30,YR21,30..Q199201-199309

LIGHT GRAY,TRIM1#

main62311-28040-E0iCR22,31,YR21,30..Z199201-199610

LIGHT GREIGE,TRIM4#

main62311-28060-B0iCR22,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main62311-28060-E0iCR21,30,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main62313-28030-B0iCR2#,3#,KR27,YR2#..B,D,F,N199201-199307

LIGHT GRAY,TRIM1#

sub62313-28020

main62313-28031-B0iCR2#,3#,KR27,YR2#..B,D,F,G,N199307-199408

GRAY,TRIM1#

sub62313-28021

main62313-28050iCR2#,3#,KR27,YR2#..B,D,G,N199408-199610

sub62313-28040

62314DTRIM, FRONT DOOR OPENING, LH

main62312-28040-B0iCR21,30,YR21,30..Q199201-199309

LIGHT GRAY,TRIM1#

main62312-28040-E0iCR22,31,YR21,30..Z199201-199610

LIGHT GREIGE,TRIM4#

main62312-28060-B0iCR21,30,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62312-28060-E0iCR22,31,YR21,30..E,Q199201-199610

LIGHT GREIGE,TRIM4#

main62313-28020-B0iCR2#,3#,KR27,YR2#..B,D,F,N199201-199307

LIGHT GRAY,TRIM1#

main62313-28021-B0iCR2#,3#,KR27,YR2#..B,D,F,G,N199307-199408

GRAY,TRIM1#

main62313-28040iCR2#,3#,KR27,YR2#..B,D,G,N199408-199610

62334ATRIM, REAR DOOR OPENING, LH

main62333-28010-B0iCR21,22,30,31,YR21,30..E,Q199201-199610

LIGHT GRAY,TRIM1#

main62333-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

LIGHT GREIGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-28130-E0iCR22,31,YR21,30..Z199508-199610

LIGHT GREIGE,TRIM4#

sub62411-28140

main62411-28130-E0iCR21,22,30,31,YR21,30..Z199201-199508

sub62411-28140

main62411-28140-E0iCR21,22,30,31,YR21,30..Z199201-199508

LIGHT GREIGE,TRIM4#

main62411-28150-B0iYR21,30..HRF..08S199309-199610

sub62411-28160

main62411-28150-B0iYR21,30..HRF..08S199309-199610

sub62411-28160

main62411-28150-B0iCR21,22,30,31,YR21,30..Q199201-199610

sub62411-28160

main62411-28150-E0iYR21,30..HRF..08S199309-199610

sub62411-28160

main62411-28150-E0iCR21,22,30,31,YR21,30..Q199201-199610

sub62411-28160

main62411-28150-E0iYR21,30..HRF..08S199309-199610

sub62411-28160

main62411-28160-B0iCR22,31,YR21,30..E199201-199610

main62411-28160-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

main62411-28160-E0iCR21,30,YR21,30..E199201-199610

main62411-28160-E0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GREIGE,TRIM4#

main62411-28190-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62411-28190-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main62411-28260-B0iCR22,31..G199309-199610

main62411-28270-B0iCR22,31..G199309-199610

GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-28090-E0iCR21,22,30,31,YR21,30..Z199201-199508

main62412-28090-E0iCR22,31,YR21,30..Z199508-199610

LIGHT GREIGE,TRIM4#

main62412-28100-E0iCR21,22,30,31,YR21,30..Z199201-199508

LIGHT GREIGE,TRIM4#

main62412-28110-B0iYR21,30..HRF..08S199309-199610

main62412-28110-B0iYR21,30..HRF..08S199309-199610

main62412-28110-B0iCR21,22,30,31,YR21,30..Q199201-199610

main62412-28110-E0iYR21,30..HRF..08S199309-199610

main62412-28110-E0iCR22,31..E199309-199610

main62412-28110-E0iCR21,22,30,31,YR21,30..Q199201-199610

main62412-28120-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

main62412-28120-B0iCR21,30,YR21,30..E199201-199610

main62412-28120-E0iCR22,31,YR21,30..E199201-199610

main62412-28120-E0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GREIGE,TRIM4#

main62412-28130-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62412-28130-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main62412-28200-B0iCR22,31..G199309-199610

LIGHT GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-28020-B0iCR21,30,YR21,30..Q199201-199309

GRAY,TRIM1#

main62042-28020-E0iCR21,30,YR21,30..Q199201-199309

GREIGE,TRIM4#

main62042-28030-E1iCR21,30,YR21,30..Z199201-199212

GREIGE,TRIM4#

sub62042-28030

main62042-28030-E2iCR21,22,30,31,YR21,30..Z199212-199408

GREIGE,TRIM4#

sub62042-28030

main62042-28040-E0iCR22,31,YR21,30..Z199408-199508

GREIGE,TRIM4#

main62042-28050-E0iCR22,31,YR21,30..Z199508-199610

GREIGE,TRIM4#

main62414-28020-B0iCR21,30,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62414-28020-E0iCR22,31,YR21,30..E,Q199201-199610

LIGHT GREIGE,TRIM4#

main62414-28050-B1iCR22,31..G199309-199610

LIGHT GRAY,TRIM1#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-28020-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62431-28020-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-28040-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62432-28040-E0iCR22,31,YR21,30..E199408-199610

LIGHT GREIGE,TRIM4#

62441AGARNISH, ROOF SIDE RAIL, NO.2 RH

main62441-28040-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62441-28040-E0iCR22,31,YR21,30..E199408-199610

LIGHT GREIGE,TRIM4#

62442AGARNISH, ROOF SIDE RAIL, NO.2 LH

main62442-28040-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62442-28040-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

62443JOINT, ROOF SIDE RAIL GARNISH, RH

main62443-28010-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62443-28010-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

62444JOINT, ROOF SIDE RAIL GARNISH, LH

main62444-28010-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#

main62444-28010-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#

62471BCOVER, REAR PILLAR, RH

main62471-28080-B0iCR21,22,30,31,YR21..D,G199201-199610

LIGHT GRAY,TRIM1#

62471CCLIP(FOR REAR PILLAR COVER)

main90468-04174-B0iCR21,22,30,31,YR21..D,G199201-199610

LIGHT GRAY,TRIM1#

62472BCOVER, REAR PILLAR, LH

main62472-28080-B0iCR21,22,30,31,YR21..D,G199201-199610

LIGHT GRAY,TRIM1#

62473ABOARD, REAR PILLAR, RH

main62473-28010-B0iYR21,30..HRF..08S199309-199610

sub62473-28030

sub62473-28010

main62473-28010-B0iCR22,31,YR21,30..Q199309-199610

sub62473-28030

sub62473-28010

main62473-28010-B0iCR22,31,YR21,30..Q199309-199610

sub62473-28030

sub62473-28010

main62473-28010-E0iYR21,30..HRF..08S199309-199610

sub62473-28030

sub62473-28010

main62473-28010-E0iCR22,31,YR21,30..Z199508-199610

LIGHT GREIGE,TRIM4#

sub62473-28030

sub62473-28010

main62473-28010-E0iCR22,31,YR21,30..Z199201-199610

sub62473-28030

sub62473-28010

main62473-28010-E0iCR22,31..E199309-199610

sub62473-28030

sub62473-28010

main62473-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

main62473-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

main62473-28030-B0iCR22,31,YR21,30..E199201-199610

sub62473-28030

main62473-28030-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

sub62473-28030

main62473-28030-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#

sub62473-28030

main62473-28030-E0iCR21,30,YR21,30..E199201-199610

sub62473-28030

main62473-28050-B0iCR21,22,30,31,YR21,30..Q199201-199610

main62473-28050-E0iCR22,31,YR21,30..Q199201-199610

main62473-28050-E0iCR22,31,YR21,30..Q199508-199610

main62550-28010-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

sub62550-28010

main62550-28010-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

sub62550-28010

62474ABOARD, REAR PILLAR, LH

main62474-28010-B0iCR22,31..E199309-199610

sub62474-28020

sub62474-28010

main62474-28010-B0iCR22,31,YR21,30..Q199201-199610

sub62474-28020

sub62474-28010

main62474-28010-B0iCR22,31,YR21,30..Q199309-199610

sub62474-28020

sub62474-28010

main62474-28010-E0iCR21,30,YR21,30..07S199201-199610

sub62474-28020

sub62474-28010

main62474-28010-E0iYR21,30..HRF..08S199309-199610

sub62474-28020

sub62474-28010

main62474-28010-E0iYR21,30..HRF..08S199309-199610

sub62474-28020

sub62474-28010

main62474-28010-E0iCR22,31,YR21,30..Z199508-199610

LIGHT GREIGE,TRIM4#

sub62474-28020

sub62474-28010

main62474-28020-B0iCR21,30,YR21,30..E199201-199610

sub62474-28020

main62474-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

sub62474-28020

main62474-28020-E0iCR22,31,YR21,30..Q199201-199610

LIGHT GREIGE,TRIM4#

sub62474-28020

main62474-28020-E0iCR22,31,YR21,30..E199201-199610

sub62474-28020

main62560-28020-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

sub62560-28020

main62560-28020-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

sub62560-28020

62638AGARNISH, QUARTER PILLAR, RH

main62638-28100-B0iCR21,30,YR21,30..E199201-199610

main62638-28100-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

main62638-28100-E0iCR22,31,YR21,30..E199201-199610

main62638-28100-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#

main62638-28110-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62638-28110-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main62638-28160-B0iCR22,31..G199309-199610

LIGHT GRAY,TRIM1#

62639AGARNISH, QUARTER PILLAR, LH

main62639-28110-B0iCR21,30,YR21,30..E199201-199610

main62639-28110-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#

main62639-28110-E0iCR22,31,YR21,30..E199201-199610

main62639-28110-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#

main62639-28120-B0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GRAY,TRIM1#

main62639-28120-E0iCR21,22,30,31,YR21,30..E199201-199610

LIGHT GREIGE,TRIM4#

main62639-28180-B0iCR22,31..G199309-199610

LIGHT GRAY,TRIM1#

6453

7152

8514

8602

6777113020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-13020

9018906018

main90189-06018

9046710143

main90467-10143

9046710144

main90467-10144

9046804147

main90468-04147

9046805077

main90468-05077

9046825003

main90468-25003

9354056020

main93540-56020

37 parts on this diagram · 5 diagrams in section
