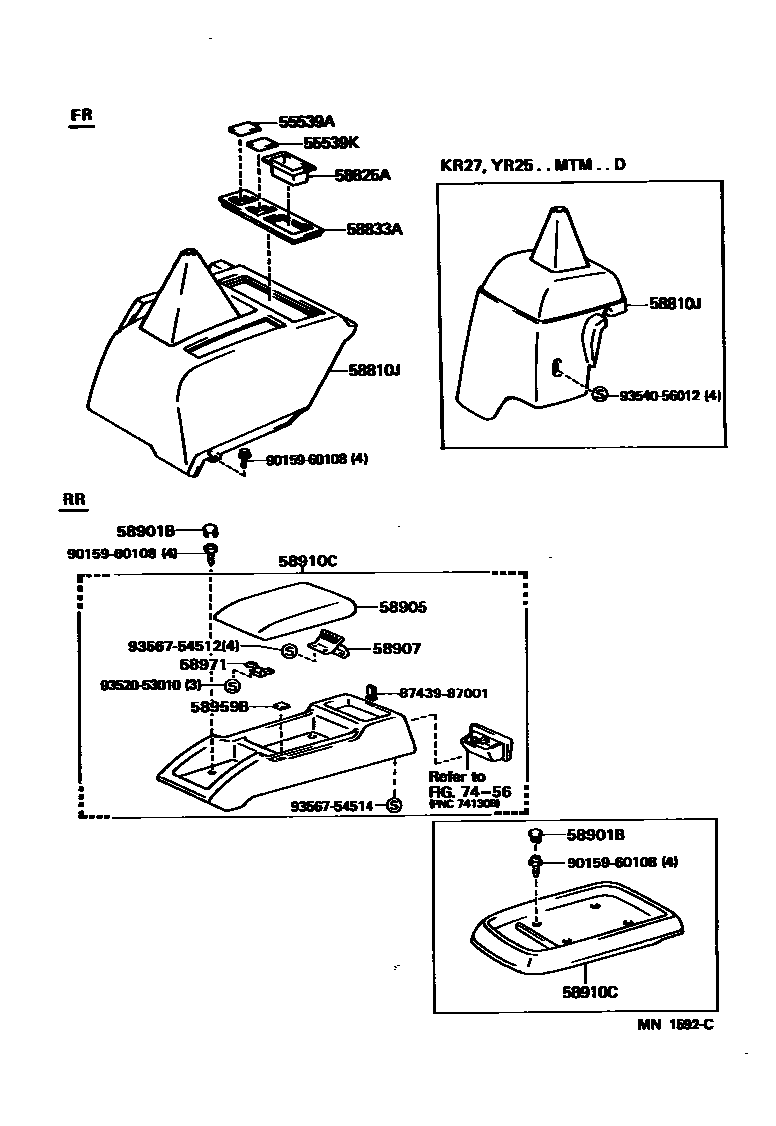

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-40iCR21,30,YR21,30..Q199201-199308

LIGHT GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-B0iCR22,31,YR21,30..E199308-199610

BLUISH GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-C0iCR31..E199403-199610

BLACK,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-E0iCR22,31,YR21,30..E199201-199610

GREIGE,TRIM4#

sub55539-32010

sub55539-32030

55539KCOVER, SPARE SWITCH HOLE

main55539-32010-40iCR21,30,YR21,30..Q199201-199308

LIGHT GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-B0iCR22,31,YR21,30..E,Q199308-199610

BLUISH GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-C0iCR31..E199403-199610

BLACK,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-E0iCR22,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub55539-32010

sub55539-32030

58810JBOX ASSY, CONSOLE

main58810-28130-B0iCR2#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

GRAY,TRIM1#

sub58810-28130

main58810-28130-E0iCR21,22,YR21..MTM..(E,Q)199201-199610

GREIGE,TRIM4#

sub58810-28130

main58810-28140-B0iCR22,YR21..MTM..E199309-199610

main58810-28140-E0iCR21,YR21..MTM..07S199201-199309

main58810-28140-E0iCR22,YR21..MTM..E199309-199610

main58810-28150-B0iCR2#,KR27,YR2#..ATM..(05S,08S)199201-199610

GRAY,TRIM1#

sub58810-28150

main58810-28150-E0iCR21,22,YR21..ATM..(E,Q)199201-199610

GREIGE,TRIM4#

sub58810-28150

main58810-28160-B0iCR22,YR21..ATM..E199309-199610

main58810-28160-B0iCR22,YR21..Q199508-199610

GRAY,TRIM1#

main58810-28160-B0iCR22,YR21..ATM..Q199201-199508

main58810-28160-E0iCR22,YR21..Z199201-199508

main58810-28160-E0iCR22,YR21..Z199201-199610

GREIGE,TRIM4#

main58810-28160-E0iCR22,YR21..ATM..E199309-199610

main58810-28170-B0iCR3#..MTM199201-199610

GRAY,TRIM1#

sub58810-28170

main58810-28170-E0iCR30,31..MTM..(E,Q)199201-199610

GREIGE,TRIM4#

sub58810-28170

main58810-28180-B0iCR31..MTM..07S199508-199610

GRAY,TRIM1#

main58810-28180-B0iCR31..MTM..E199309-199610

main58810-28180-B0iCR30,31..MTM..07S199201-199508

main58810-28180-E0iCR31..MTM..E199309-199610

main58810-28180-E0iCR31..MTM..07S199508-199610

GREIGE,TRIM4#

main58810-28180-E0iCR30,31..MTM..07S199201-199508

main58810-28190-B0iCR3#,YR30..ATM..(05S,08S)199201-199610

GRAY,TRIM1#

main58810-28190-E0iCR31,YR30..ATM..E199201-199610

GREIGE,TRIM4#

main58810-28200-B0iCR31,YR30..ATM..E199309-199610

main58810-28200-B0iCR30,31,YR30..ATM..Q199201-199508

main58810-28200-B0iCR31,YR30..ATM..Q199508-199610

GRAY,TRIM1#

main58810-28200-E0iCR31,YR30..ATM..07S199508-199610

GREIGE,TRIM4#

main58810-28200-E0iCR30,31,YR30..ATM..(E,Q)199201-199508

main58810-28200-E0iCR30,31,YR30..ATM..(E,Q)199201-199508

main58810-28200-E0iCR21,22,30,31,YR21,30..Z199201-199408

GREIGE,GREIGE,TRIM4#

main58810-28200-E0iCR31,YR30..ATM..E199309-199610

main58810-28210-B0iKR27,YR25..MTM..D199201-199610

GRAY,TRIM1#

58825APOCKET, CONSOLE BOX

main58825-28010-B0iCR21,22,30,31,YR21,30..Q199201-199610

GRAY,TRIM1#

sub58825-28010

main58825-28010-E0iCR21,22,30,31,YR21,30..07S199201-199610

GREIGE,TRIM4#

sub58825-28010

58833ACOVER, CONSOLE, UPPER

main58833-28010-B0iCR22,31,YR21,30..E,Q199201-199610

GRAY,TRIM1#

sub58833-28010

main58833-28010-E0iCR22,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub58833-28010

58901BPLUG, HOLE(FOR REAR CONSOLE BOX)

main90950-01541-B0iCR2#,3#,KR27,YR2#,30..(B,D,E,F,G,N,Q)..(02S,05S,07S,08S)199201-199610

GRAY,TRIM1#

sub90950-01541

main90950-01541-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

sub90950-01541

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-87002-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199610

GRAY,TRIM1#

main58951-87002-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-87002iCR21,22,30,31,YR21,30..E,G,Q,Z199201-199610

58910CBOX ASSY, CONSOLE, REAR

main58910-28010-B0iCR22,31,YR21,30..E,G,Q199408-199610

GRAY,TRIM1#

sub58910-28010

main58910-28010-E0iCR22,31,YR21,30..E,Q,Z199408-199610

GREIGE,TRIM4#

sub58910-28010

main58910-87001-B0iCR21,22,30,31,YR21,30..E,G,Q199201-199408

GRAY,TRIM1#

sub58910-28010

main58910-87001-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199408

GREIGE,TRIM4#

sub58910-28010

main58911-28030-B0iCR2#,3#,YR2#..(B,D,N)..(02S,05S,08S)199309-199610

GRAY,TRIM1#

main58911-87001-B0iCR2#,3#,KR27,YR2#..(B,D,F,N)..(02S,05S,08S)199201-199610

GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iCR21,22,30,31,YR21,30..E,G,Q,Z199201-199610

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-87003iCR21,22,30,31,YR21,30..E,G,Q,Z199201-199610

7456

8743987001

main87439-87001

9015960108

main90159-60108

9352053010

main93520-53010

9354056012

main93540-56012

9356754512

main93567-54512

9356754514

main93567-54514

18 parts on this diagram · 1 diagram in section
