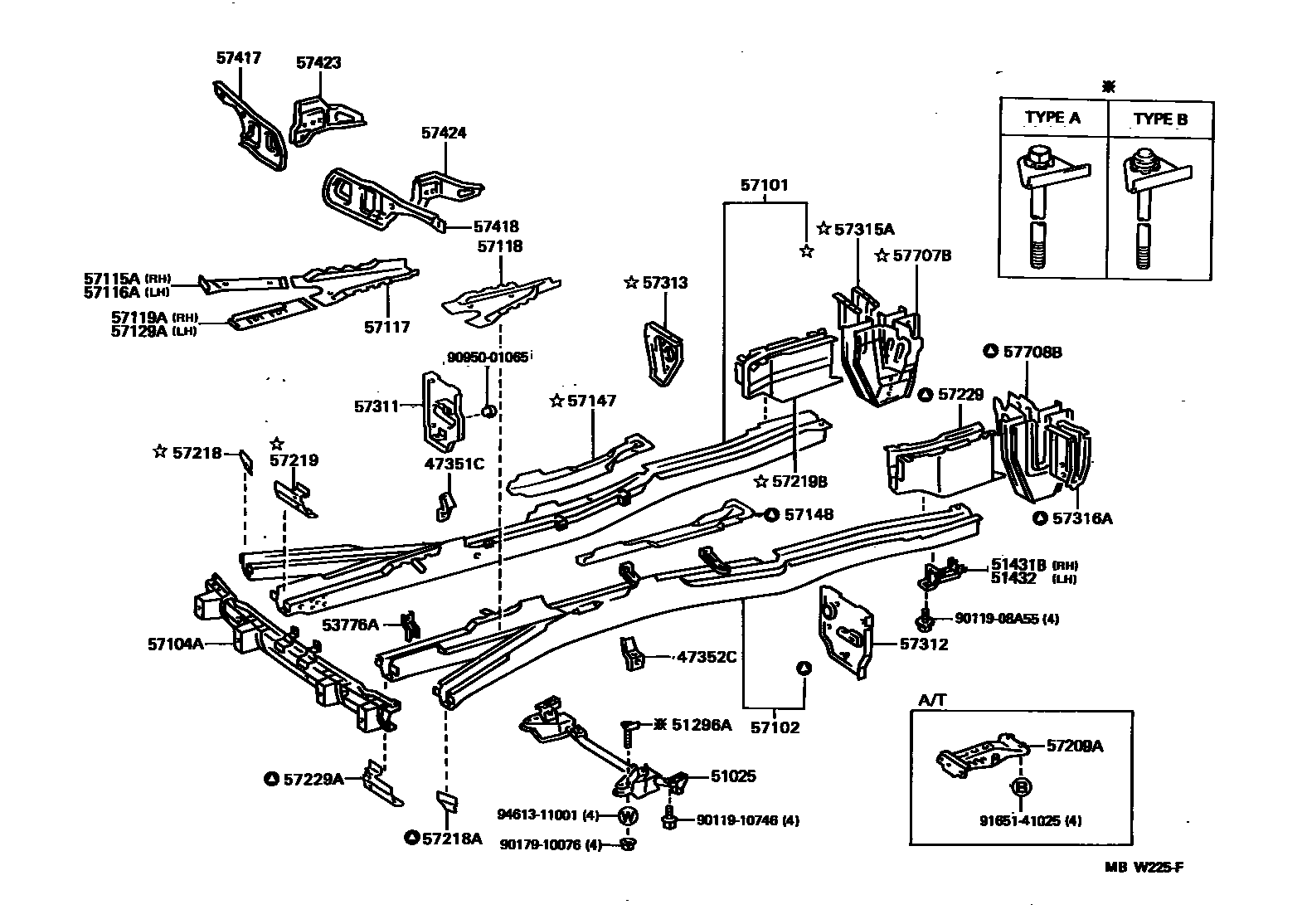

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

47351CBRACKET, FLEXIBLE HOSE, RH

main47351-87003iCR2#,KR27,YR2#199201-199610

main47351-95D02iCR3#,YR30199201-199610

47352CBRACKET, FLEXIBLE HOSE, LH

main47352-87003iCR2#,KR27,YR2#199201-199610

main47352-95D02iCR3#,YR30199201-199610

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-28030iKR27199201-199610

main51025-28080iCR27..V2199201-199610

main51025-28090iYR25..V2199201-199610

main51025-28100iYR21;YR25..V1199201-199610

main51025-28110iCR27..V1;CR21,22,28,29199201-199610

main51025-28130iCR3#199201-199610

main51025-28140iYR30199201-199610

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-87001×2iCR2#,KR27,YR2#; CR3#,YR30199201-199610

main51296-87002iCR2#,KR27,YR2#; CR3#,YR30199201-199610

51431BBRACKET, ENGINE REAR MOUNTING

main51431-87002iCR2#,KR27,YR2#..MTM199201-199610

51432BRACKET, ENGINE REAR MOUNTING, LH

main51432-87002iCR2#,KR27,YR2#..MTM199201-199610

53776ABRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2

main53776-87001iKR27,YR2#,30199201-199610

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28900iCR21,22; CR28,29..4D199201-199610

main57101-28901iCR30,31; CR37,38..4D199201-199610

main57101-28902iCR27,KR27,YR25..4D..V1; YR21..MRF199201-199610

main57101-28903iCR36..5D199201-199610

main57101-28904iCR27,KR27,YR25..4D..(05S,06S)..V1; YR21199201-199610

main57101-28905iYR30199201-199610

main57101-28906iCR27,KR27,YR25..5D..V1199201-199610

main57101-28907iCR27,KR27,YR25..V2199201-199610

main57101-28909iCR28,29..5D199201-199610

main57101-28910iCR30,31..D; CR37,38..4D199201-199610

main57101-28911iCR27,KR27..VSG..4D..V2199201-199610

main57101-28912iCR36..4D..05S199201-199610

main57101-28913iCR21,22..D; CR28,29..4D199201-199610

main57101-28914iCR37,38..5D199201-199610

main57101-28916iCR36..4D199201-199610

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28900iCR21,22,28,29,YR21;CR27,KR27,YR25..V1199201-199610

main57102-28902iCR27,KR27,YR25..V2199201-199610

main57102-28905iCR3#,YR30199201-199610

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-28040iCR2#,3#,KR27,YR2#,30199201-199407

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-87005iCR2#,3#,KR27,YR2#,30199201-199610

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-87005iCR2#,3#,KR27,YR2#,30199201-199610

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-28020iCR2#,3#,KR27,YR2#,30199201-199610

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-28020iCR2#,3#,KR27,YR2#,30199201-199610

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-87003iCR2#,3#,KR27,YR2#,30199201-199610

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-87003iCR2#,3#,KR27,YR2#,30199201-199610

57147PLATE, FRONT SIDE MEMBER, REAR RH

main57147-28010iCR2#,3#,KR27,YR2#,30199201-199211

main57147-28040iCR2#,3#,KR27,YR2#,30199211-199610

57148PLATE, FRONT SIDE MEMBER, REAR LH

main57148-28010iCR2#,3#,KR27,YR2#,30199201-199211

main57148-28030iCR2#,3#,KR27,YR2#,30199211-199610

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-28010iCR27..ATM..V2199201-199610

main57209-87001iCR27..ATM..V1;CR21,22,28,29..ATM199201-199610

main57209-95D00iCR3#199201-199610

main57209-95D01iYR30199201-199610

main57255-28020iKR27..ATM199201-199610

main57255-28030iYR25..ATM..V2199201-199610

main57255-87008iYR21..ATM;YR25..ATM..V1199201-199610

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-87001iCR2#,3#,KR27,YR2#,30199201-199610

57218AGUSSET, FRONT SIDE MEMBER, NO.1 LH

main57218-87001iCR2#,3#,KR27,YR2#,30199201-199610

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-28020iCR2#,3#,KR27,YR2#,30199201-199610

57219BGUSSET, FRONT SIDE MEMBER, REAR RH

main57219-28030iCR27,KR27,YR25..V2199201-199610

57229GUSSET, FRONT SIDE MEMBER, REAR LH

main57229-28020iCR27,KR27,YR25..V2199201-199610

57229AGUSSET, FRONT SIDE MEMBER, NO.2 LH

main57229-28010iCR2#,3#,KR27,YR2#,30199201-199610

57311OUTRIGGER, NO.1 RH

main57301-28040iCR27,28,29,36,37,38,KR27,YR25..5D199201-199610

main57301-28050iCR21,22,30,31,YR21..D; CR27,28,29,36,37,38,KR27,YR25..4D199201-199610

main57301-28060iCR21,22,30,31,YR21,30; CR27,28,29,36,37,38,KR27,YR25..4D..(05S,06S)199201-199610

57312OUTRIGGER, NO.1 LH

main57312-28050iCR2#,3#,KR27,YR2#,30199201-199610

57313OUTRIGGER, NO.2 RH

main57313-87002iCR27,KR27..4D..V1;CR21,22,28,29,3#,YR2#,30..4D199201-199610

57315AOUTRIGGER SUB-ASSY, NO.3 RH

main57305-28010iCR27,KR27..4D..V2199201-199610

main57305-28020iCR27,KR27,YR25..5D..V2199201-199610

57316AOUTRIGGER SUB-ASSY, NO.3 LH

main57306-28010iCR27,KR27,YR25..V2199201-199610

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28020iCR2#,3#,KR27,YR2#,30199201-199610

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28020iCR2#,3#,KR27,YR2#,30199201-199610

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-28020iCR2#,3#,KR27,YR2#,30199201-199610

main58011-28010iCR31..E199309-199610

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-28020iCR2#,3#,KR27,YR2#,30199201-199610

main58012-28010iCR31..E199309-199610

57707BBRACKET, SUB-ASSY, REAR SPRING, FRONT RH

main57707-28030iCR27,KR27..4D..V2199201-199610

main57707-28040iCR27,KR27,YR25..5D..V2199201-199610

57708BBRACKET, SUB-ASSY, REAR SPRING, FRONT LH

main57708-28020iCR27,KR27,YR25..V2199201-199610

9011908A55

main90119-08A55

9011910746

main90119-10746

9017910076

main90179-10076

9095001065

main90950-01065

9165141025

main91651-41025

9461311001

main94613-11001

42 parts on this diagram · 3 diagrams in section
