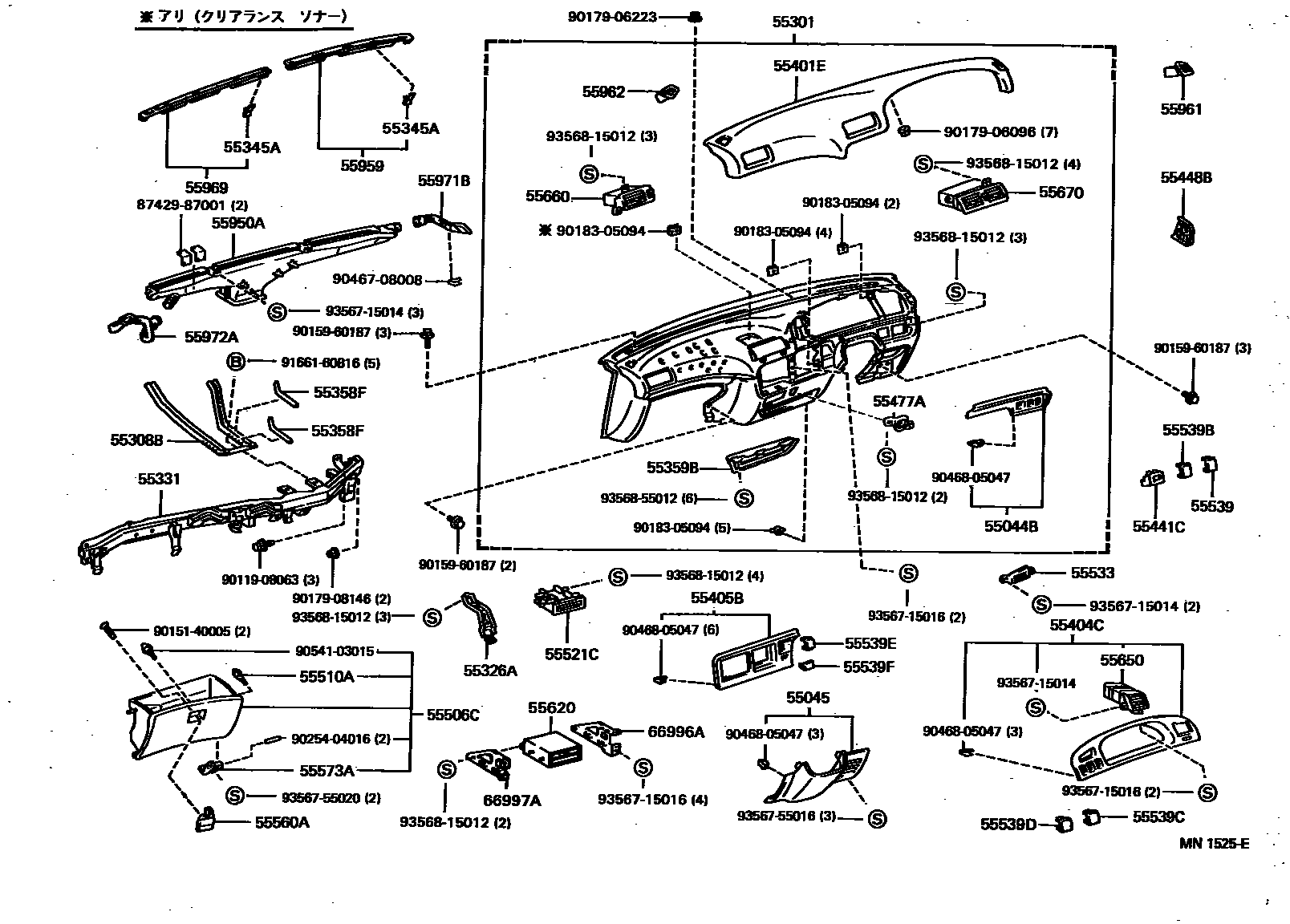

INSTRUMENT PANEL & GLOVE COMPARTMENT

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-28010iCR2#,3#,KR27,YR2#,30199201-199610

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-28030-B0iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

GRAY,TRIM1#

main55045-28040-B0iCR21,22,30,31,YR21,30..E,Q; CR27,28,36,37,KR27,YR25..F,N199201-199610

main55045-28040-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

main55045-28050-B0iCR21,30,YR21,30..Q199201-199309

main55045-28050-E0iCR21,30,YR21,30..Q; CR21,30,YR21,30..Z199201-199309

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28060-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199306

GRAY,TRIM1#

main55301-28060-E0iCR21,30,YR21,30..E,Q,Z199201-199306

GREIGE,TRIM4#

main55301-28070-E0iCR21,30,YR21,30..Z199201-199306

main55301-28160-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199306-199610

GRAY,TRIM1#

main55301-28160-E0iCR21,22,30,31,YR21,30..E,Q,Z199306-199610

GREIGE,TRIM4#

main55301-28170-E0iCR21,22,30,31,YR21,30..Z199306-199610

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-28030iCR2#,3#,KR27,YR2#,30199201-199610

55326ASTAY, INSTRUMENT PANEL, NO.1

main55031-28010iCR2#,3#,KR27,YR2#,30199201-199610

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-28010iCR2#,3#,KR27,YR2#,30199201-199610

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-28010×9iCR2#,3#,KR27,YR2#,30199201-199309

55358FPROTECTOR, EDGE

main82817-28590×2iCR2#,3#,KR27,YR2#,30199201-199610

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-28010iCR2#,3#,KR27,YR2#,30199201-199306

main55359-28020iCR2#,3#,KR27,YR2#,30199306-199610

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-28050-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55401-28050-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

main55401-28070-E0iCR21,22,30,31,YR21,30..Z199201-199610

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28040-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199309

GRAY,TRIM1#

main55404-28040-E0iCR21,30,YR21,30..E,Q,Z199201-199309

GREIGE,TRIM4#

main55404-28070-B0iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199309-199610

GRAY,TRIM1#

main55404-28070-E0iCR22,31,YR21,30..E,Q,Z199309-199610

GREIGE,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28050iCR21,22,YR21..Z199201-199610

main55405-28070iCR2#,KR27,YR2#..B,D,E,F,G,N,Q199201-199610

main55405-28090iCR30,31,YR30..Z199201-199610

main55405-28100iCR3#,YR30..B,D,E,F,G,N,Q199201-199610

55441CBOX, INSTRUMENT PANEL COIN

main58824-28010iCR2#,3#,KR27,YR2#,30..02S,03S,05S,06S,08S199201-199610

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-87003-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55448-87003-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-28020iCR2#,3#,KR27,YR2#,30199201-199610

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-28030-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199306

GRAY,TRIM1#

main55506-28030-E0iCR21,30,YR21,30..E,Q,Z199201-199306

GREIGE,TRIM4#

main55506-28070-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199306-199610

GRAY,TRIM1#

main55506-28070-E0iCR22,31,YR21,30..E,Q,Z199309-199610

GREIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-05080×2iCR2#,3#,KR27,YR2#,30199201-199610

55521CCOVER, STEREO OPENING

main55521-87003iCR2#,3#,KR27,YR2#,30199201-199610

55533COVER, AUTO CLOCK HOLE

main55533-28040-B0iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-28040iCR27,36,KR27,YR25..D;CR21,22,28,29,30,31,37,38,YR21,30..B,E,G,Q199201-199408

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-28040iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

55539CCOVER, SPARE SWITCH HOLE

main55539-28030-B0iCR2#,3#,KR27,YR2#..B,D,F,N199201-199610

GRAY,TRIM1#

55539DCOVER, SPARE SWITCH HOLE

main55539-28030-B0iCR27..VSP;CR36..4D..02S;CR36..MTM..HRF..4D; KR27..4D..03S199201-199309

GRAY,TRIM1#

55539ECOVER, SPARE SWITCH HOLE

main55539-28020iKR27,YR2#,30199201-199309

55539FCOVER, SPARE SWITCH HOLE

main55524-87001iCR2#,KR27,YR2#199201-199610

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55560-16040-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-28030×2iCR2#,3#,KR27,YR2#,30199201-199610

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-28010iCR2#,3#,KR27,YR2#,30199309-199610

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28050-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55650-28050-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28050-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55660-28050-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28040-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55670-28040-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55950ANOZZLE ASSY, DEFROSTER

main55950-28030iCR2#,3#,KR27,YR2#,30199201-199610

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55098-28010-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199309

GRAY,TRIM1#

main55098-28010-E0iCR21,30,YR21,30..E,Q,Z199201-199309

GREIGE,TRIM4#

main55098-28020iCR2#,3#,KR27,YR2#,30199309-199610

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-28030-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55961-28030-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-28030-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

GRAY,TRIM1#

main55962-28030-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55099-28010-B0iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199309

GRAY,TRIM1#

main55099-28010-E0iCR21,30,YR21,30..E,Q199201-199309

GREIGE,TRIM4#

main55099-28020-E0iCR21,30,YR21,30..Z199201-199309

GREIGE,TRIM4#

main55099-28030iCR2#,3#,KR27,YR2#,30..B,D,E,G,N,Q199309-199610

main55099-28040iCR22,31,YR21,30..Z199309-199610

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-28010iCR2#,3#,KR27,YR2#,30199201-199610

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-28010iCR2#,3#,KR27,YR2#,30199201-199610

66996ABRACKET, CUP HOLDER, NO.1

main66996-28020iCR2#,3#,KR27,YR2#,30199309-199610

66997ABRACKET, CUP HOLDER, NO.2

main66997-28010iCR2#,3#,KR27,YR2#,30199309-199610

8742987001PIPE, COMBUSTION HEATER OUTLET

main87429-87001

9011908063

main90119-08063

9015140005

main90151-40005

9015960187

main90159-60187

9017906096

main90179-06096

9017906223

main90179-06223

9017908146

main90179-08146

9018305094

main90183-05094

9025404016

main90254-04016

9046708008

main90467-08008

9046805047

main90468-05047

9054103015

main90541-03015

9166160816

main91661-60816

9356715014

main93567-15014

9356715016

main93567-15016

9356755016

main93567-55016

9356755020

main93567-55020

9356815012

main93568-15012

9356855012

main93568-55012

59 parts on this diagram · 1 diagram in section
