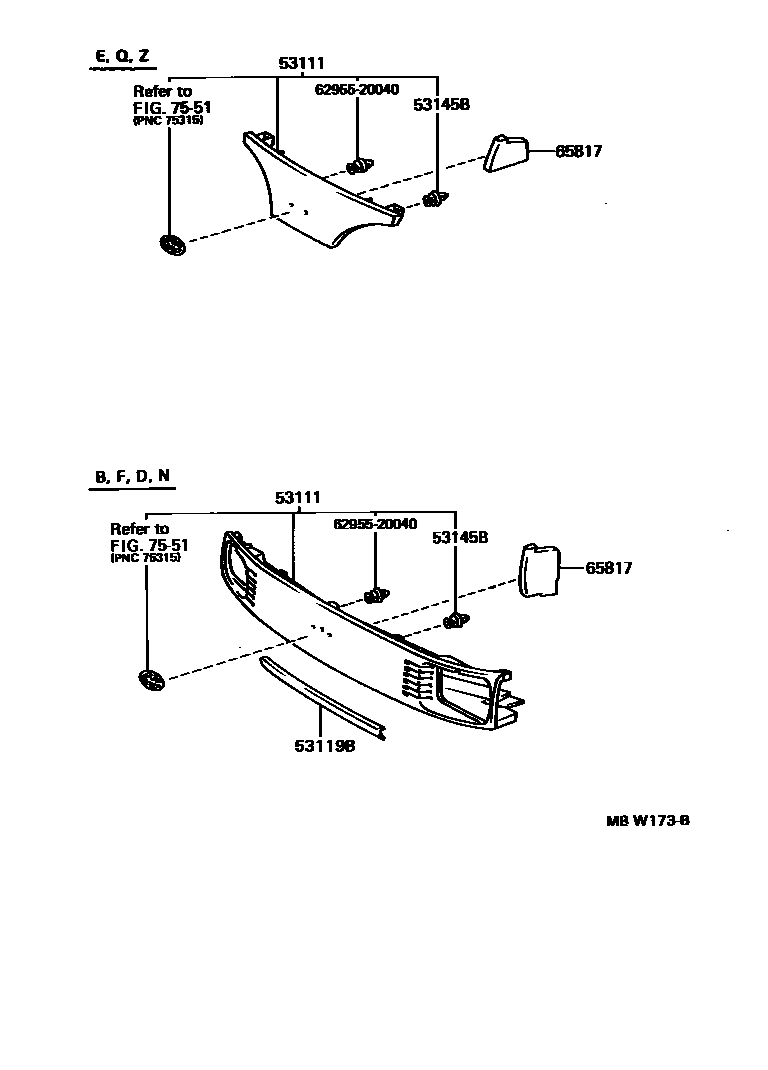

RADIATOR GRILLE

0001 1LITEACE 0002 1TOWNACE

53111GRILLE, RADIATOR

main53100-28030iCR2#,3#,KR27,YR2#..B,D,F,N199201-199408

TOWNACE

sub53100-28080

main53100-28040iCR2#,3#,KR27,YR2#..B,D,F,N199201-199408

LITEACE

sub53100-28070

main53100-28070iCR27,29,36,38,KR27,YR25199408-199610

LITEACE

main53100-28080iCR27,29,36,38,KR27,YR25199408-199610

TOWNACE

main53101-28040iCR21,30,YR21,30..E,Q,Z199201-199309

TOWNACE

sub53101-28060

main53101-28050iCR22,31,YR21,30199201-199408

LITEACE

sub53101-28070

main53101-28060iCR22,31,YR21,30..D,E,Q,Z199309-199610

TOWNACE

main53101-28070iCR22,31,YR21,30199408-199610

LITEACE

53119BPROTECTOR, RADIATOR GRILLE

main53119-28030iCR27,29,36,38,KR27,YR25199309-199610

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-28010iCR21,30,YR21,30..E,Q,Z199201-199610

65817PAD, COVER TOP PANEL END

main65817-28020iCR2#,3#,KR27,YR2#..B,D,F,N199201-199610

TOWNACE

main65817-28030iCR27,29,36,38,KR27,YR25199201-199610

LITEACE

main65817-28040iCR21,30,YR21,30..E,Q,Z199201-199610

TOWNACE

main65817-28050iCR21,30,YR21,30..E,Q,Z199201-199610

LITEACE

7551

6295520040SEAL, ROOF SIDE VENT

main62955-20040

6 parts on this diagram · 2 diagrams in section
