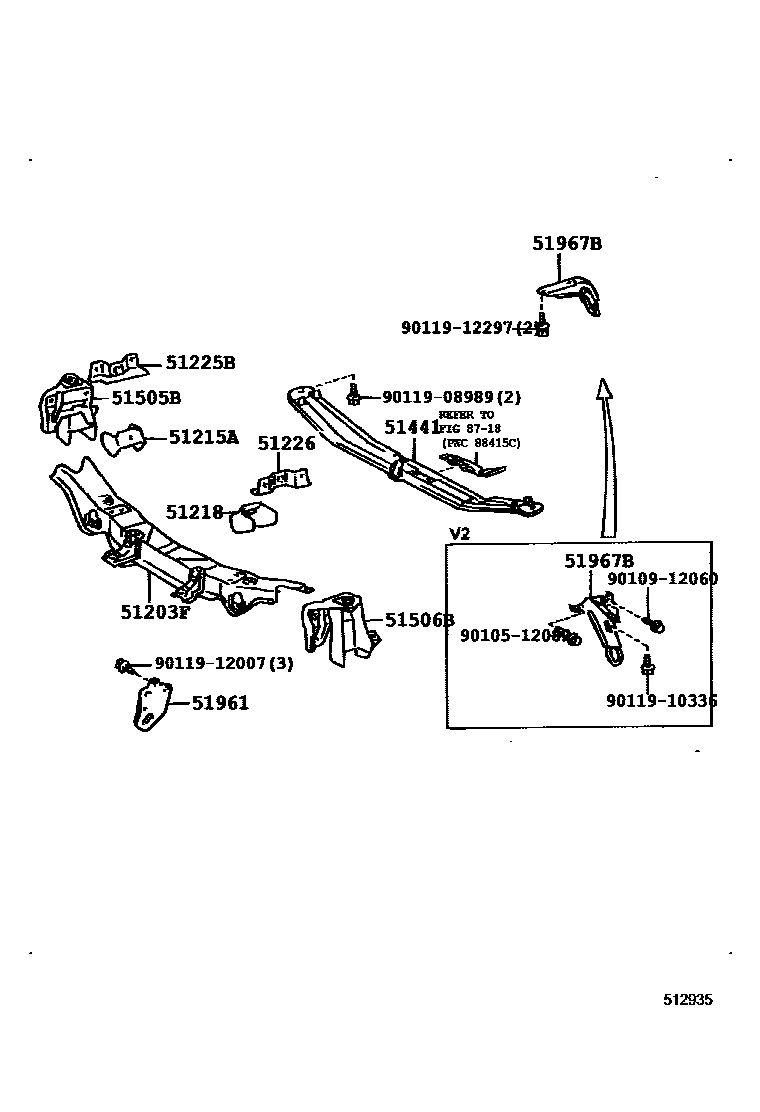

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-28070iCR3#,YR30199201-199610

main51203-28170iCR27,KR27,YR25199201-199210

main51203-28210iCR27,KR27,YR25199210-199610

main51203-28220iCR21,22,28,29,YR21; CR27,KR27,YR25199201-199610

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-28010iCR2#,KR27,YR2#199211-199610

main51215-87007iCR2#,KR27,YR2#199201-199211

51218REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main51218-28020iCR2#,KR27,YR2#199211-199610

main51218-87002iCR2#,KR27,YR2#199201-199211

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-28010iCR2#,KR27,YR2#199201-199610

51226BRACKET, FRONT SUSPENSION MEMBER, LH

main51226-28010iCR2#,KR27,YR2#199201-199610

51441COVER, ENGINE UNDER, NO.1

main51441-87002iCR2#,KR27,YR2#199201-199610

main51441-95D00iCR3#,YR30199201-199610

51505BSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-28050iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199508-199610

main51505-28060iCR21,22,YR21..Q; CR21,22,YR21..Z199201-199508

51506BSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-28050iCR2#,KR27,YR2#..B,D,E,F,G,N,Q199201-199508

main51506-28060iCR21,22,YR21..Q; CR21,22,YR21..Z199201-199508

51961HOOK, NO.1

main51970-87001iCR2#,KR27,YR2#199201-199610

main51970-95D00iCR3#,YR30199201-199610

main51980-87001iKR27,YR2#199201-199610

main51980-87002iCR2#199201-199610

main51980-95D01iCR3#,YR30199201-199610

51967BHOOK, TRANSPORT, REAR RH

main51095-28020×2iCR31..E199310-199403

main51095-28030iCR27,KR27,YR25..V2199201-199610

9010512082

main90105-12082

9010912060

main90109-12060

9011908989

main90119-08989

9011910336

main90119-10336

9011912007

main90119-12007

9011912297

main90119-12297

16 parts on this diagram · 2 diagrams in section
