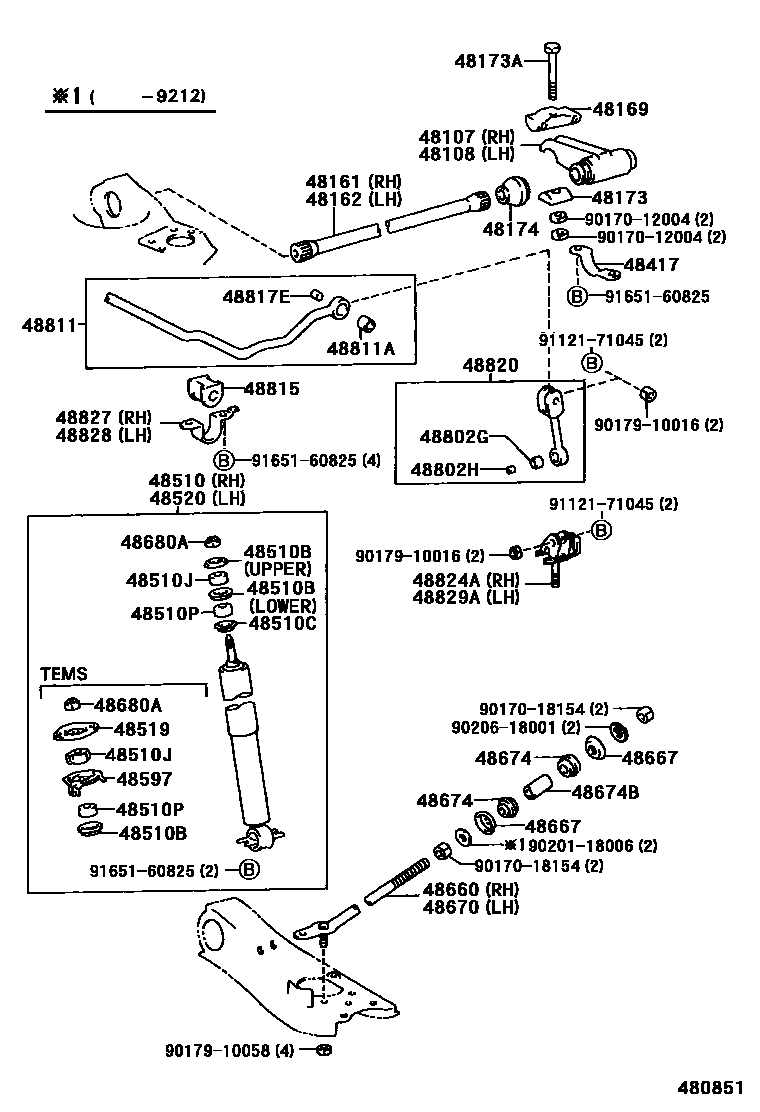

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-28010iCR2#,3#,KR27,YR2#,30199201-199610

sub48107-27060

sub48175-27030

48108ARM SUB-ASSY, ANCHOR, LH

main48108-28010iCR2#,3#,KR27,YR2#,30199201-199610

sub48108-27060

sub48175-27030

48161SPRING, TORSION BAR, RH

main48161-28020iCR2#,KR27,YR2#..(B,D,F,N)..(02S,05S,08S)199201-199411

main48161-28021iCR2#,KR27,YR2#..(B,D,N)..(02S,05S,08S)199411-199610

main48161-28030iKR27,YR25..MTM..D;CR21,22,YR21..E,G,Q,Z199201-199411

main48161-28040iCR3#,YR30199201-199610

main48161-28060iCR22,YR21..E,G,Q,Z199411-199610

48162SPRING, TORSION BAR, LH

main48162-28020iCR2#,KR27,YR2#..(B,D,F,N)..(02S,05S,08S)199201-199411

main48162-28021iCR2#,KR27,YR2#..(B,D,N)..(02S,05S,08S)199411-199610

main48162-28030iKR27,YR25..MTM..D;CR21,22,YR21..E,G,Q,Z199201-199411

main48162-28040iCR3#,YR30199201-199610

main48162-28060iCR22,YR21..E,G,Q,Z199411-199610

48169SWIVEL, ANCHOR ARM

main48169-28010×2iCR2#,KR27,YR2#199201-199610

main48169-28020×2iCR3#,YR30199201-199610

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010×2iCR2#,3#,KR27,YR2#,30199201-199610

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12096×2iCR2#,3#,KR27,YR2#,30199201-199302

main90101-12104×2iCR2#,3#,KR27,YR2#,30199302-199610

48174COVER, TORSION BAR DUST

main48175-27010×2iCR2#,3#,KR27,YR2#,30199201-199610

48417BRACKET, SPRING

main48417-28030iCR2#,3#,KR27,YR2#,30199201-199610

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29545iCR22,29,YR21..B,D;KR27,YR25..MTM..D..V1199411-199610

sub48500-29546

main48500-29555iCR27,KR27,YR25..(02S,05S)..V1199201-199610

sub48500-29556

main48500-29565iCR22,YR21..07S199505-199610

sub48500-29566

main48500-29575iCR27,KR27,YR25..V2199201-199211

sub48500-29576

main48500-29595iCR22,YR21..E,G199505-199610

sub48500-29596

main48500-29605iCR3#,YR30..B,D,E,F,G,N,Q199201-199505

sub48500-29606

main48500-29615iCR30,31,YR30..Z199201-199505

sub48500-29616

main48500-29645iCR27,KR27,YR25..V2199211-199610

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×2iYR25..V1;YR25..MTM..V2;CR2#,3#,KR27,YR21,30..B,D,E,F,G,N,Q199201-199505

UPPER

main90948-02070×2iCR21,22,30,31,YR21,30..Z199201-199505

main90948-02105×2iCR2#,KR27,YR2#..02S,03S,05S,06S,08S199505-199610

LOWER

main90948-02123×2iCR3#,YR30..B,D,E,F,G,N,Q199201-199505

LOWER

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02076×2iCR2#,3#,KR27,YR2#,30..02S,03S,05S,06S,08S199505-199610

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01003×2iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199505

main90948-01039×2iCR21,22,30,31,YR21,30..Z199201-199505

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01029×2iCR2#,3#,KR27,YR2#,30..02S,03S,05S,06S,08S199505-199610

main90948-01032×2iCR21,22,30,31,YR21,30..Z199201-199505

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-28010×2iCR21,22,30,31,YR21,30..07S199201-199610

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29545iKR27,YR25..MTM..D..V1;CR21,22,28,29,YR21..B,D,E,F,G,Q199201-199411

sub48500-29546

main48500-29555iCR27,KR27,YR25..(02S,05S)..V1199201-199610

sub48500-29556

main48500-29565iCR21,22,YR21..Z199201-199505

sub48500-29566

main48500-29575iCR27,KR27,YR25..V2199201-199211

sub48500-29576

main48500-29595iCR22,YR21..E,G199505-199610

sub48500-29596

main48500-29605iCR3#,YR30..02S,05S,08S199505-199610

sub48500-29606

main48500-29615iCR30,31,YR30..Z199201-199505

sub48500-29616

main48500-29645iCR27,KR27,YR25..V2199211-199610

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-28010×2iCR21,22,YR21..07S199201-199610

main48597-28020iCR30,31,YR30..07S199201-199610

main48597-28030iCR30,31,YR30..07S199201-199610

48660BAR ASSY, STRUT, RH

main48660-28030iCR2#,KR27,YR2#199201-199610

48667RETAINER, STRUT BAR

main48667-28010×4iCR2#,KR27,YR2#199201-199610

48670BAR ASSY, STRUT, LH

main48670-28030iCR2#,KR27,YR2#199201-199610

48674CUSHION, STRUT BAR

main48674-28010×4iCR2#,KR27,YR2#199201-199610

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090×2iCR2#,KR27,YR2#199201-199610

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11000×2iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199505

main94187-11200×2iCR21,22,30,31,YR21,30..Z199201-199505

sub90177-12002

48802GBUSH(FOR FRONT STABILIZER BAR LINK)

main90385-11021×2iCR2#,KR27,YR2#199201-199610

48802HSPACER(FOR FRONT STABILIZER BAR LINK)

main90560-10275×2iCR2#,KR27,YR2#199201-199610

48811BAR, STABILIZER, FRONT

main48804-28011iCR3#,YR30199201-199205

sub48811-28061

main48804-28012iCR3#,YR30199205-199610

sub48811-28061

main48804-28020iCR2#,KR27,YR2#199201-199610

48811ABUSH(FOR FRONT STABILIZER BAR)

main48815-28030×2iCR3#,YR30199201-199610

main90385-11021×2iCR2#,KR27,YR2#199201-199610

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30100×2iCR2#,3#,KR27,YR2#,30199201-199610

48817CUSHION, FRONT STABILIZER

main90948-01002×4iCR3#,YR30199201-199610

48817ESPACER(FOR STABILIZER BAR)

main90560-10275×2iCR2#,KR27,YR2#199201-199610

48820LINK ASSY, FRONT STABILIZER

main48820-28020×2iCR2#,KR27,YR2#199201-199610

sub48820-28021

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28030iCR3#,YR30199201-199610

main48824-28100iCR2#,KR27,YR2#199201-199610

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-28061iCR2#,KR27,YR2#199201-199610

main48825-28020iCR3#,YR30199201-199610

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-28061iCR2#,KR27,YR2#199201-199610

main48825-28020iCR3#,YR30199201-199610

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28030iCR3#,YR30199201-199610

main48829-28040iCR2#,KR27,YR2#199201-199610

9017012004

main90170-12004

9017018154

main90170-18154

9017910016

main90179-10016

9017910058

main90179-10058

9020118006

main90201-18006

9020618001

main90206-18001

9112171045

main91121-71045

9165160825

main91651-60825

43 parts on this diagram · 2 diagrams in section
