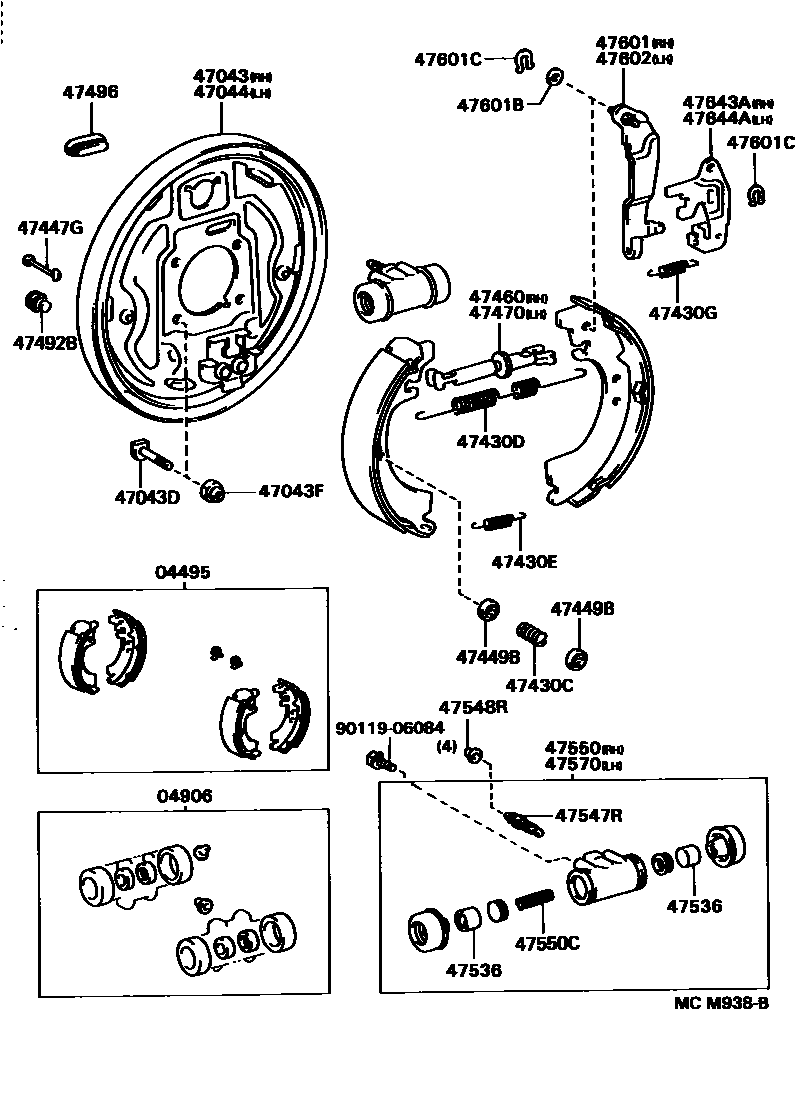

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1��(������ ���-���� ����)

04495SHOE KIT, REAR BRAKE

main04495-26091iCR21,22,YR21..E,G,Q,Z199201-199610

main04495-27041iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main04495-28061iCR3#,YR30;CR22,29..MTM199201-199610

main04497-27030iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iCR27,KR27,YR25199201-199610

main04906-14020iCR21,28,YR21;CR22,29..ATM199201-199610

main04906-28020iCR21,22,YR21..E,G,Q,Z199201-199610

main04906-30080iCR3#,YR30;CR22,29..MTM199201-199610

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-27080iCR27,KR27,YR25..V2199201-199610

main47043-28050iCR3#,YR30;CR22,29..MTM199201-199610

main47043-28060iCR21,28,YR21;CR22,29..ATM;CR27,KR27,YR25..V1199201-199610

main47043-28090iCR21,22,YR21..E,G,Q,Z199201-199610

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main42184-28010×8iCR22..ATM;CR21,YR21..E,Q,Z; CR3#,YR30;CR22,29..MTM199201-199610

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150×8iCR22..ATM;CR21,YR21..E,Q,Z; CR3#,YR30;CR22,29..MTM199201-199610

main94181-11000×8iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-27080iCR27,KR27,YR25..V2199201-199610

main47044-28050iCR3#,YR30;CR22,29..MTM199201-199610

main47044-28060iCR21,28,YR21;CR22,29..ATM;CR27,KR27,YR25..V1199201-199610

main47044-28090iCR21,22,YR21..E,G,Q,Z199201-199610

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90501-20756×4iCR22..ATM;CR21,YR21..E,Q,Z; CR3#,YR30;CR22,29..MTM199201-199610

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005×2iCR21,22,YR21..E,G,Q,Z199201-199610

main90506-23003×2iCR3#,YR30;CR22,29..MTM199201-199610

main90506-23375×2iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iCR21,22,YR21..E,G,Q,Z199201-199610

main90506-23030×2iCR3#,YR30;CR22,29..MTM199201-199610

main90506-23346×2iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iCR21,28,YR21; CR27,KR27,YR25199201-199309

main90506-12480×2iCR22,29..MTM; CR3#,YR30199309-199501

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47447-30020×4iCR22..ATM;CR21,YR21..E,Q,Z; CR3#,YR30;CR22,29..MTM199201-199610

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iCR2#,3#,KR27,YR2#,30199201-199610

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14040iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47061-28010iCR21,22,YR21..E,G,Q,Z199201-199610

main47062-30040iCR3#,YR30;CR22,29..MTM199201-199610

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-30040iCR3#,YR30;CR22,29..MTM199201-199610

main47062-14040iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47062-28010iCR21,22,YR21..E,G,Q,Z199201-199610

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iCR2#,3#,KR27,YR2#,30199201-199610

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iCR2#,3#,KR27,YR2#,30199201-199610

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iCR21,28,YR21;CR22,29..ATM199201-199610

main47051-22040×4iCR22,29..MTM;CR27,3#,KR27,YR25,30199201-199610

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iCR22..ATM;CR21,YR21..E,Q,Z; CR3#,YR30;CR22,29..MTM199201-199610

main47547-27030×2iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iCR2#,3#,KR27,YR2#,30199201-199610

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-27030iCR21,28,YR21;CR22,29..ATM199201-199610

main47550-28040iCR21,22,YR21..E,G,Q,Z199201-199610

main47550-28050iCR27,KR27,YR25199201-199610

main47550-30120iCR3#,YR30;CR22,29..MTM199201-199610

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iCR27,KR27,YR25199201-199610

main47509-20010×2iCR21,28,YR21;CR22,29..ATM199201-199610

main47509-22010×2iCR3#,YR30;CR22,29..MTM199201-199610

main90501-09118×2iCR21,22,YR21..E,G,Q,Z199201-199610

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-27030iCR21,28,YR21;CR22,29..ATM199201-199610

main47550-28040iCR21,22,YR21..E,G,Q,Z199201-199610

main47550-28050iCR27,KR27,YR25199201-199610

main47550-30120iCR3#,YR30;CR22,29..MTM199201-199610

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47601-28010iCR3#,YR30;CR22,29..MTM199201-199610

main47611-35020iCR21,22,YR21..E,G,Q,Z199201-199610

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-08151iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-08152iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-08172iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-08173iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-08174iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90564-09001iCR3#,YR30;CR22,29..MTM199201-199610

main90564-09002iCR3#,YR30;CR22,29..MTM199201-199610

main90564-09003iCR3#,YR30;CR22,29..MTM199201-199610

main90564-09184iCR3#,YR30;CR22,29..MTM199201-199610

main90564-09185iCR3#,YR30;CR22,29..MTM199201-199610

main90564-09186iCR3#,YR30;CR22,29..MTM199201-199610

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iCR3#,YR30199201-199309

main90213-07010×2iCR3#,YR30199201-199309

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47602-28010iCR3#,YR30;CR22,29..MTM199201-199610

main47612-35020iCR21,22,YR21..E,G,Q,Z199201-199610

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47643-35020iCR21,22,YR21..E,G,Q,Z199201-199610

main47644-30010iCR3#,YR30;CR22,29..MTM199201-199610

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iCR3#,YR30;CR22,29..MTM199201-199610

main47644-20020iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main47644-35020iCR21,22,YR21..E,G,Q,Z199201-199610

9011906084

main90119-06084

29 parts on this diagram · 2 diagrams in section
