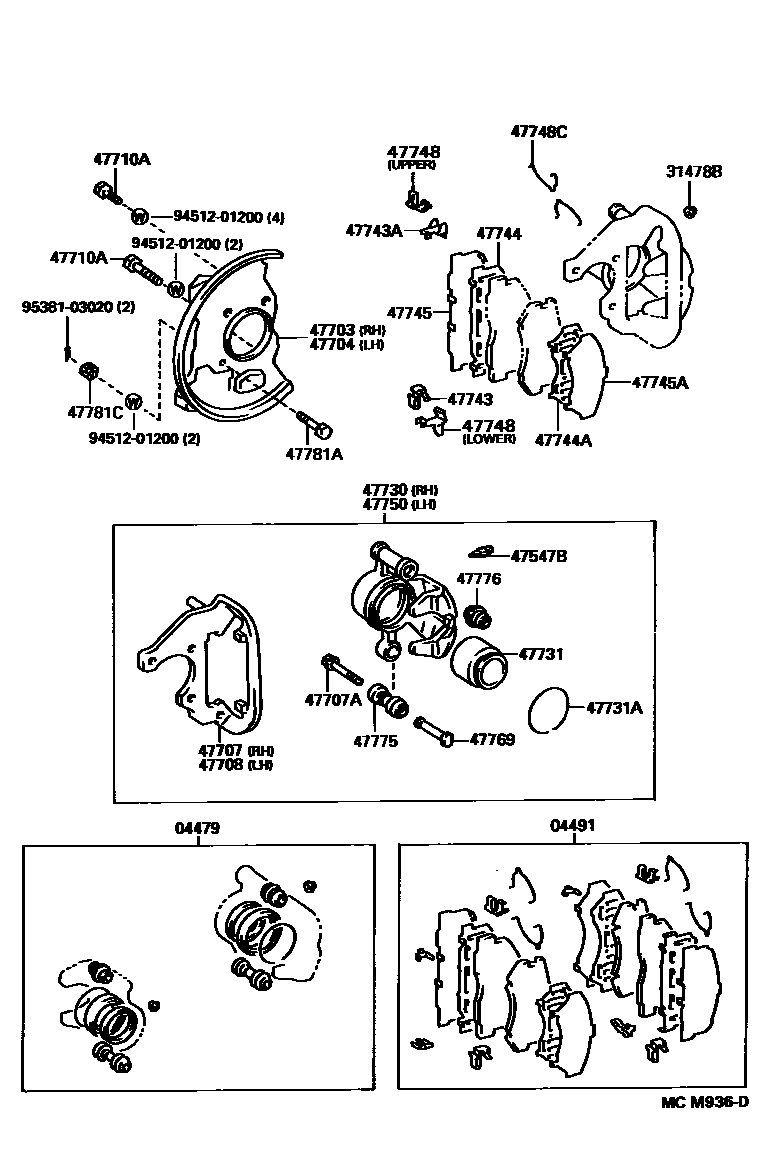

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28031iCR3#,YR30199201-199610

main04479-28050iCR2#,KR27,YR2#199201-199610

04491PAD KIT, DISC BRAKE, FRONT

main04491-28290iCR21,28,YR21199201-199309

main04491-28320iCR3#,YR30199201-199309

main04491-28330iCR27,KR27,YR25199201-199505

main04491-28370iCR22,29,YR21199309-199505

main04491-28380iCR3#,YR30199309-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCR2#,3#,KR27,YR2#,30199201-199610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27040iCR2#,3#,KR27,YR2#,30199201-199610

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-28040iCR21,22,YR21..E,G,Q,Z199201-199410

main47703-28041iCR22,YR21..E,G,Q,Z199410-199610

main47703-28050iCR21,22,28,29,YR21199201-199408

main47703-28051iCR22,29,YR21199408-199610

main47703-28070iCR27,KR27,YR25199201-199305

main47703-28071iCR27,KR27,YR25199305-199408

main47703-28072iCR27,KR27,YR25199408-199610

main47703-28080iCR3#,YR30199201-199408

main47781-28151iCR3#,YR30199408-199610

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-28040iCR21,22,YR21..E,G,Q,Z199201-199410

main47704-28041iCR22,YR21..E,G,Q,Z199410-199610

main47704-28050iCR21,22,28,29,YR21199201-199408

main47704-28051iCR22,29,YR21199408-199610

main47704-28070iCR27,KR27,YR25199201-199305

main47704-28071iCR27,KR27,YR25199305-199408

main47704-28072iCR27,KR27,YR25199408-199610

main47704-28080iCR3#,YR30199201-199408

main47782-28151iCR3#,YR30199408-199610

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28040iCR3#,YR30199201-199610

main47707-28140iCR27,KR27,YR25199201-199610

main47707-28150iCR21,22,28,29,YR21199201-199610

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385iCR2#,3#,KR27,YR2#,30199201-199610

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28040iCR3#,YR30199201-199610

main47708-28140iCR27,KR27,YR25199201-199610

main47708-28150iCR21,22,28,29,YR21199201-199610

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCR2#,KR27,YR2#199201-199610

main90101-12030iCR2#,KR27,YR2#199201-199610

main90101-12123iCR3#,YR30199201-199610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28210iCR27,KR27,YR25199201-199610

main47730-28220iCR21,22,28,29,YR21199201-199610

main47730-28240iCR3#,YR30199201-199610

47731PISTON, FRONT DISC BRAKE

main47731-28030iCR3#,YR30199201-199610

main47731-28040iCR2#,KR27,YR2#199201-199610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52005iCR3#,YR30199506-199610

main90522-49001iCR3#,YR30199201-199506

main90522-67001iCR2#,KR27,YR2#199201-199610

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCR2#,3#,KR27,YR2#,30199201-199610

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-28010iCR2#,3#,KR27,YR2#,30199201-199610

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28130iCR2#,3#,KR27,YR2#,30199201-199610

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-28120iCR2#,KR27,YR2#199201-199610

main47744-28140iCR3#,YR30199201-199610

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-28070iCR2#,3#,KR27,YR2#,30199201-199610

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47745-28060iCR2#,KR27,YR2#199201-199610

main47745-28080iCR3#,YR30199201-199610

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCR2#,3#,KR27,YR2#,30199201-199610

UPPER

main47748-28010iCR28..MTM;CR21,27,3#,KR27,YR25,30199201-199610

LOWER

main47748-28010iCR28..MTM;CR21,27,3#,KR27,YR25,30199210-199309

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-20020iCR2#,3#,KR27,YR2#,30199201-199610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28210iCR27,KR27,YR25199201-199610

main47750-28220iCR21,22,28,29,YR21199201-199610

main47750-28240iCR3#,YR30199201-199610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iCR2#,3#,KR27,YR2#,30199201-199610

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iCR27,3#,KR27,YR25,30199201-199610

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iCR27,3#,KR27,YR25,30199201-199610

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCR2#,KR27,YR2#199201-199610

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iCR2#,KR27,YR2#199201-199610

9451201200

main94512-01200

9538103020

main95381-03020

29 parts on this diagram · 3 diagrams in section
