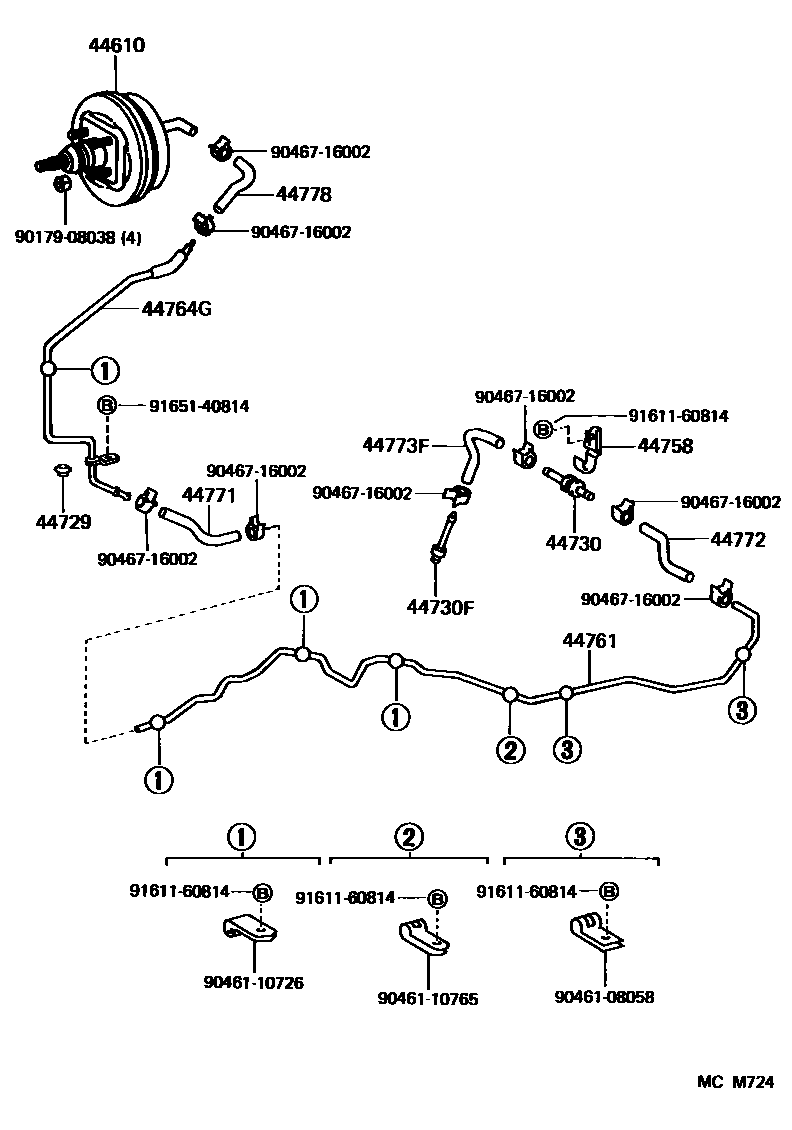

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
44729GASKET, VACUUM TUBE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44758BRACKET, VACUUM CHECK VALVE
44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764GTUBE, CONNECTOR TO BRAKE BOOSTER
44771HOSE, VACUUM TUBE CONNECTOR
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44773FHOSE, UNION TO CHECK VALVE
44778HOSE, CONNECTOR TO CHECK VALVE
9017908038
main90179-08038
9046108058
main90461-08058
9046110726
main90461-10726
9046110765
main90461-10765
9046716002
main90467-16002
9161160814
main91611-60814
9165140814
main91651-40814
18 parts on this diagram · 4 diagrams in section
