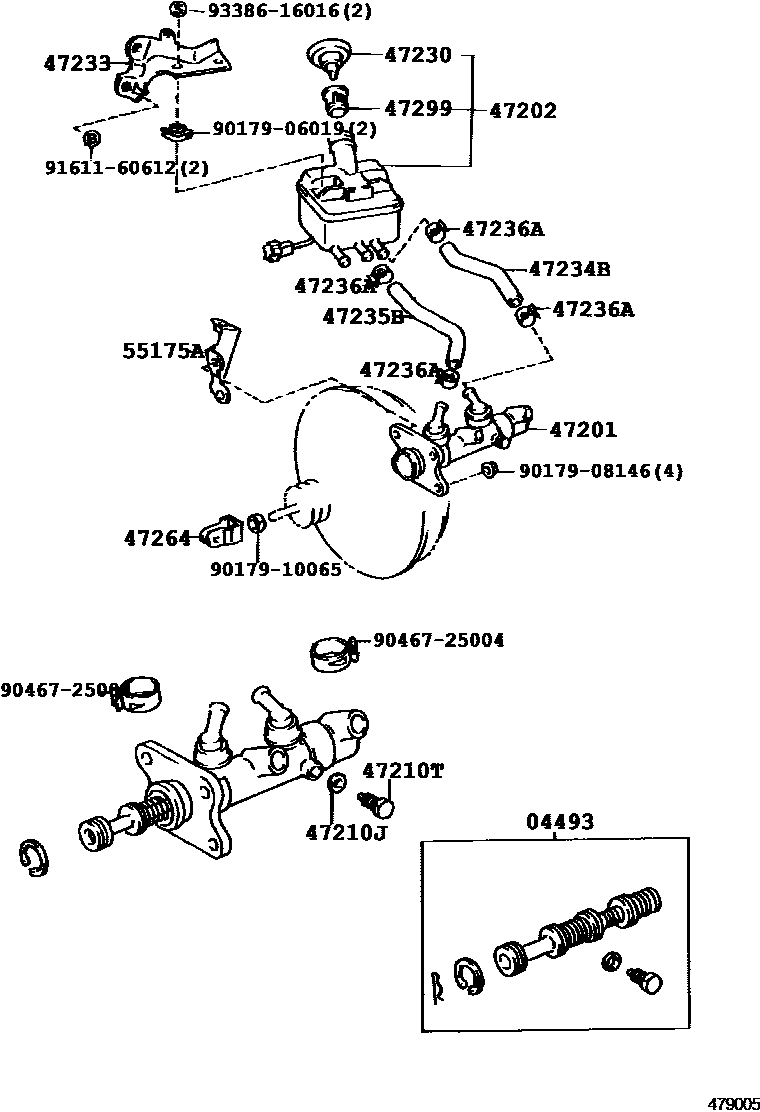

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-28120iCR2#,3#,KR27,YR2#,30199201-199610

main04493-28130iCR21,22,YR21..E,G,Q,Z199201-199610

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28310iCR2#,3#,KR27,YR2#,30199201-199610

main47201-28320iCR21,22,YR21..E,G,Q,Z199201-199610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iCR2#,3#,KR27,YR2#..MTM199201-199610

main47220-28110iCR2#,3#,KR27,YR2#,30..ATM199201-199610

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCR2#,3#,KR27,YR2#,30199201-199610

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCR2#,3#,KR27,YR2#,30199201-199610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCR2#,3#,KR27,YR2#,30199201-199610

47233BRACKET, RESERVOIR

main47233-28060iCR2#,3#,KR27,YR2#,30199201-199610

47234BTUBE, RESERVOIR, NO.1

main47234-28060iCR2#,3#,KR27,YR2#,30199201-199610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28060iCR2#,3#,KR27,YR2#,30199201-199610

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002×4iCR2#,3#,KR27,YR2#,30199201-199610

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iCR2#,3#,KR27,YR2#,30199201-199610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCR2#,3#,KR27,YR2#,30199201-199610

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-28070iCR2#,3#,KR27,YR2#,30199201-199610

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046725004

main90467-25004

9161160612

main91611-60612

9338616016

main93386-16016

19 parts on this diagram · 1 diagram in section
