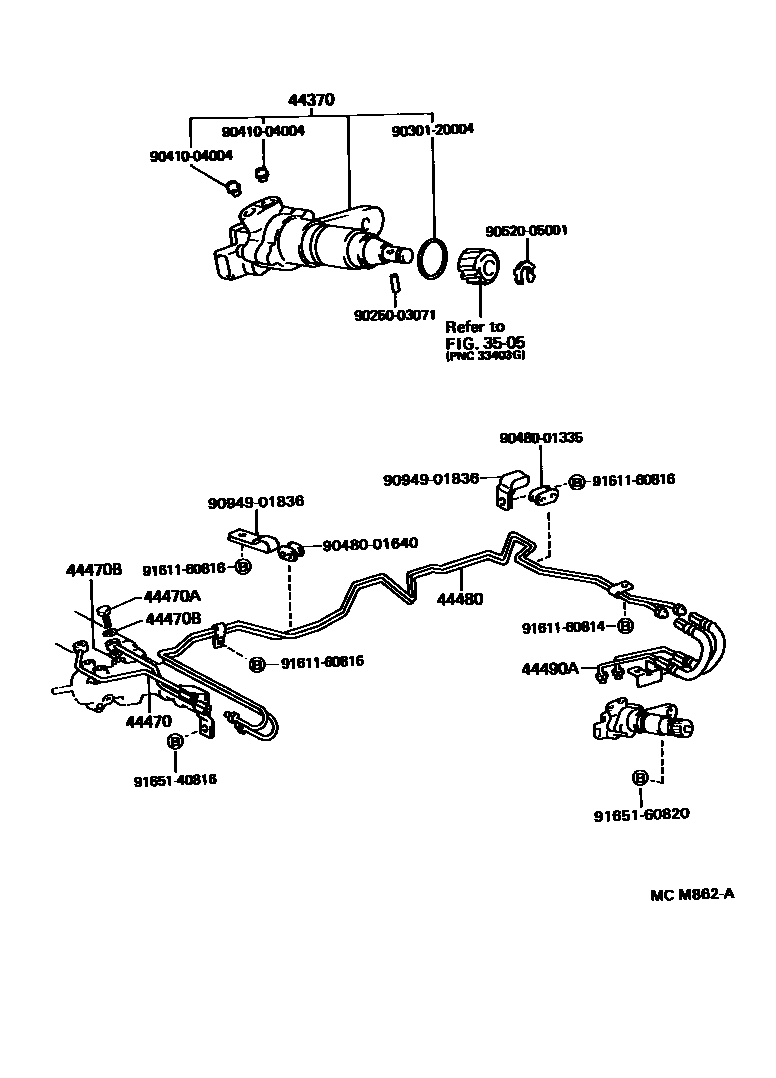

TROCHOID PUMP & TUBE(POWER STEERING)

0001 1 0002 1

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

44370PUMP ASSY, TROCHOID W/O GEAR

main44370-28010iCR21,22,YR21..Z199201-199408

main44370-28020iCR30,31,YR30..Z199201-199408

44470TUBE ASSY, TROCHOID PUMP TO GEAR, NO.1

main44470-28010iCR21,22,YR21..Z199201-199408

main44470-28020iCR30,31,YR30..Z199201-199408

44470ABOLT, UNION(FOR TROCHOID PUMP TO GEAR TUBE)

main90401-10021×2iCR21,22,30,31,YR21,30..Z199201-199408

44470BGASKET(FOR TROCHOID PUMP TO GEAR TUBE)

main90430-10008×4iCR21,22,30,31,YR21,30..Z199201-199408

44480TUBE ASSY, TROCHOID PUMP TO GEAR, NO.2

main44480-28010iCR21,22,YR21..Z199201-199408

main44480-28020iCR30,31,YR30..Z199201-199408

44490ATUBE ASSY, TROCHOID PUMP TO GEAR, NO.3

main44490-28010iYR21..Z199201-199408

main44490-28020iCR21,22..Z199201-199408

main44490-28030iYR30..Z199201-199408

main44490-28040iCR30,31..Z199201-199408

9025003071

main90250-03071

9030120004

main90301-20004

9041004004

main90410-04004

9048001335

main90480-01335

9048001640

main90480-01640

9052005001

main90520-05001

9094901836

main90949-01836

9161160814

main91611-60814

9161160816

main91611-60816

9165140816

main91651-40816

9165160820

main91651-60820

18 parts on this diagram · 2 diagrams in section
