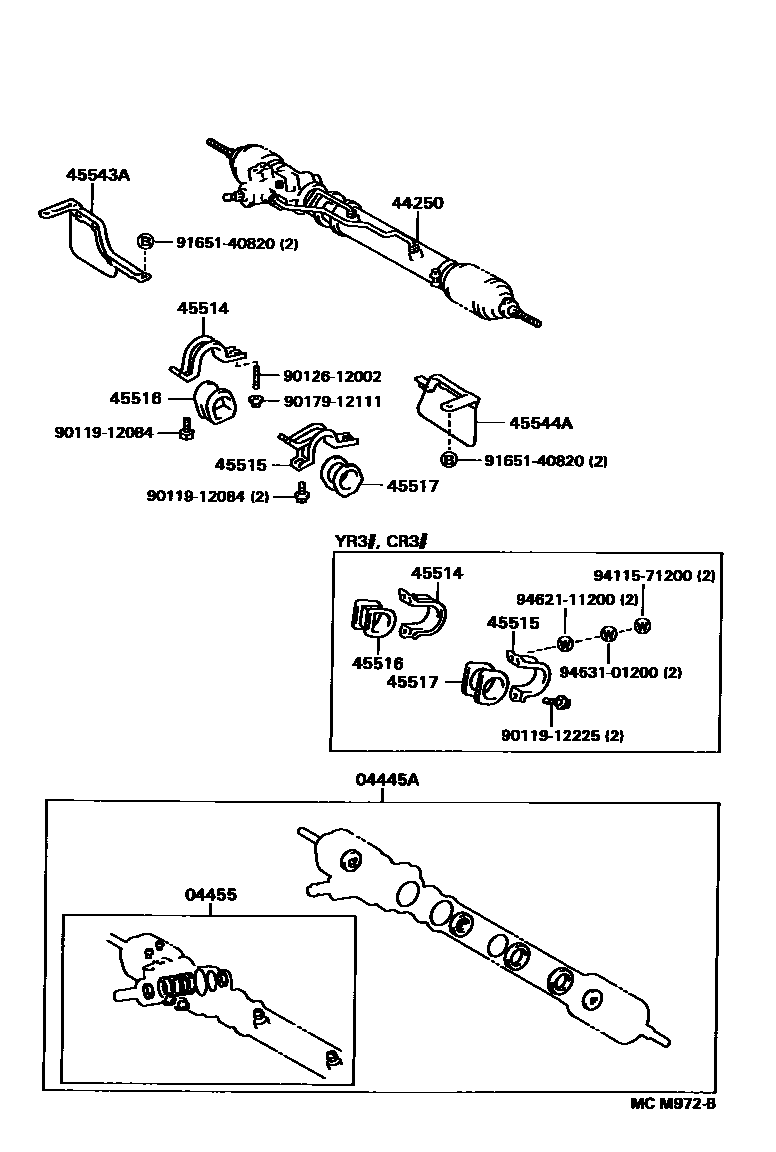

FRONT STEERING GEAR & LINK

0001 1���-������� 0002 1���-������� 0003 1���-������� 0004 1���-������� 0005 1 0006 1 0007 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28041iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199408

main04445-28051iCR21,22,30,31,YR21,30..Z199201-199408

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199408

main04455-28030iCR21,22,30,31,YR21,30..Z199201-199408

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28200iCR22,YR21199408-199610

main44250-28210iCR27,28,29,KR27,YR25199201-199610

main44250-28240iCR21,22,YR21..Z199201-199408

main44250-28250iCR30,31,YR30..D,E,G,Q199201-199408

main44250-28260iCR36,37,38199201-199610

main44250-28270iCR30,31,YR30..Z199201-199408

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28010iCR3#,YR30199201-199610

main45514-28020iCR2#,KR27,YR2#199201-199610

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-27010iCR27,KR27,YR25199309-199610

main45515-27020iCR22,29,YR21; CR27,KR27,YR25199309-199610

main45515-28010iCR3#,YR30199201-199610

main45515-28020iCR27,KR27,YR25199309-199610

main45515-28030iCR22,29; CR27,KR27,YR25; YR21199309-199610

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27010iCR2#,KR27,YR2#199201-199610

main45516-28010iCR3#,YR30199201-199610

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27010iCR27,KR27,YR25199201-199610

main45517-27020iCR21,22,28,29,YR21; CR27,KR27,YR25199201-199610

main45517-28010iCR3#,YR30199201-199610

45543APROTECTOR, STEERING RACK BOOT, RH

main45543-28030iCR2#,KR27,YR25; YR21199201-199610

45544APROTECTOR, STEERING RACK BOOT, LH

main45544-28050iCR2#,KR27,YR25; YR21199201-199610

9011912084

main90119-12084

9011912225

main90119-12225

9012612002

main90126-12002

9017912111

main90179-12111

9165140820

main91651-40820

9411571200

main94115-71200

9453101200

main94531-01200

9462111200

main94621-11200

17 parts on this diagram · 7 diagrams in section
