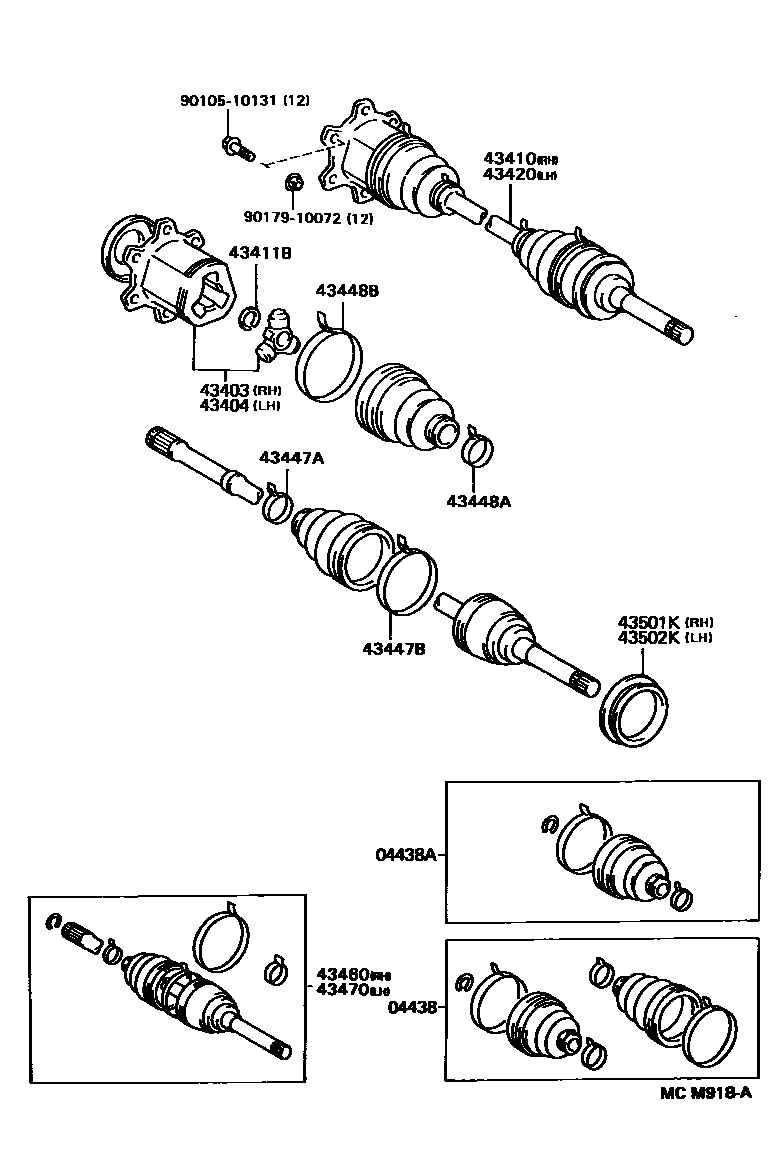

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
43403JOINT SET, FRONT AXLE INBOARD, RH
43404JOINT SET, FRONT AXLE INBOARD, LH
43410SHAFT ASSY, FRONT DRIVE, RH
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43420SHAFT ASSY, FRONT DRIVE, LH
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43501KSEAL, DUST (FOR FRONT AXLE HUB RH)
43502KSEAL, DUST (FOR FRONT AXLE HUB LH)
9010510131
main90105-10131
9017910072
main90179-10072
17 parts on this diagram · 1 diagram in section
