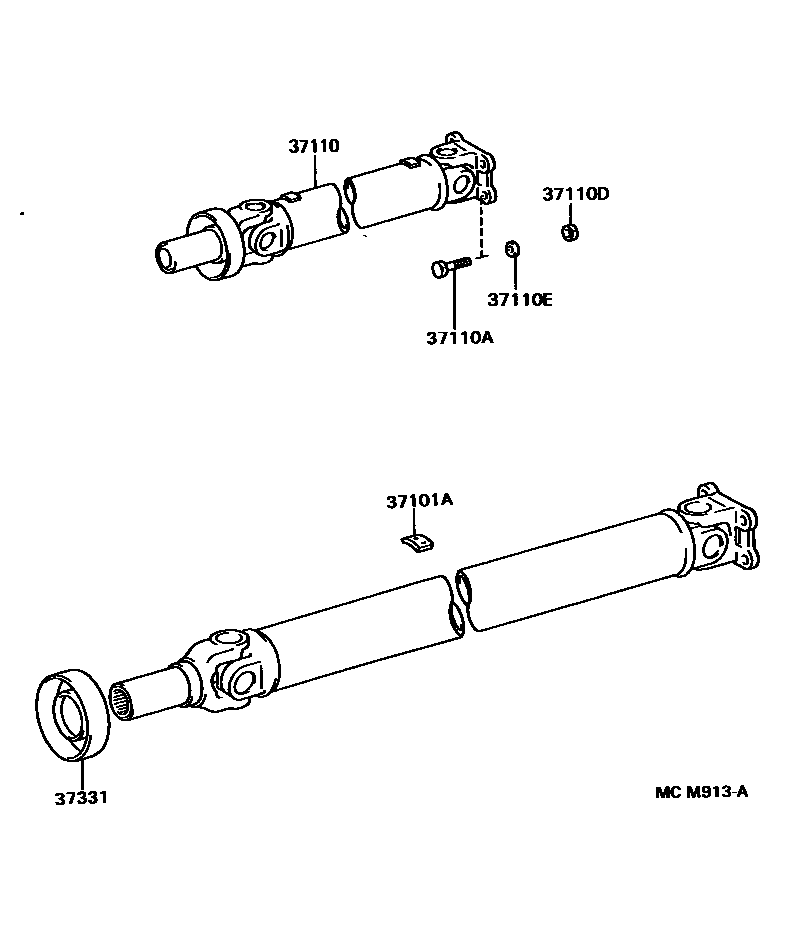

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01136iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01140iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01147iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01148iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01149iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01150iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01151iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01152iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01153iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01154iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01155iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01156iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01157iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01158iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01184iCR3#,YR30199201-199610

main90937-01191iCR3#,YR30199201-199610

main90937-01192iCR3#,YR30199201-199610

main90937-01193iCR3#,YR30199201-199610

main90937-01194iCR3#,YR30199201-199610

main90937-01198iCR3#,YR30199201-199610

main90937-01199iCR3#,YR30199201-199610

main90937-01200iCR3#,YR30199201-199610

main90937-01201iCR3#,YR30199201-199610

main90937-01202iCR3#,YR30199201-199610

main90937-01203iCR3#,YR30199201-199610

main90937-01204iCR3#,YR30199201-199610

main90937-01205iCR3#,YR30199201-199610

main90937-01268iCR3#,YR30199201-199610

main90937-01269iCR3#,YR30199201-199610

main90937-01270iCR3#,YR30199201-199610

main90937-01271iCR3#,YR30199201-199610

main90937-01272iCR3#,YR30199201-199610

main90937-01273iCR3#,YR30199201-199610

main90937-01274iCR3#,YR30199201-199610

main90937-01290iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01291iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01292iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01293iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01294iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01295iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01296iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01297iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01298iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01299iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01300iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01301iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01302iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01303iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01304iCR2#,3#,KR27,YR2#,30199201-199610

main90937-01396iCR3#,YR30199201-199610

main90937-01397iCR3#,YR30199201-199610

main90937-01398iCR3#,YR30199201-199610

main90937-01399iCR3#,YR30199201-199610

main90937-01400iCR3#,YR30199201-199610

main90937-01401iCR3#,YR30199201-199610

main90937-01402iCR3#,YR30199201-199610

37110SHAFT ASSY, PROPELLER

main37110-27160iKR27..MTM199201-199610

main37110-28140iYR2#..MTM199201-199610

main37110-28160iCR2#..MTM199201-199610

main37110-28170iCR2#..ATM199201-199610

main37110-28210iYR30199201-199610

main37110-28220iCR3#..MTM199201-199610

main37110-28230iCR3#..ATM199201-199610

main37110-28370iYR2#..ATM199201-199610

main37110-28380iKR27..ATM199201-199610

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×4iCR2#,KR27,YR2#199201-199610

main90105-10085×4iCR3#,YR30199201-199610

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015×4iCR2#,KR27,YR2#199201-199610

main90179-10059×8iCR3#,YR30199201-199610

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002×8iCR3#,YR30199201-199610

main94512-00800×4iCR2#,KR27,YR2#199201-199610

37331COVER, SLIDING SHAFT DUST

main37331-26010iCR3#,YR30199201-199610

main37331-30010iCR2#,KR27,YR2#199201-199610

6 parts on this diagram · 2 diagrams in section
