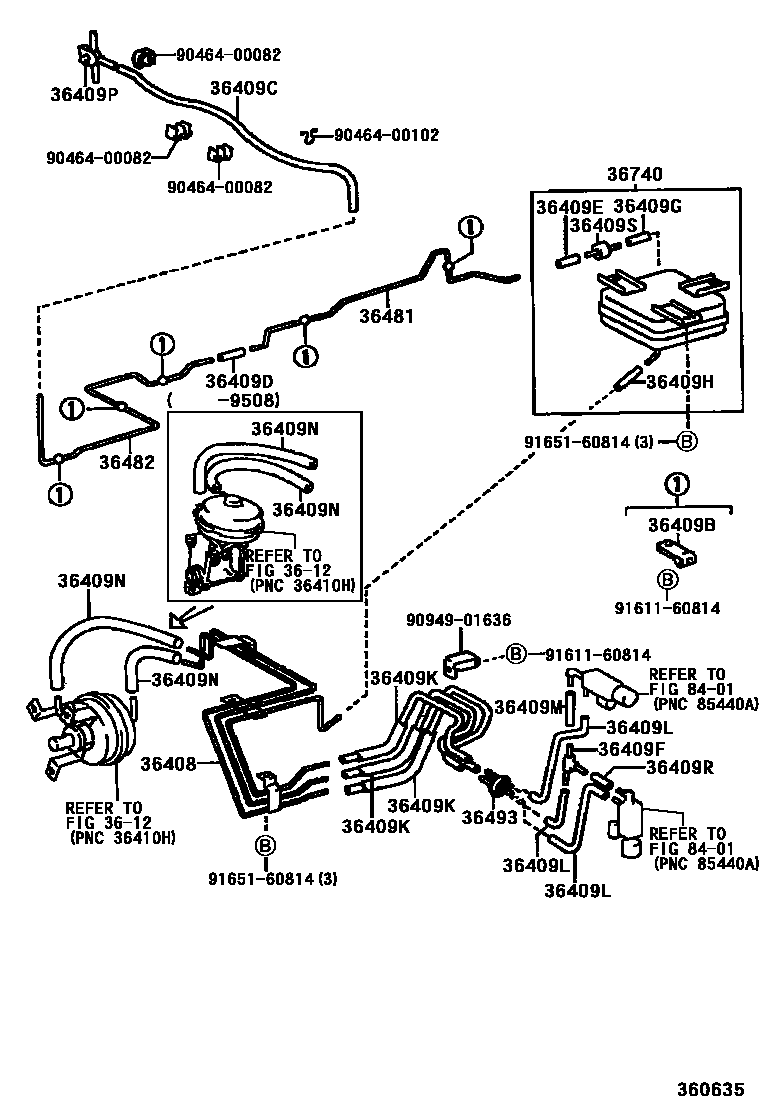

TRANSFER VACUUM PIPING

0001 1 0002 1 0003 1

3612DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

→ Go to FIG 36-12

36408TUBE SUB-ASSY, TRANSFER VACUUM

main36408-28020iCR36,37,38..ATM199201-199610

main36408-28030iCR36,37,38..MTM199201-199610

main36408-28040iCR30,31,YR30..ATM199201-199610

main36408-28050iCR30,31..MTM199201-199610

36409BCLAMP, VACUUM TUBE

main90461-06199×5iCR3#,YR30199201-199610

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main90445-08318iCR31,38199309-199610

main90445-08319iCR36199309-199610

main90999-92004iYR30199201-199610

main90999-92006iCR3#199201-199309

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main90999-92002iCR3#,YR30199201-199610

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main90999-92002iCR3#,YR30199201-199501

36409FWAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)

main90413-06004iCR3#,YR30199201-199610

36409GHOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

main90445-10081iCR3#199508-199610

main90999-92002iYR30199508-199610

main95411-49913iCR3#199508-199610

36409HHOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

main90445-10034iCR3#,YR30199201-199508

36409KHOSE, VACUUM, NO.6 (FOR FRONT DRIVE SHIFT)

main90447-10009iCR36..ATM; CR36..MTM; CR38199508-199610

main90447-10010iCR36,37,38199201-199610

main90447-10011iCR36,38199508-199610

main90447-10012iCR31,YR30199501-199610

main90447-10013iCR30,31,YR30199201

MARK 1

main90447-10014iCR30,31,YR30199201

MARK 2

36409LHOSE, VACUUM, NO.7 (FOR FRONT DRIVE SHIFT)

main90445-10037iCR3#,YR30199201-199610

main90445-10038iCR3#,YR30199201-199610

main90445-10039iCR3#,YR30199201-199610

36409MHOSE, VACUUM, NO.8 (FOR FRONT DRIVE SHIFT)

main90445-10035iCR3#,YR30199201-199610

36409NHOSE, VACUUM, NO.9 (FOR FRONT DRIVE SHIFT)

main90447-10009iCR36..ATM;CR31,38,YR30199508-199610

main90447-10015iCR3#..MTM199201-199508

main90447-10016iCR3#..MTM199201-199508

main90447-10017iCR3#,YR30..ATM199201-199302

main90447-10018iCR3#,YR30..ATM199302-199508

main90447-10022iCR3#..MTM199508-199610

main90447-10025iCR3#,YR30..ATM199508-199610

36409PWAY, 3, NO.2 (FOR FRONT DRIVE SHIFT)

main90413-04005iYR30199201-199610

36409RHOSE, VACUUM, NO.10 (FOR FRONT DRIVE SHIFT)

main90445-10025iCR3#,YR30199201-199610

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90917-10049iCR3#,YR30199201-199508

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-28020iCR3#,YR30199201-199610

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-28020iCR3#199201-199610

main36482-28030iYR30199201-199610

36493GROMMET, TRANSFER VACUUM

main36493-28010iCR3#,YR30199201-199610

36740TANK ASSY, TRANSFER VACUUM

main36740-28020iCR3#,YR30199201-199508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046400082

main90464-00082

9046400102

main90464-00102

9094901636

main90949-01636

9161160814

main91611-60814

9165160814

main91651-60814

26 parts on this diagram · 3 diagrams in section
