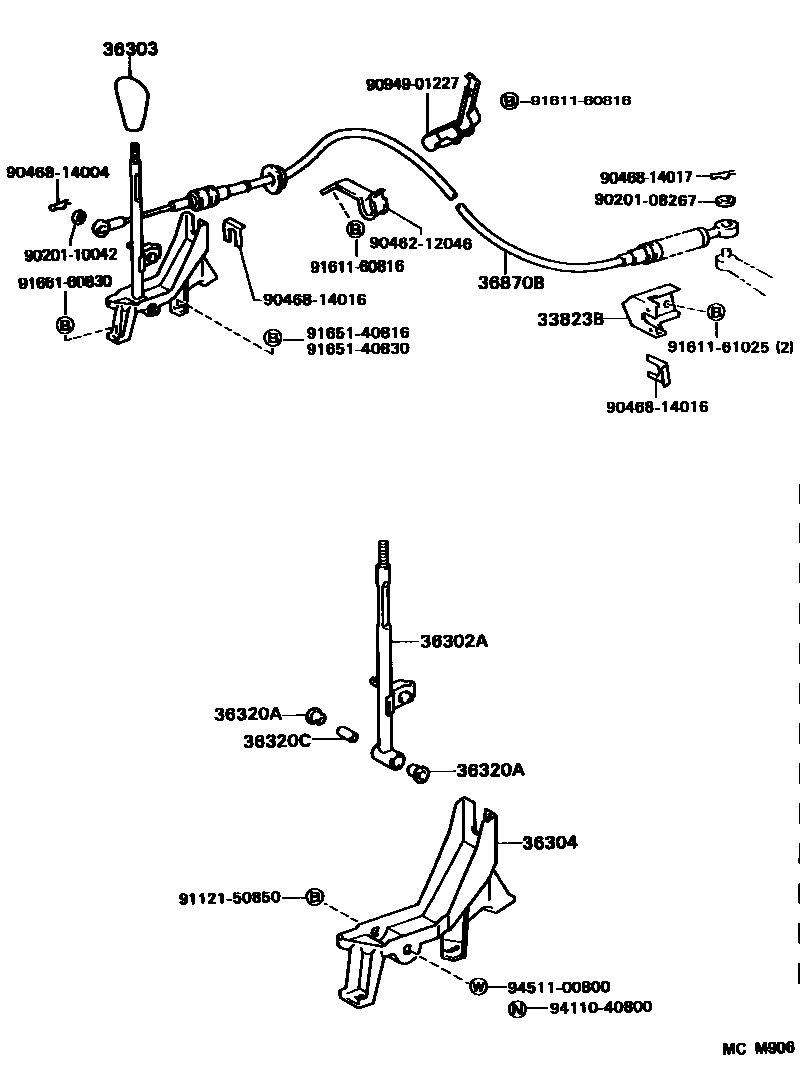

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iCR3#,YR30199201-199610

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main33501-28100iCR3#,YR30199201-199610

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-27010-B0iCR3#..B,D199201-199610

GRAY,TRIM1#

main36303-28020-13iCR3#,YR30..E,F,N,Q199201-199308

GRAY,TRIM1#

main36303-28020-B0iCR30,31,36,37,YR30..E,F,G,N,Q199308-199610

BLUISH GRAY,TRIM1#

main36303-28020-E0iCR30,31,YR30..E,Q,Z199201-199610

GREIGE,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-28130iCR3#,YR30199201-199610

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-11003×2iCR3#,YR30199201-199610

36320CCOLLAR (FOR TRANSFER SHIFT LEVER)

main90387-08067iCR3#,YR30199201-199610

36870BCABLE ASSY, TRANSFER CONTROL

main36870-28020iCR3#..MTM199201-199602

main36870-28030iYR30199201-199610

main36870-28040iCR3#..ATM199201-199602

main36870-28050iCR3#..MTM199602-199610

main36870-28060iCR3#..ATM199602-199610

9020108267

main90201-08267

9020110042

main90201-10042

9046212046

main90462-12046

9046814004

main90468-14004

9046814016

main90468-14016

9046814017

main90468-14017

9094901227

main90949-01227

9112150850

main91121-50850

9161160816

main91611-60816

9161161025

main91611-61025

9165140816

main91651-40816

9165140830

main91651-40830

9166160830

main91661-60830

9411040800

main94110-40800

9451100800

main94511-00800

22 parts on this diagram · 4 diagrams in section
