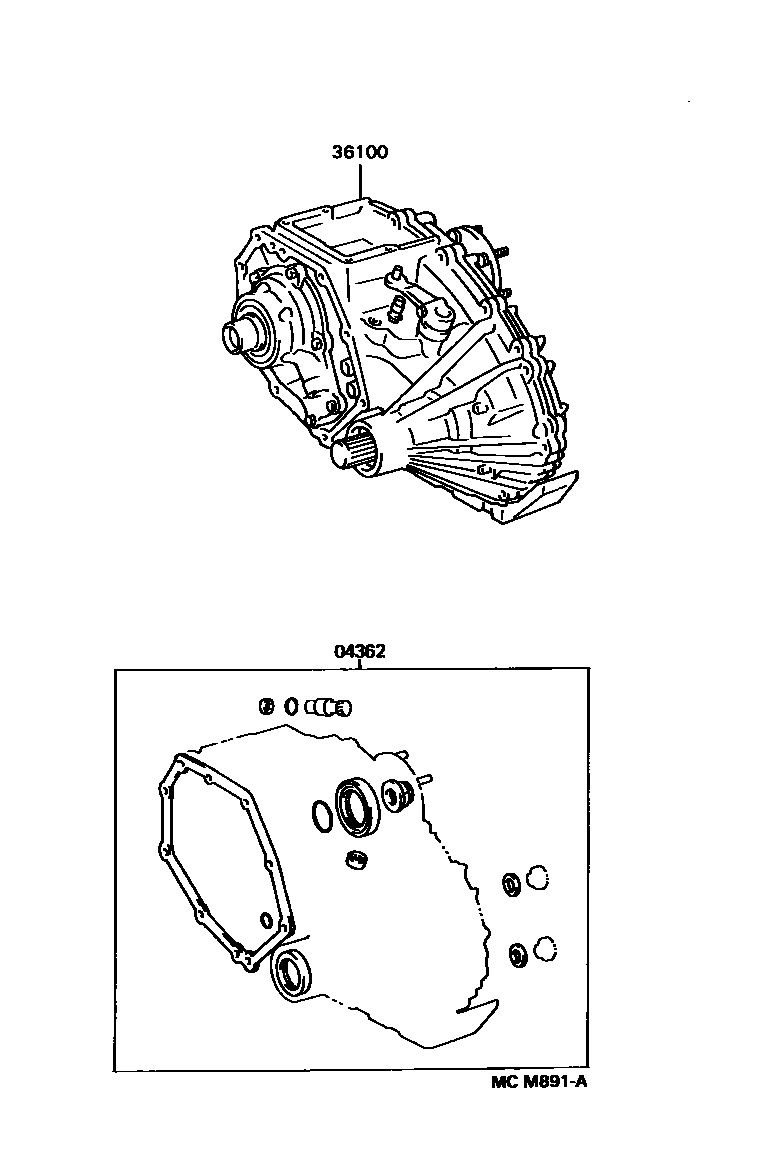

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-28020iCR3#,YR30199508-199610

main04362-28030iCR3#,YR30199201-199508

36100TRANSFER ASSY

main36100-25010iCR31,38,YR30..ATM199508-199610

main36100-26051iCR30,36..ATM..(D,E,N,Q)199201-199508

main36100-26071iCR30,31,YR30..Z199201-199408

main36100-26081iCR31,37,38,YR30..ATM..(B,E,F,G,Q)199201-199408

main36100-26091iCR30,31,37,38..MTM199201-199508

main36100-26101iCR36..MTM199201-199508

main36100-28260iCR31,38..MTM199508-199610

main36100-28270iCR36..MTM199508-199610

main36100-28280iCR36..ATM199508-199610

2 parts on this diagram · 1 diagram in section
