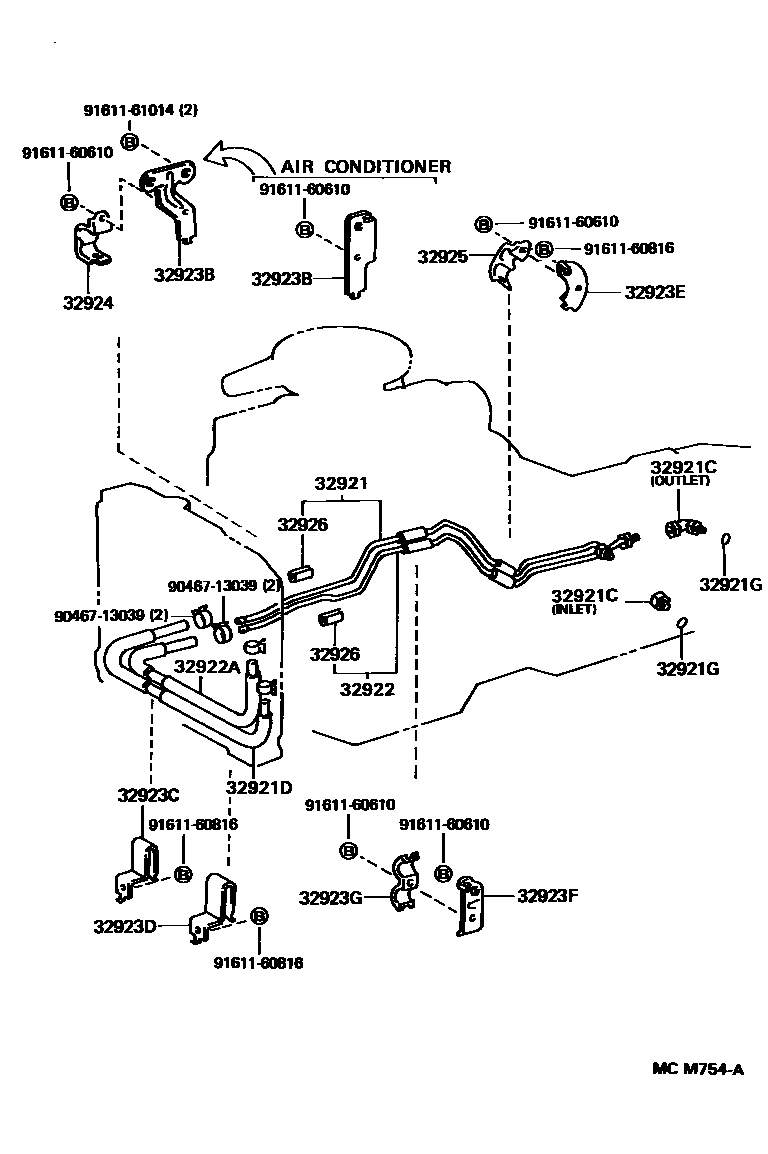

OIL COOLER & TUBE (ATM)

0001 1A42D 0002 1A42D,A42DL 0003 1A45DF 0004 1A44DL 0005 1A45DF 0007 1A45DF,��(��� �-�)

32921TUBE, OIL COOLER INLET, NO.1

main32921-28031iCR2#..ATM199201-199610

main32921-28090iCR3#..ATM199201-199610

main32921-28121iKR27..ATM199201-199610

main32921-28130iYR2#..ATM199201-199610

main32921-28140iYR30199201-199610

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iCR2#,KR27,YR2#..ATM199201-199610

INLET

main90407-16010iCR2#,3#,KR27,YR2#,30..ATM199201-199610

OUTLET

main90407-16034iCR3#,YR30..ATM199201-199610

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-27180iYR2#..ATM199201-199610

main32941-28101iCR2#..ATM199201-199610

main32941-28121iYR30199201-199610

main32941-28141iCR3#..ATM199201-199610

main32941-28230iKR27..ATM199201-199610

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCR2#,3#,KR27,YR2#,30..ATM199201-199610

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28031iCR2#..ATM199201-199610

main32922-28090iCR3#..ATM199201-199610

main32922-28111iKR27..ATM199201-199610

main32922-28120iYR2#..ATM199201-199610

main32922-28130iYR30199201-199610

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-28100iYR2#..ATM199201-199610

main32942-28111iCR2#..ATM199201-199610

main32942-28131iYR30199201-199610

main32942-28151iCR3#..ATM199201-199610

main32942-28230iKR27..ATM199201-199610

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-28040iCR2#,3#..ATM199201-199610

main32923-28050iYR25..ATM199201-199610

main32923-28060iYR21,30..ATM; YR25..ATM199201-199610

main32923-28080iKR27..ATM199201-199610

main32923-28090iKR27..ATM199201-199610

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32928-28010iYR30199201-199610

main32929-28010iCR2#,3#..ATM199201-199610

main90949-01392iYR2#..ATM199201-199610

main90949-01800iKR27..ATM199201-199610

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main90461-08628iYR30199201-199610

main90949-01392iCR2#..ATM199201-199610

main90949-01430iKR27,YR2#..ATM199201-199610

main90949-01575iCR3#..ATM199201-199610

32923ECLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6

main32925-28010iKR27..ATM199201-199610

32923FCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7

main32924-28050iKR27..ATM199201-199610

32923GCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8

main90462-12044iKR27..ATM199201-199610

32924CLAMP, OIL COOLER TUBE, NO.2

main32929-28010iKR27,YR2#,30..ATM199201-199610

main90462-12044iCR2#,3#..ATM199201-199610

32925CLAMP, OIL COOLER TUBE, NO.3

main32924-27010iCR2#,3#..ATM199201-199610

main32929-28010iKR27..ATM199201-199610

main90461-08628iYR2#,30..ATM199201-199610

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iCR2#,3#..ATM; KR27..ATM; YR2#,30..ATM199201-199610

9046713039

main90467-13039

9161160610

main91611-60610

9161160816

main91611-60816

9161161014

main91611-61014

19 parts on this diagram · 6 diagrams in section
