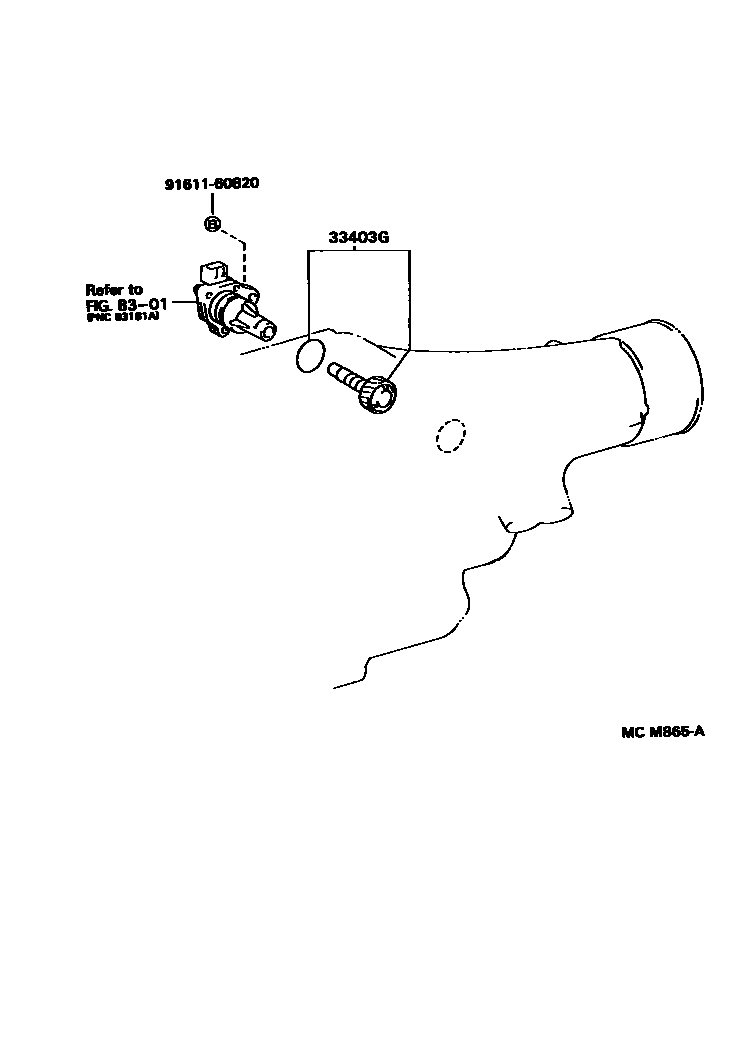

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A44DL,A45DF 0002 1A45DF 0003 1A42DL,A44DL,A45DF

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29375iCR31,38,YR30..ATM199408-199610

main33403-29385iCR30,36..ATM..(D,E,N,Q)199201-199610

main33482-29145iCR30..Z199201-199309

main33482-29165iCR21,22,YR21..Z199201-199408

main33482-29215iCR21,22,28,29,YR21..ATM..(B,E,F,G,Q)199201-199408

main33482-29225iKR27..ATM199201-199610

main33482-29235iYR25..ATM199201-199610

main33482-29245iCR31,YR30..Z199201-199408

main33482-39395iCR27..ATM199201-199610

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

3 parts on this diagram · 3 diagrams in section
