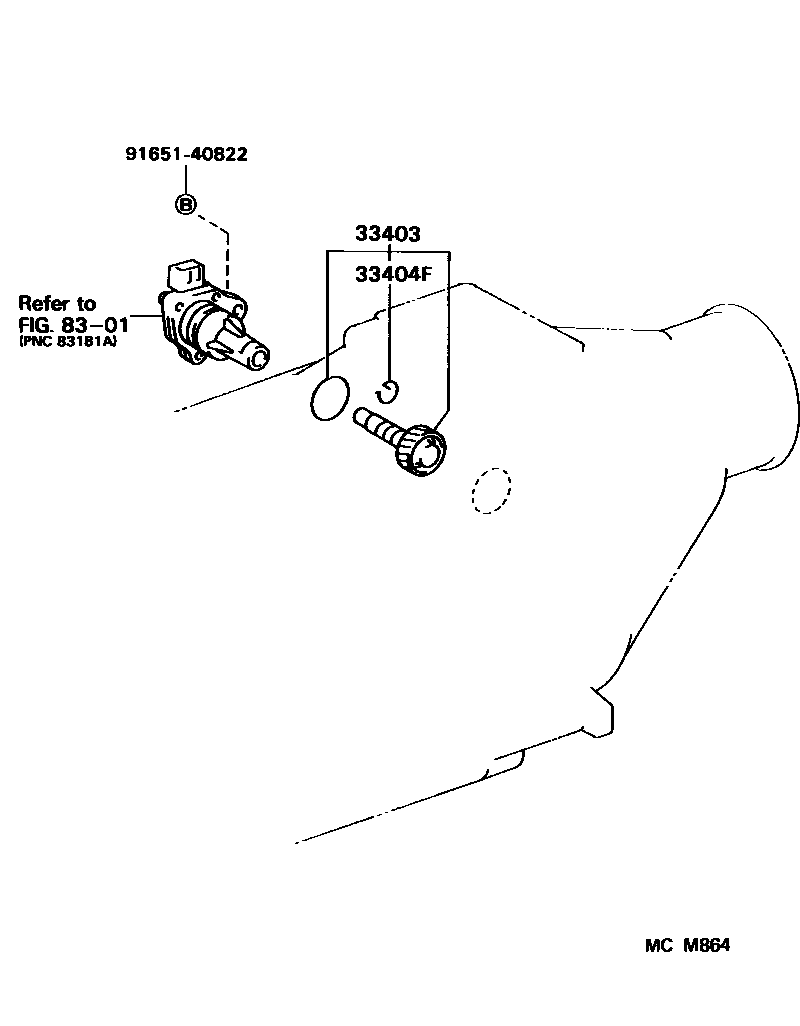

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29355iKR27..MTM199201-199610

main33403-29375iCR30,37..MTM199201-199309

main33403-29385iCR36..MTM199201-199610

main33403-29445iCR31..MTM199309-199610

main33403-29485iCR38..MTM199309-199610

main33403-39315iCR21,28,YR21..MTM199201-199610

main33403-39325iCR22,29..MTM199309-199610

main33403-39335iCR27,YR25..MTM199201-199610

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCR2#,3#,KR27,YR2#..MTM199201-199610

8301METER

→ Go to FIG 83-01

9165140822

main91651-40822

4 parts on this diagram · 1 diagram in section
