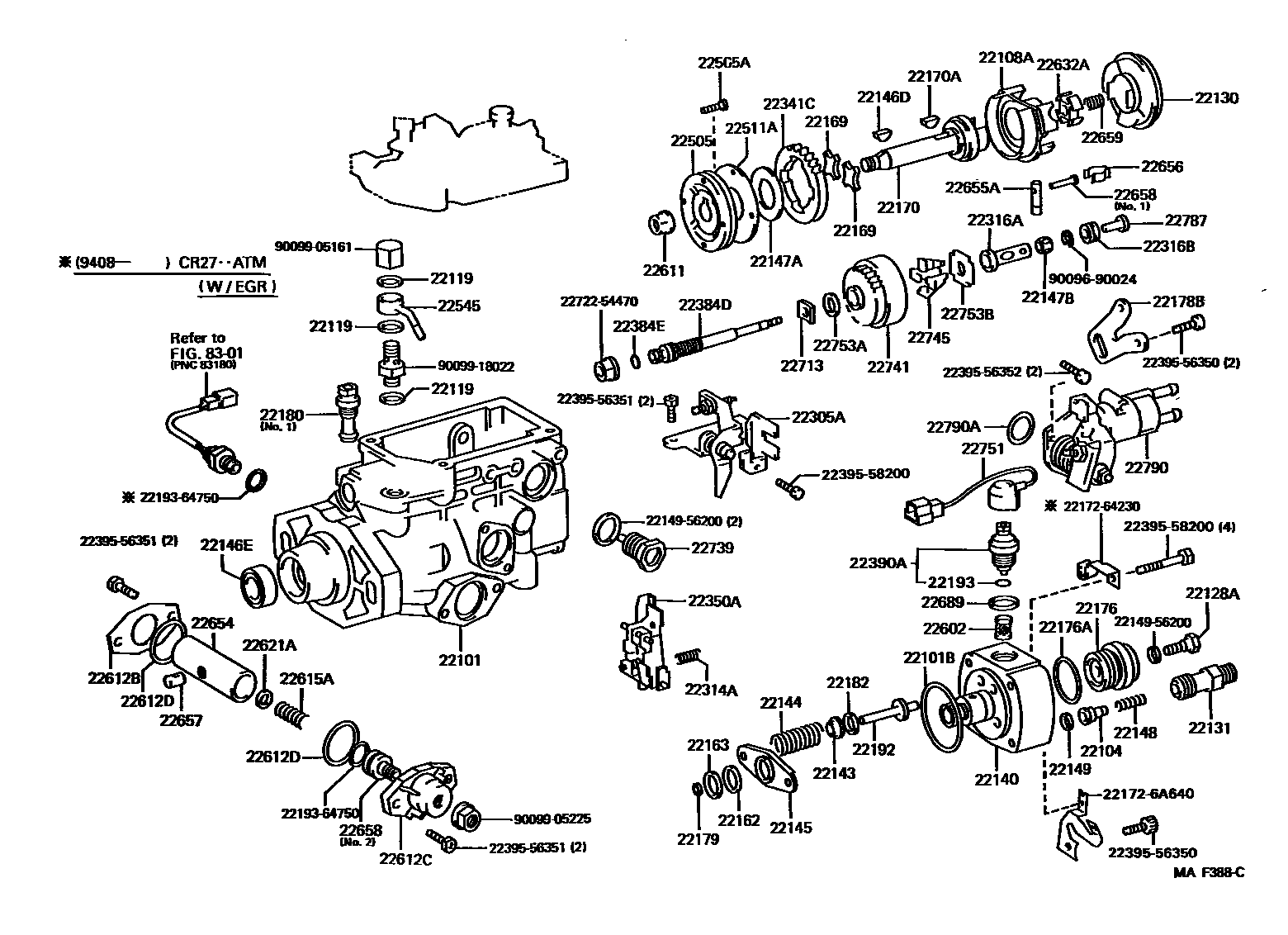

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-54260i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

main22101-64010i2C..CR27,36..ATM199201-199610

main22101-64020i2C..CR27..ATM199408-199610

*98

main22101-64270i2C..CR27,36..MTM199201-199610

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i2C#,3CT..CR2#,3#199201-199610

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A290×4i2C..CR27,36199201-199610

main22104-6A640×4i2CT..CR21,28,30,37199201-199309

main22104-6D480×4i3CT..CR22,29,31,38199309-199412

main22104-6D481×4i3CT..CR22,29,31,38199505-199610

main22104-6D670×4i3CT..CR22,29,31,38199412-199505

22108ARING SUB-ASSY, ROLLER

main22108-54180i2C#,3CT..CR2#,3#199201-199610

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×6i2CT..CR21,28;2CT..CR30,37..ATM199201-199309

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i2C#,3CT..CR2#,3#199201-199610

22130CAMPLATE SUB-ASSY, FACE

main22130-6A510i2C..CR27,36..ATM;2CT..CR21,28,30,37199201-199202

main22130-6A770i2C,3CT..CR2#,3#199309-199610

main22130-6D340i2C..CR27,36..MTM199201-199202

22131HOLDER, DELIVERY VALVE

main22190-6A680×4i2C#,3CT..CR2#,3#199201-199610

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-6A511i2C..CR27,36199201-199309

main22140-6A590i2CT..CR21,28,30,37199201-199309

main22140-6D050i3CT..CR22,29,31,38199309-199412

main22140-6D480i3CT..CR22,29,31,38199412-199610

main22140-6D500i2C..CR27,36199309-199610

22143SEAT, SPRING UPPER

main22143-54010×2i2C#,3CT..CR2#,3#199201-199610

22144SPRING, PUMP PLUNGER

main22144-54190×2i2C#,3CT..CR2#,3#199201-199610

22145SEAT, SPRING, LOWER

main22145-54010i2C#,3CT..CR2#,3#199201-199610

22146DKEY(FOR DRIVE GEAR)

main90099-13018i2C#,3CT..CR2#,3#199201-199610

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i2C#,3CT..CR2#,3#199201-199610

22147AWASHER, DRIVE SHAFT

main22161-54010i2C#,3CT..CR2#,3#199201-199610

22147BRING, GOVERNOR SLEEVE

main22147-54290i2C#,3CT..CR2#,3#199201-199610

22148SPRING, DELIVERY VALVE

main22148-54010×4i2C#,3CT..CR2#,3#199201-199610

22149GASKET, DELIVERY VALVE

main22149-56351×4i2C#,3CT..CR2#,3#199201-199610

22162PLATE, PLUNGER UPPER

main22162-54010i2C#,3CT..CR2#,3#199201-199610

22163PLATE, PLUNGER LOWER

main22163-54010i2C#,3CT..CR2#,3#199201-199610

22169JOINT, RUBBER

main22169-54180×2i2C#,3CT..CR2#,3#199201-199610

22170SHAFT SUB-ASSY, DRIVE

main22170-6A510i2C#,3CT..CR2#,3#199201-199610

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i2C#,3CT..CR2#,3#199201-199610

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2C#,3CT..CR2#,3#199201-199610

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main90099-14052i2C#,3CT..CR2#,3#199201-199610

sub22193-54772

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-64010i2C#,3CT..CR2#,3#199201-199610

22179SHIM, PLUNGER ADJUSTING

main22179-54010i2C#,3CT..CR2#,3#199201-199610

main22179-54011i2C#,3CT..CR2#,3#199201-199610

main22179-54012i2C#,3CT..CR2#,3#199201-199610

main22179-54013i2C#,3CT..CR2#,3#199201-199610

main22179-54014i2C#,3CT..CR2#,3#199201-199610

main22179-54015i2C#,3CT..CR2#,3#199201-199610

main22179-54016i2C#,3CT..CR2#,3#199201-199610

main22179-54017i2C#,3CT..CR2#,3#199201-199610

main22179-54018i2C#,3CT..CR2#,3#199201-199610

main22179-54019i2C#,3CT..CR2#,3#199201-199610

main22179-54020i2C#,3CT..CR2#,3#199201-199610

22180VALVE SUB-ASSY, REGULATOR

main22180-54010i2C..CR36..MTM;2CT..CR21,28,30,37199201-199610

main22180-64851i2C#..CR30,36,37..MTM199201-199610

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010×2i2C#,3CT..CR2#,3#199201-199610

main22183-54010×2i2C#..CR21,27,28,30,36,37199201-199610

main22184-54010×2i2C#..CR21,27,28,30,36,37199201-199610

main22185-54010×2i2C#..CR21,27,28,30,36,37199201-199610

main22186-54010×2i2C#..CR21,27,28,30,36,37199201-199610

main22187-54010i3CT..CR22,29,31,38199309-199610

main22188-54010×2i2C#..CR21,27,28,30,36,37199201-199610

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010×2i2C#,3CT..CR2#,3#199201-199610

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-64010i2C#,3CT..CR2#,3#199201-199610

22305AIDLE-UP SUB-ASSY

main22305-6A490i2C#..CR21,27,28,30,36,37199201-199610

main22305-6D480i3CT..CR22,29,31,38199309-199610

22314ASPRING, LEVER SUPPORT

main22314-54010×2i2C#..CR21,27,28,30,36,37199201-199610

22316ASLEEVE, GOVERNOR

main22316-54360i2CT..CR21,28,30,37199201-199207

sub22316-6D050

main22316-55240i2C..CR36;2C..CR27..ATM199505-199610

main22316-6A680i2C..CR36;2C..CR27..ATM199207-199309

main22316-6D090i3CT..CR22,29,31,38199309-199610

main22316-6D500i2C..CR27..MTM199510-199610

main22316-6D840i2C..CR27..ATM199508-199610

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i2C#,3CT..CR2#,3#199201-199610

22341CGEAR, GOVERNOR DRIVE

main22341-54010i2C#,3CT..CR2#,3#199201-199610

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-64010i2C#..CR2#,3#..ATM199201-199309

main22350-64020i2C#..CR2#..MTM199201-199309

main22350-64850i2C..CR36..MTM199201-199309

main22350-6A590i2CT..CR30,37..MTM199201-199309

main22350-6D480i3CT..CR22,29,31,38199309-199610

main22350-6D500i2C..CR27..MTM199309-199610

main22350-6D510i2C..CR36..MTM199309-199610

main22350-6D520i2C..CR27,36..ATM199309-199610

22384DSHAFT, GOVERNOR

main22380-54020i2CT..CR21,28,30,37..MTM;2C,3CT..CR22,27,29,31,36,38199201-199610

main22380-55180i2CT..CR21,28,30,37..ATM199201-199309

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i2C#,3CT..CR2#,3#199201-199610

22390ASOLENOID ASSY, FUEL CUT

main22019-6A510i2C#,3CT..CR2#,3#199201-199610

sub22019-6A511

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i2C#,3CT..CR2#,3#199201-199610

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723×2i2C#,3CT..CR2#,3#199201-199610

22511ACOVER, FEED PUMP

main22511-54020i2C#,3CT..CR2#,3#199201-199610

22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)

main22548-6A040i2C#,3CT..CR2#,3#199201-199610

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i2C#,3CT..CR2#,3#199201-199610

22611NUT, TIMER ROUND

main90099-05166i2C#,3CT..CR2#,3#199201-199610

22612BCOVER, TIMER

main22612-56350i2C#,3CT..CR2#,3#199201-199610

22612CCOVER, TIMER

main22612-17010i2C..CR27,36199512-199610

main22612-17020i3CT..CR22,29,31,38199512-199610

main22612-54450i2C#..CR2#,3#199201-199309

22612DRING, O(FOR TIMER COVER)

main22193-17840×4i2C..CR27..ATM199510-199610

*98

main90099-14051×2i2C#,3CT..CR2#,3#199201-199311

main90099-14105×2i2C,3CT..CR2#,3#199311-199510

22615ASPRING, TIMER OUTER

main22615-17030i3CT..CR22,29,31,38199512-199610

main22615-18020i3CT..CR22,29,31,38199512-199610

main22615-54490i2C#..CR2#,3#199201-199309

main22615-55200i3CT..CR22,29,31,38199309-199512

main22615-6D150i2C..CR27,36199309-199610

22621AWASHER, TIMER ADJUSTING

main22625-54272i2C#..CR21,27,28,30,36,37199201-199610

22632ACOUPLING, INJECTION PUMP

main22632-54010i2C#,3CT..CR2#,3#199201-199610

22654PISTON, TIMER

main22582-6D480i3CT..CR22,29,31,38199309-199512

main22582-6D481i3CT..CR22,29,31,38199512-199610

main22654-55050i2C..CR27,36199201-199309

main22654-55130i2C..CR27,36199309-199610

main22654-64740i2CT..CR21,28,30,37199201-199309

22655APIN, TIMER SLIDE

main22655-54010i2C#,3CT..CR2#,3#199201-199610

22656CLIP, TIMER

main22656-17840i2C..CR27;2C..CR36..MTM199510-199610

main22656-54010i2C..CR36..ATM199510-199610

main22656-54490i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

22657CLIP, TIMER

main22657-54010i2C#,3CT..CR2#,3#199201-199610

22658STOPPER, TIMER

main22658-17010i2C,3CT..CR2#,3#199309-199512

main22658-17020i3CT..CR22,29,31,38199512-199610

main22658-17840i2C..CR36..MTM;2C,3CT..CR2#,31,38199510-199610

main22658-54010i2C..CR36..ATM199510-199610

main22658-54450i2C#..CR2#,3#199201-199309

22659SPRING, COUPLING

main22659-64150i2C#,3CT..CR2#,3#199201-199610

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i2C#,3CT..CR2#,3#199201-199610

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i2C#,3CT..CR2#,3#199201-199610

main22714-54010i2C#,3CT..CR2#,3#199201-199610

main22715-54010i2C#,3CT..CR2#,3#199201-199610

main22716-54010i2C#,3CT..CR2#,3#199201-199610

main22717-54010i2C#,3CT..CR2#,3#199201-199610

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020×2i2C#,3CT..CR2#,3#199201-199610

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i2C#,3CT..CR2#,3#199201-199610

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010×4i2C#,3CT..CR2#,3#199201-199610

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i2C..CR27,36199201-199610

main22751-6A220i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i2C#,3CT..CR2#,3#199201-199610

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i2C..CR27;2C#..CR21,28,3#..ATM199201-199309

main22753-54290i2C#..CR21,28,3#..MTM199201-199203

22787PLUG, GOVERNOR SLEEVE

main22787-54026i2C#,3CT..CR2#,3#199201-199610

main22787-54027i2C#,3CT..CR2#,3#199201-199610

main22787-54028i2C#,3CT..CR2#,3#199201-199610

main22787-54029i2C#,3CT..CR2#,3#199201-199610

main22787-54030i2C#,3CT..CR2#,3#199201-199610

main22787-54031i2C#,3CT..CR2#,3#199201-199610

main22787-54032i2C#,3CT..CR2#,3#199201-199610

main22787-54033i2C#,3CT..CR2#,3#199201-199610

main22787-64640i2C#,3CT..CR2#,3#199201-199610

main22787-64641i2C#,3CT..CR2#,3#199201-199610

main22787-64642i2C#,3CT..CR2#,3#199201-199610

main22787-64643i2C#,3CT..CR2#,3#199201-199610

main22787-64680i2C,3CT..CR22,27,29,31,36,38199201-199610

22790COVER SUB-ASSY, TIMER

main22790-6A060i2C#..CR2#,36..MTM199201-199309

main22790-6A070i2CT..CR30,37;2C#..CR2#,36..ATM199201-199309

main22790-6D480i3CT..CR22,29,31,38199309-199610

main22790-6D500i2C..CR27,36..MTM199309-199610

main22790-6D520i2C..CR27,36..ATM199309-199610

22790ARING, O(FOR TIMER COVER)

main22193-17840i2C..CR27..ATM199510-199610

*98

main90099-14051i2C#,3CT..CR2#,3#199201-199311

main90099-14105i2C,3CT..CR2#,3#199311-199510

8301

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217264230CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-64230

221726A640CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-6A640

2219364750RING, O(FOR LEVER CONNECTING PIN)

main22193-64750

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009690024

main90096-90024

9009905161

main90099-05161

9009905225

main90099-05225

9009918022

main90099-18022
