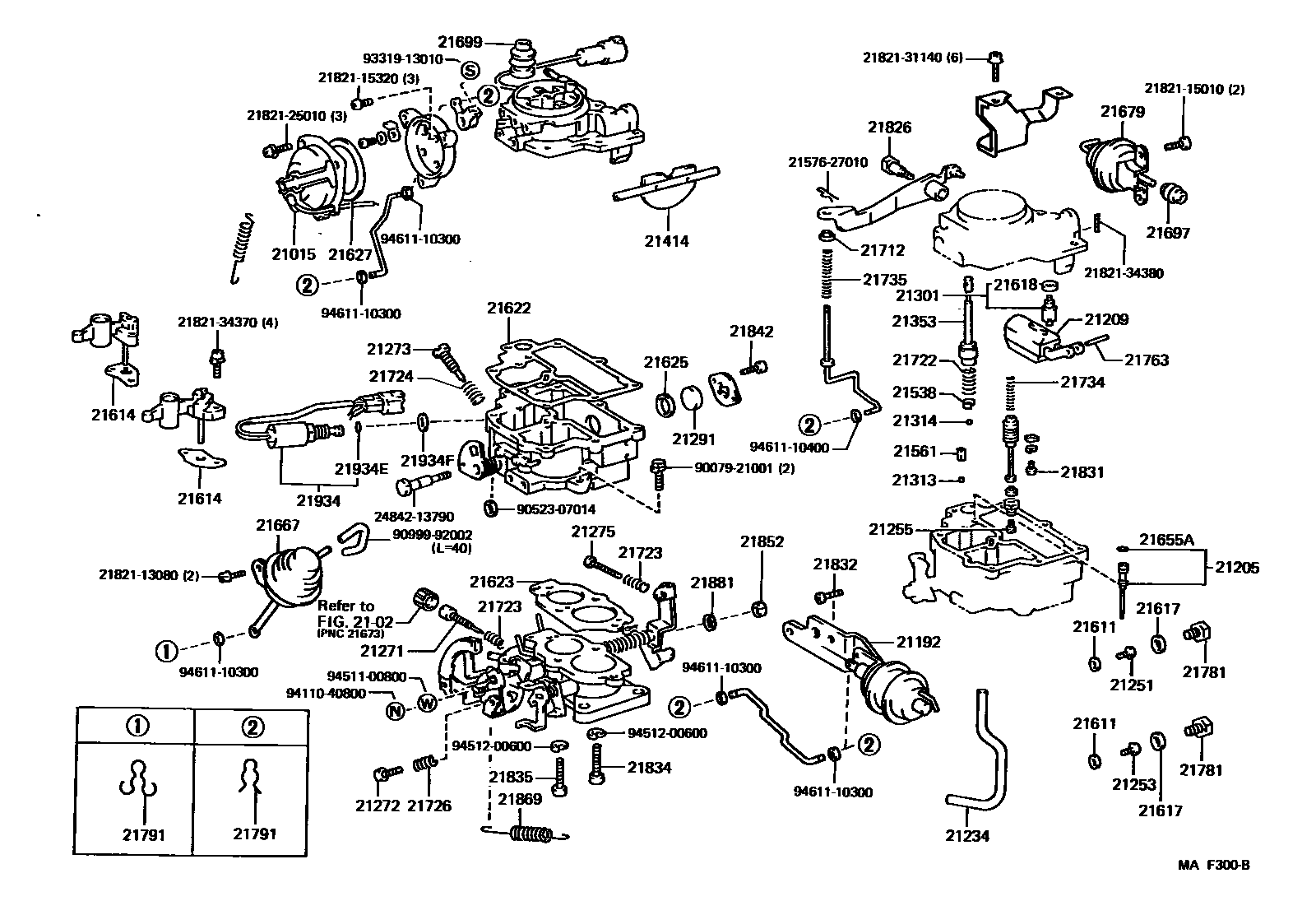

21015HOUSING SUB-ASSY, COIL

main21015-13790i199201-199610

main21015-72400i199201-199302

main21015-72420i199302-199610

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21192BREAKER

main21192-13530i199201-199302

main21192-13790i199302-199610

main21192-73300i199201-199610

21205JET SUB-ASSY, SLOW

main21205-13731i199201-199610

main21205-35210i199201-199610

21209FLOAT SUB-ASSY

main21209-13310i199201-199610

main21209-72160i199201-199610

21234PIPE OR HOSE

main21234-61020i199201-199610

21251JET, 1ST MAIN

main90999-41102i199201-199610

main90999-41108i199201-199610

21253JET, 2ND MAIN

main21253-72170i199201-199610

main90999-42159i199201-199610

21255JET, POWER

main90999-43100i199201-199610

21271SCREW, IDLE ADJUSTING

main21271-13271i199201-199610

main21271-15230i199201-199610

21272SCREW, 1ST IDLE ADJUSTING

main21272-71010×3i199201-199610

main21814-33010i199201-199610

21273SCREW, THROTTLE ADJUSTING

main21273-24231i199201-199610

main21273-72290i199201-199610

21275SCREW, ADJUSTING

main21275-10050i199201-199610

21291GLASS, LEVEL GAGE

main21291-34320i199201-199610

21301VALVE SUB-ASSY, NEEDLE

main21301-13310i199201-199610

main21301-35010i199201-199610

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i199201-199610

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-60010i199201-199610

21353PLUNGER, PUMP

main21353-13590i199201-199610

21414SHAFT, CHOKE

main21054-13391i199201-199610

21538RETAINER, BALL CHECK

main21538-31010i199201-199610

21561WEIGHT, PUMP DISCHARGE

main21561-22010i199201-199610

21611GASKET, MAIN JET

main21611-22010i199201-199610

21614GASKET, VENTURI

main21614-13430i199201-199610

main21614-24580i199201-199610

main21614-72200i199201-199610

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i199201-199610

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i199201-199610

21622GASKET, AIR HORN

main21622-13430i199201-199610

main21622-73330i199201-199610

21623GASKET, BODY FLANGE

main21623-13430i199201-199610

21625GASKET, LEVEL GAGE

main21655-60200i199201-199610

21627GASKET, COIL HOUSING

main21627-28090i199201-199610

main21627-28150i199201-199610

21655ARING, O(FOR SLOW JET)

main21655-44101i199201-199610

21667DIAPHRAGM

main21667-13740i199201-199610

main21667-13790i199201-199610

main21667-72200i199201-199610

MAIN

main21667-72301i199201-199610

*CHB

main21675-35330i199201-199610

SUB

21679POSITIONER

main21679-13530i199201-199610

21697BOOT(FOR SLIDING ROD)

main21699-41010i199201-199610

21699BOOT(FOR PUMP PLUNGER)

main21699-28150i199201-199610

21712BUSH, SLIDING ROD

main21712-38010i199201-199610

21722SPRING, PUMP DAMPING

main21722-22010i199201-199610

21723SPRING, IDLE ADJUSTING

main21723-21030i199201-199610

21724SPRING, THROTTLE ADJUSTING

main21723-38330i199201-199610

main21864-24230i199201-199610

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310×3i199201-199610

main21726-40010i199201-199610

21734SPRING, POWER PISTON

main21734-11610i199201-199610

main21734-37040i199201-199610

21735SPRING, PUMP ARM

main21735-22010i199201-199610

21763PIN, FLOAT LEVER

main21763-34320i199201-199610

main21763-38010i199201-199610

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230i199201-199610

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×3i199201-199208

main21791-13011×5i199208-199610

main21791-60010×5i199201-199208

21826SCREW, PUMP ARM SET

main21826-24470i199201-199610

21831SCREW, POWER PISTON STOP

main21821-15060i199201-199610

21832SCREW(FOR CHOKE LEVER ADAPTER SET)

main21821-15010i199201-199610

21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21834-31010i199201-199610

21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)

main21835-40010i199201-199610

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i199201-199610

21852NUT, THROTTLE LEVER SET

main21852-30010i199201-199610

21869SPRING(FOR MAIN JET)

main21869-11840i199201-199610

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i199201-199610

21934SOLENOID, THROTTLE VALVE

main21062-13790i199201-199610

main21062-72400i199302-199610

main21062-75010i199201-199302

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i199201-199610

21934FGASKET

main21649-38010i199201-199610

2157627010CLIP, PUMP STRAINER

main21576-27010

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182115320SCREW, 2ND THROTTLE VALVE SET

main21821-15320

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134370SCREW, 2ND THROTTLE VALVE SET

main21821-34370

2182134380SCREW, 2ND THROTTLE VALVE SET

main21821-34380

2484213790

main24842-13790

9007921001

main90079-21001

9052307014

main90523-07014

9099992002

main90999-92002

9331913010

main93319-13010

9411040800

main94110-40800

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400
