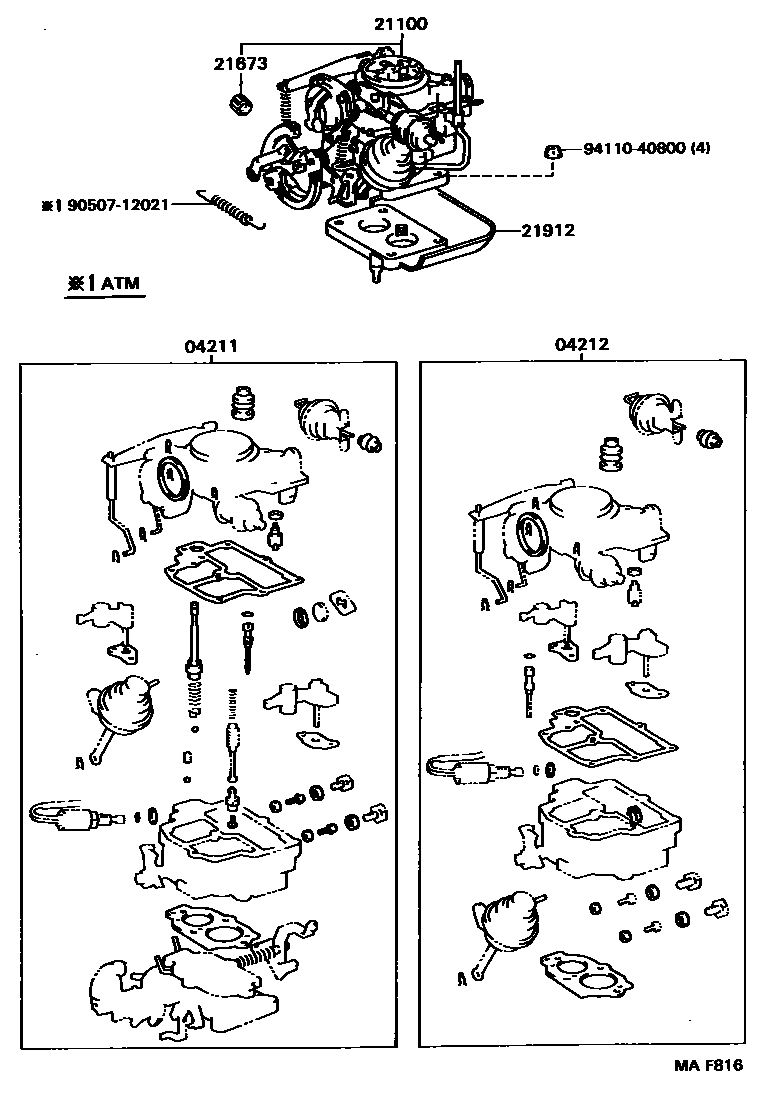

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-13490i5KJ..KR27199201-199610

main04211-72400i2YJ..YR25199201-199506

main04211-72401i2YJ..YR25199506-199610

04212GASKET KIT, CARBURETOR

main04212-13071i5KJ..KR27199201-199610

main04212-73101i2YJ..YR25199201-199610

21100CARBURETOR ASSY

main21100-13790i5KJ..KR27..MTM199201-199610

main21100-13800i5KJ..KR27..ATM199201-199610

main21100-72400i2YJ..YR25199201-199610

21673CAP, IDLE LIMIT

main21673-13280i2YJ..YR25; 5KJ..KR27199201-199610

21912INSULATOR, CARBURETOR HEAT

main21901-72010i2YJ..YR25199201-199406

main21901-72011i2YJ..YR25199406-199610

main21912-13070i5KJ..KR27199201-199610

9050712021

main90507-12021

9411040800

main94110-40800

7 parts on this diagram · 2 diagrams in section
