DISTRIBUTOR

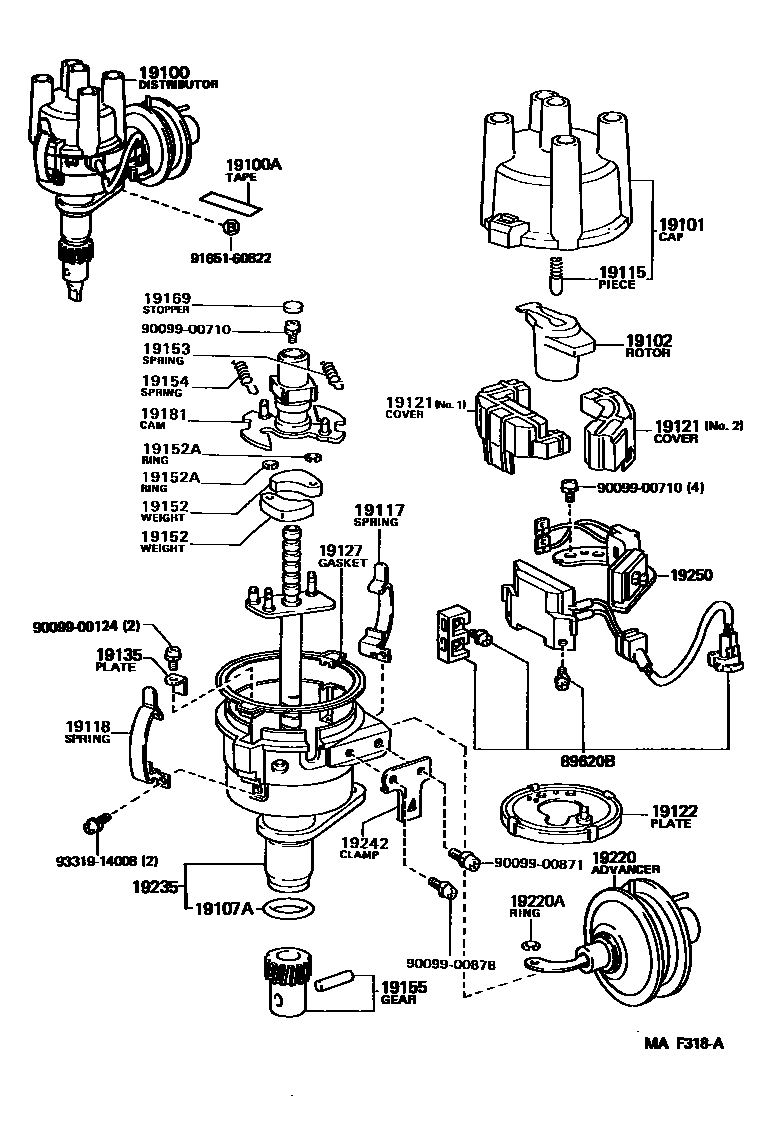

Parts diagram

19100DISTRIBUTOR ASSY

main19030-72030i199201-199508

main19030-72032i199508-199610

main19040-73031i199201-199508

main19040-73070i199508-199610

main19060-13150i199201-199508

main19060-13200i199508-199610

19100ATAPE, SEALING

main90919-24004i199201-199312

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-13010i199201-199610

main19101-71010i199201-199610

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16040i199201-199610

main19102-16060i199201-199610

main19102-33012i199201-199610

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i199201-199610

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199201-199610

main19115-88280i199201-199610

19117SPRING, DISTRIBUTOR CAP, A

main19117-24080i199201-199610

19118SPRING, DISTRIBUTOR CAP, B

main19117-24080i199201-199610

19121COVER, DUST PROOF

main19121-63010i199201-199610

main19121-63040i199201-199610

main19121-88260i199201-199610

main19121-88261i199201-199610

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-88263i199201-199610

19127PACKING, DUST PROOF

main19127-15010i199201-199610

main19127-63010i199201-199610

main19127-63020i199201-199610

19135PLATE, HOLDER

main19135-24080×2i199201-199610

19152WEIGHT, GOVERNOR

main19152-63010×2i199201-199610

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i199201-199610

19153SPRING, GOVERNOR, A

main19153-13080i199201-199610

main19153-71060i199201-199610

19154SPRING, GOVERNOR, B

main19153-71060i199201-199610

main19154-13080i199201-199610

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-13060i199201-199610

main19195-71010i199201-199603

main19195-72090i199603-199610

19169STOPPER, CAM GREASE

main19169-63011i199201-199610

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-13010i199201-199610

main19181-72011×2i199201-199610

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-13180i199201-199508

main19220-13470i199508-199610

main19220-72030i199201-199508

main19220-72080i199508-199610

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07109i199201-199610

19235HOUSING, DISTRIBUTOR

main19235-13030i199201-199610

main19235-71010i199201-199610

main19235-73080i199201-199508

main19235-73100i199508-199610

19242CLAMP, CORD

main19242-13080i199201-199610

main19242-72030i199201-199610

main19242-73030i199201-199610

19250GENERATOR ASSY, SIGNAL

main19250-13030i199201-199610

main19251-63011i199201-199610

89620BIGNITER ASSY

main89620-27031i199201-199610

main89620-32020i199201-199610

9009900124

main90099-00124

9009900710

main90099-00710

9009900871

main90099-00871

9009900878

main90099-00878

9165160822

main91651-60822

9331914008

main93319-14008

31 parts on this diagram · 3 diagrams in section
