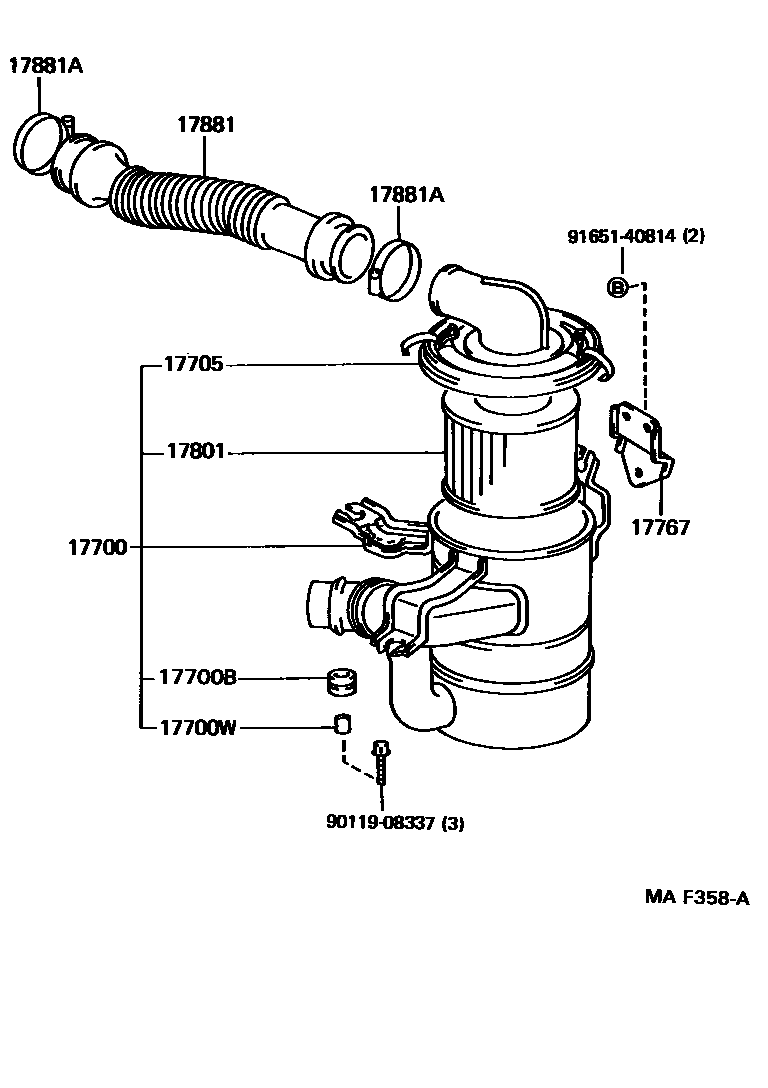

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17700CLEANER ASSY, AIR

main17700-13730i5KJ..KR27199201-199610

main17700-64150i2C#..CR2#,3#199201-199309

sub17700-64160

main17700-64320i2C,3CT..CR2#,3#199309-199610

main17700-72091i2YJ..YR25199201-199610

main17700-73043i3YEU..YR21,30199201-199610

17700BWASHER, SEAL(FOR AIR CLEANER)

main90480-12010i2C#,3CT..CR2#,3#199201-199610

17700WSPACER(FOR AIR CLEANER)

main90560-08038i2C#,3CT..CR2#,3#199201-199610

17705CAP SUB-ASSY, AIR CLEANER

main17705-13180i5KJ..KR27199201-199610

main17705-64020i2C#..CR2#,3#199201-199309

main17705-64210i2C,3CT..CR2#,3#199309-199610

main17705-72030i2YJ..YR25199201-199610

main17705-73011i3YEU..YR21,30199201-199610

17767BRACKET, AIR CLEANER

main17771-28010i2C#,3CT..CR2#,3#199201-199610

main17771-28020i2YJ..YR25199201-199610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16010i5KJ..KR27199201-199610

main17801-54050i2C#..CR2#,3#199201-199309

main17801-64080i2C,3CT..CR2#,3#199309-199610

main17801-70010i3YEU..YR21,30199201-199610

17881HOSE, AIR CLEANER, NO.1

main17880-64090i2C..CR27,36199201-199309

main17880-64270i2C..CR27,36199309-199610

main17880-64300i2C..CR27..ATM199408-199610

W(EGR)

main17881-13130i5KJ..KR27199201-199610

main17881-71060i2YJ..YR25199201-199610

main17881-73020i3YEU..YR21,30199201-199610

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

sub90467-56001

main90460-73003i2C..CR27,36199201-199610

MANIFOLD SIDE

sub90460-73011

main90460-77003i2C..CR27,36199201-199309

AIR CLEANER SIDE

main90460-80001i2YJ..YR25199201-199610

sub90460-80006

main90460-82001i2C..CR27,36199309-199610

AIR CLEANER SIDE

sub90460-82002

main96111-10710i3YEU..YR21,30199201-199610

THROTTLE BODY SIDE

main96111-10800i3YEU..YR21,30199201-199610

AIR FLOW METER SIDE

9011908337

main90119-08337

9165140814

main91651-40814

10 parts on this diagram · 9 diagrams in section
