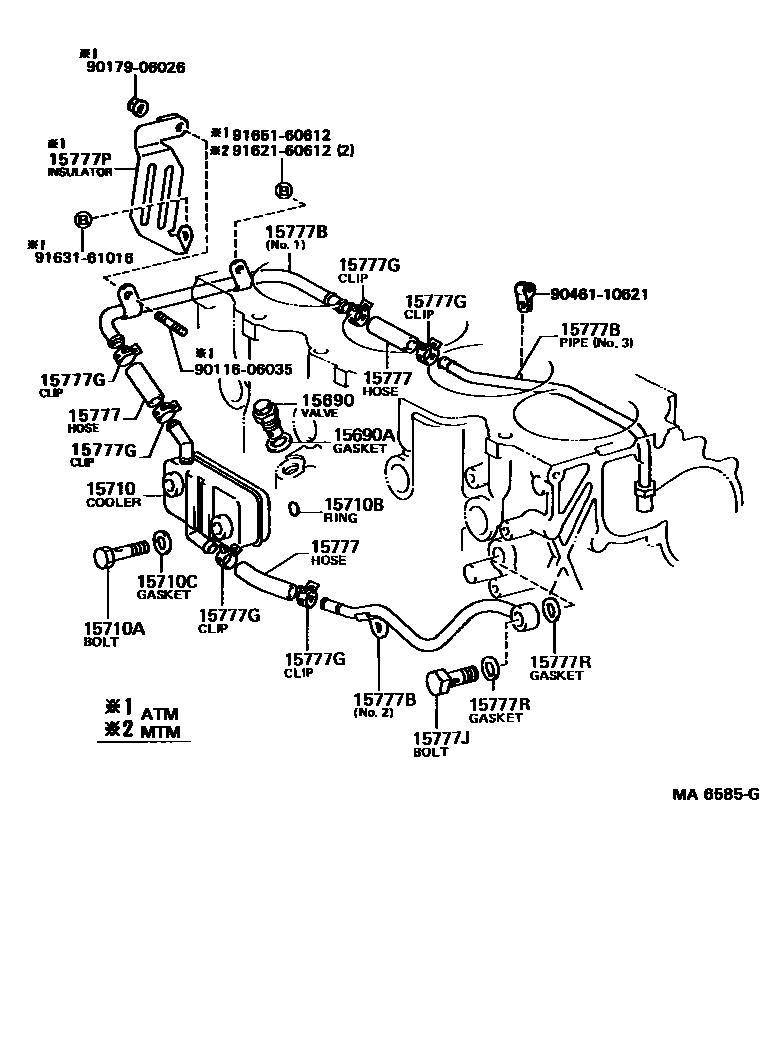

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-64010i2C..CR27,36199201-199610

main15690-64030i2CT,3CT..CR30,31,37,38199201-199610

main15690-64040i2CT,3CT..CR21,22,28,29199201-199610

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i2C..CR27,36199201-199610

15710COOLER ASSY, OIL

main15710-64010i2C..CR27,36199201-199610

main15710-64060i2CT..CR30,37199201-199309

main15710-64070i2CT..CR21,28199201-199309

main15710-64100i3CT..CR31,38199309-199610

main15710-64110i3CT..CR22,29199309-199610

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009×2i2C..CR27,36199201-199610

15710BRING, O(FOR OIL COOLER)

main90301-22004×2i2C..CR27,36199201-199610

main90301-24006i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

15710CGASKET(FOR OIL COOLER)

main90301-61003i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

main90430-18021×2i2C..CR27,36199201-199610

15777HOSE, OIL COOLER

main90445-21006i2C..CR27,36; 2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

15777BPIPE, OIL COOLER

main15767-64011i2C..CR27,36199201-199610

main15767-64031i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

main15768-64021i2C..CR27,36199201-199610

main15768-64081i2CT..CR21,28,30,37199201-199309

main15768-64082i3CT..CR22,29,31,38199309-199610

main15769-64011i2C#..CR21,27,28,30,36,37; 3CT..CR22,29,31,38199201-199501

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i2C#,3CT..CR2#,3#199201-199610

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C..CR27,36199201-199610

main90401-20010i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

15777PPROTECTOR, HOSE HEAT

main17168-64030i2C..CR27,36..ATM199201-199610

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20004×2i2C#,3CT..CR2#,3#199201-199411

main90430-20014×2i2C,3CT..CR2#,3#199411-199610

9011606035

main90116-06035

9017906026

main90179-06026

9046110621

main90461-10621

9162160612

main91621-60612

9163161016

main91631-61016

9165160612

main91651-60612

18 parts on this diagram · 2 diagrams in section
