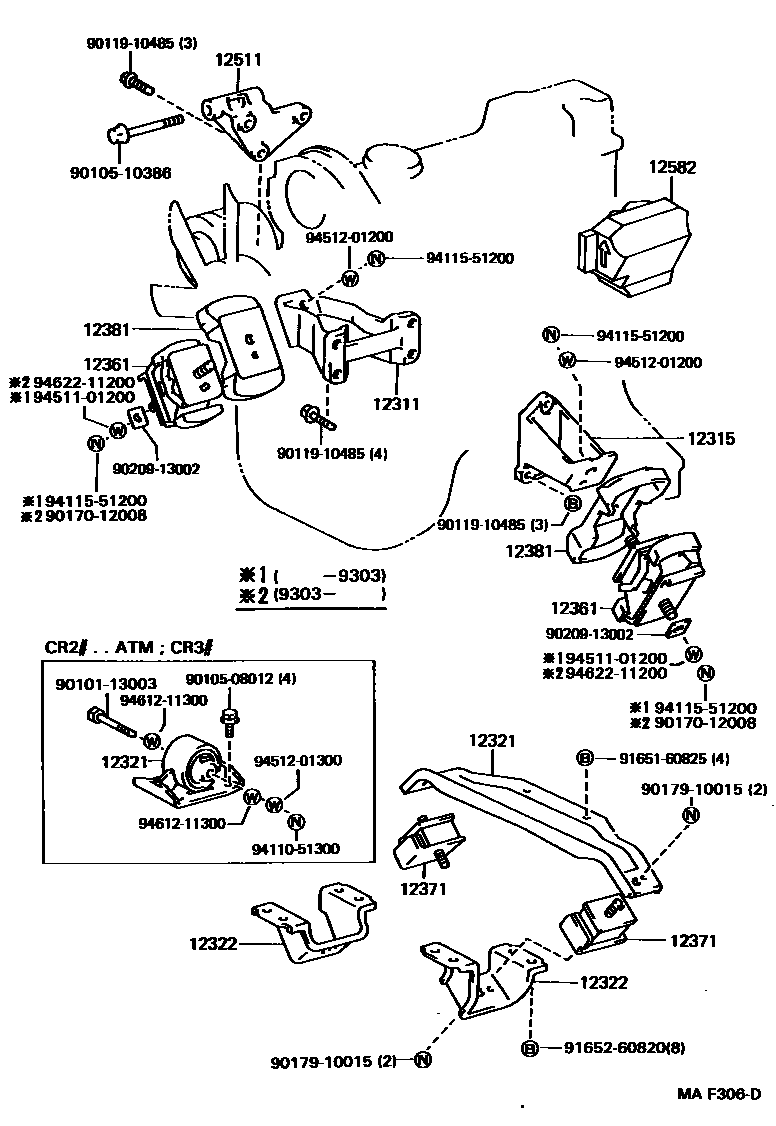

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13150i5KJ..KR27199201-199410

main12301-13151i5KJ..KR27199410-199610

main12311-64060i2C#,3CT..CR2#,3#199201-199610

main12311-71010i2YJ,3YEU..YR2#,30199201-199610

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i5KJ..KR27199201-199410

main12302-13092i5KJ..KR27199410-199610

main12315-64020i2C#,3CT..CR2#,3#199201-199608

main12315-64120i2C,3CT..CR2#,3#199608-199610

main12315-71010i2YJ,3YEU..YR2#,30199201-199610

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54010i2C#,3CT..CR3#; 3YEU..YR30199201-199610

main12303-71010i2C#,3CT..CR2#..ATM; 2YJ,3YEU..YR2#..ATM; 5KJ..KR27..ATM199201-199610

main12321-13060i5KJ..KR27..MTM199201-199610

main12321-64010i2C#,3CT..CR2#..MTM199201-199610

main12321-71020i2YJ,3YEU..YR2#..MTM199201-199610

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-13030i2C#,3CT..CR2#..MTM; 2YJ,3YEU..YR2#..MTM; 5KJ..KR27..MTM199201-199610

main12326-13010i2C#,3CT..CR2#..MTM; 2YJ,3YEU..YR2#..MTM; 5KJ..KR27..MTM199201-199610

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022×2i2C#..CR2#,3#199201-199301

main12361-64023×2i2C#,3CT..CR2#,3#199301-199610

main12361-71020×2i2YJ,3YEU..YR2#,30199201-199610

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13051×2i2C#,3CT..CR2#..MTM; 2YJ,3YEU..YR2#..MTM; 5KJ..KR27..MTM199201-199610

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i2C#..CR2#,3#199201-199305

main12381-64011×2i2C#,3CT..CR2#,3#199305-199610

main12381-71030×2i2YJ,3YEU..YR2#,30199201-199610

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i2YJ,3YEU..YR2#,30199201-199610

main12511-24011i5KJ..KR27199201-199610

main12511-64030i2C#..CR2#,3#199201-199309

main12511-64080i2C,3CT..CR2#,3#199309-199610

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-64020i2CT,3CT..CR30,31,37,38..ATM199201-199402

9010113003

main90101-13003

9010508012

main90105-08012

9010510386

main90105-10386

9011910485

main90119-10485

9017012008

main90170-12008

9017910015

main90179-10015

9020913002

main90209-13002

9165160825

main91651-60825

9165260820

main91652-60820

9411051300

main94110-51300

9411551200

main94115-51200

9451101200

main94511-01200

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

9462211200

main94622-11200

25 parts on this diagram · 3 diagrams in section
