ENGINE OVERHAUL GASKET KIT

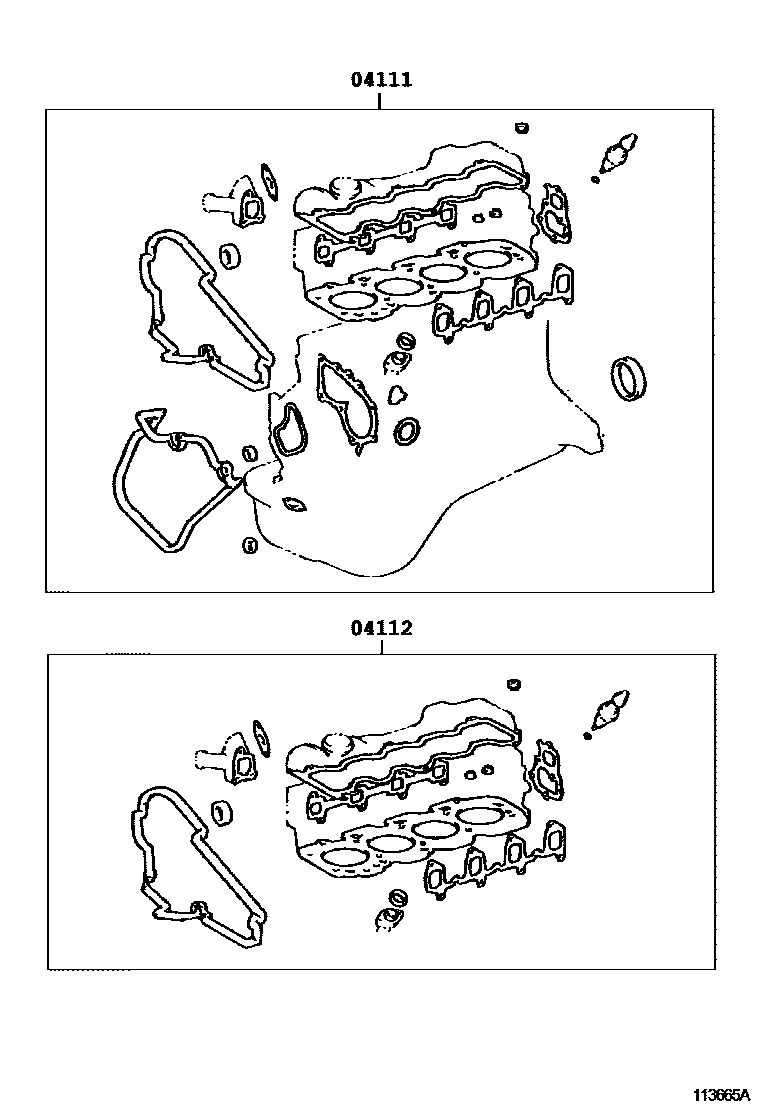

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-13044i199201-199508

main04111-13045i199508-199610

main04111-64175i199201-199309

main04111-64176i199201-199309

main04111-64230i199309-199504

main04111-64231i199504-199511

main04111-64232i199511-199610

main04111-64240i199309-199504

main04111-64241i199504-199509

main04111-64242i199509-199511

main04111-64243i199511-199610

main04111-72015i199201-199308

main04111-72016i199308-199610

main04111-73018i199201-199308

main04111-73019i199308-199610

04112GASKET KIT, ENGINE VALVE GRIND

main04112-13022i199201-199508

main04112-13023i199508-199610

main04112-64113i199201-199309

main04112-64114i199201-199309

main04112-64170i199309-199504

main04112-64171i199504-199511

main04112-64172i199511-199610

main04112-64180i199309-199504

main04112-64181i199504-199509

main04112-64182i199509-199511

main04112-64183i199511-199610

main04112-72015i199201-199308

main04112-72016i199308-199610

main04112-73017i199201-199308

main04112-73018i199308-199610

2 parts on this diagram · 5 diagrams in section
