STANDARD TOOL

09110JACK ASSY

main09110-28070iCR22,29,3#,YR21,30;CR27,KR27,YR25..V1199604-199610

main09110-28080iCR27,KR27,YR25..V2199604-199610

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iCR2#,3#,KR27,YR2#,30199201-199610

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iCR2#,3#,KR27,YR2#,30199201-199610

09116LEVER, JACK HANDLE

main09116-35041iCR2#,3#,KR27,YR2#,30199201-199610

09120BAG, TOOL

main09120-26021iCR2#,KR27,YR2#199201-199403

main09120-28010iCR3#,YR30199201-199403

main09120-30030iCR2#,3#,KR27,YR2#,30199403-199610

09130PLIERS

main99913-11500iCR2#,3#,KR27,YR2#,30199201-199610

09135DRIVER, SCREW

main99915-10700iCR2#,3#,KR27,YR2#,30199201-199610

09141SPANNER

main99914-10810iCR2#,3#,KR27,YR2#,30199201-199610

main99914-11214iCR2#,3#,KR27,YR2#,30199201-199610

09150WRENCH, HUB NUT BOX

main09150-35020iCR2#,3#,KR27,YR2#,30199201-199309

main09150-40010iCR2#,3#,KR27,YR2#,30199309-199610

09155WRENCH, SPARK PLUG

main09155-44010iKR27199201-199610

09168WRENCH, ROOF PANEL

main09168-28020iCR21,30,YR21,30..E,Q,Z199201-199309

09183AREPLACER, WHEEL CAP

main09183-28010iCR3#,YR30199201-199309

main09183-28020iCR3#,YR30199309-199610

09184STOPPER, WHEEL

main09184-00010iCR2#,3#,KR27,YR2#,30199201-199610

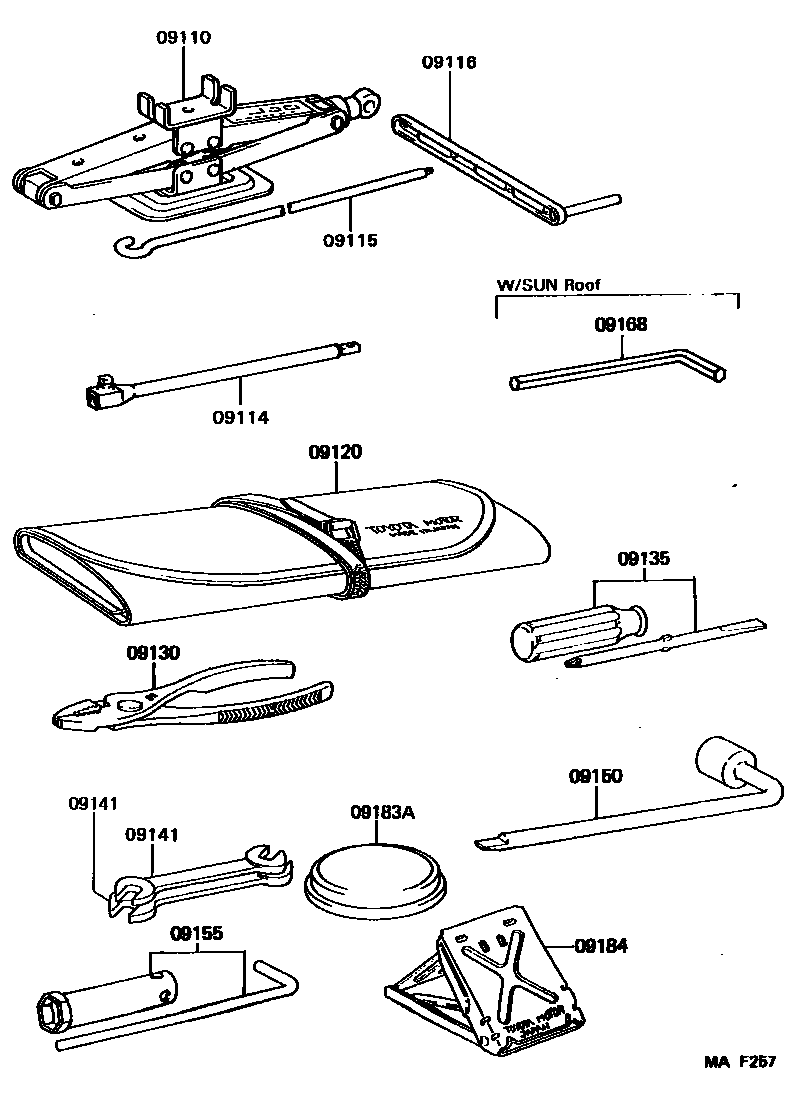

13 parts on this diagram · 1 diagram in section
