MIRROR

0001 1 0002 1 0003 1 0004 1OUTER UNDER

8121INTERIOR LAMP

→ Go to FIG 81-21

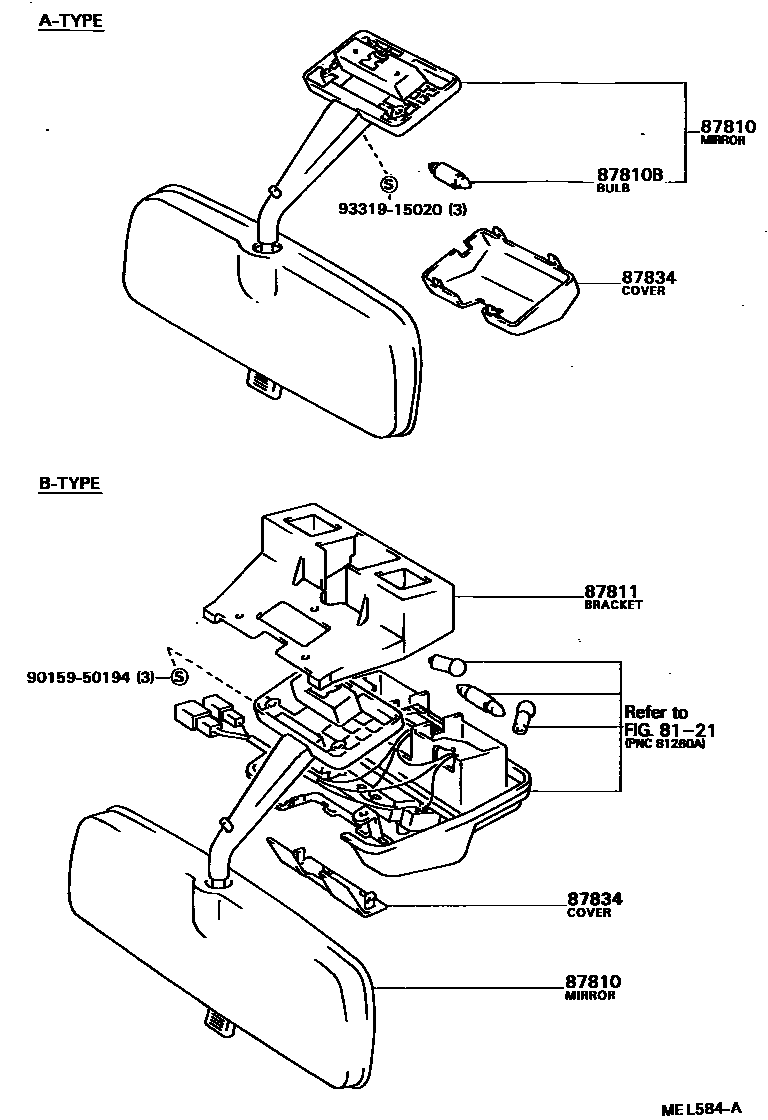

87810MIRROR ASSY, INNER REAR VIEW

main87801-28010-06iCR21,30,YR20,21..HRF..E; CR21,30,YR21,30..Q; YR30..E198808-199201

main87801-28010-13iCR21,30,YR20,21..HRF..E; CR21,30,YR21,30..Q; YR30..E198808-199201

main87801-28030-13iCR2#,36,37,KR27,YR20,25,28,36..B,D,F199009-199201

GRAY,TRIM1#

main87801-87014-03iCR21,27,30,36,YR20,21,25,30..E,G,N198808-199201

GRAY,TRIM1#

main87801-87014-06iCR21,30,YR20,21,30..E,G198808-199201

LIGHT SABLE,TRIM4#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

87811BRACKET, INNER RR VIEW MIRROR

main87811-87001iCR21,30,YR20,21,30..HRF..(E,Q)198808-199201

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

main87834-87003-06iCR21,30,YR20,21,30..HRF..(E,Q)198808-199201

LIGHT SABLE,TRIM4#

main87834-87003-23iCR21,30,YR20,21,30..HRF..(E,Q)198808-199201

GRAY,TRIM1#

9015950194

main90159-50194

9331915020

main93319-15020

7 parts on this diagram · 4 diagrams in section
