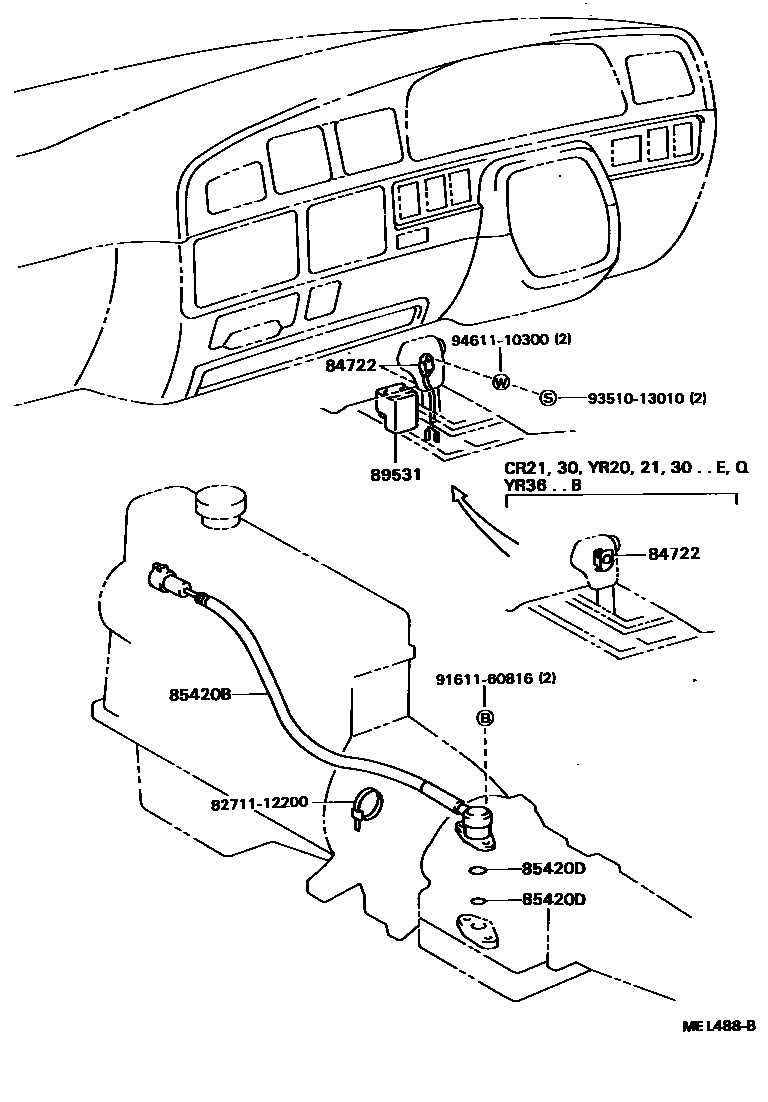

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-20060-03iCR21,30,YR20,21,3#..4FC..(B,E,Q)198808-199201

GRAY,TRIM1#

main84722-20060-06iCR21,30,YR20,21,30..4FC..(E,Q)198808-199201

SABLE,TRIM4#

main84722-32010iCR2#,36,YR20,25,28..4FC..(B,D,F,G,N)198808-199201

85420BSOLENOID ASSY, TRANSMISSION

main85420-28020iCR2#,30,36,YR2#,3#..4FC198808-199201

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iCR2#,30,36,YR2#,3#..4FC198808-199201

ID=10

main90301-23001iCR2#,30,36,YR2#,3#..4FC198808-199201

ID=23

89531RELAY, TRANSMISSION CONTROL

main89531-28010iCR2#,YR2#..4FC198808-199201

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9351013010

main93510-13010

9461110300

main94611-10300

8 parts on this diagram · 1 diagram in section
