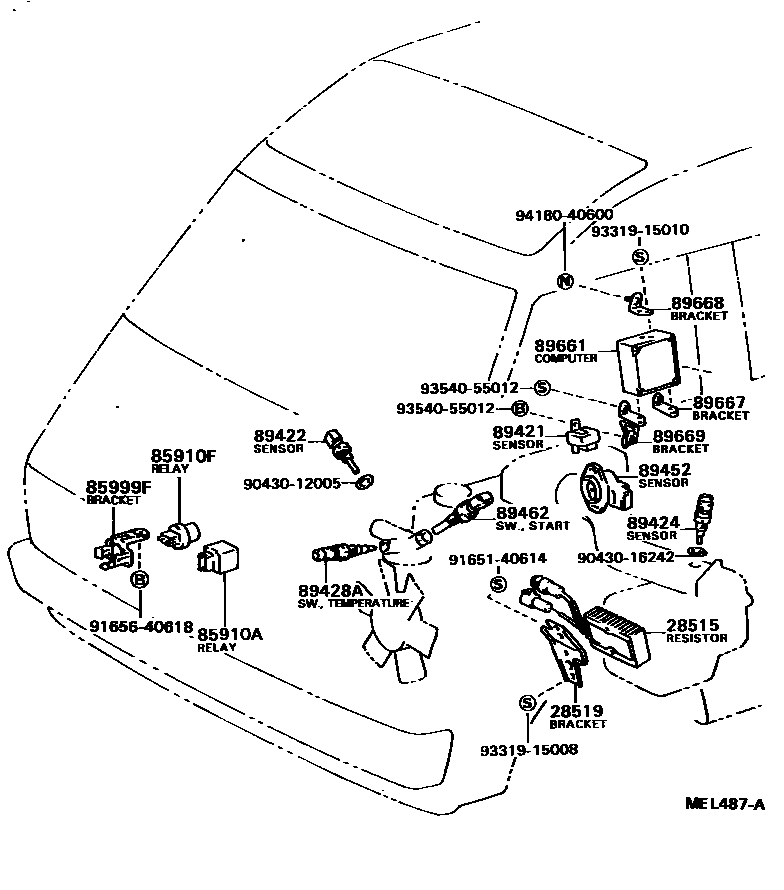

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-26020i3YEU..YR21,3#198808-199201

28519BRACKET, SOLENOID RESISTOR

main28519-28010i3YEU..YR21,3#198808-199201

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iYR21,3#198808-199201

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR21,3#198808-199201

85999FBRACKET, RELAY

main85999-12050iYR21,3#198808-199201

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-28010iYR21,3#198808-198908

main89420-28020iYR21,3#198908-199201

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYR21,3#198808-199201

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iYR21,3#198808-199201

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iYR21,3#198808-199201

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iYR21,3#198903-199201

main89452-28030iYR21,3#198808-198903

89462SWITCH, START INJECTOR TIME

main89462-20030iYR21,3#198808-199201

89661COMPUTER, ENGINE CONTROL

main89661-28070iYR21,3#198808-199201

89667BRACKET, ENGINE CONTROL COMPUTER

main89567-28010iYR21,3#198808-199201

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR21,3#198808-199201

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89667-28010iYR21,3#198808-199201

9043012005

main90430-12005

9043016242

main90430-16242

9165140614

main91651-40614

9165640618

main91656-40618

9331915008

main93319-15008

9331915010

main93319-15010

9354055012

main93540-55012

9418040600

main94180-40600

23 parts on this diagram · 1 diagram in section
