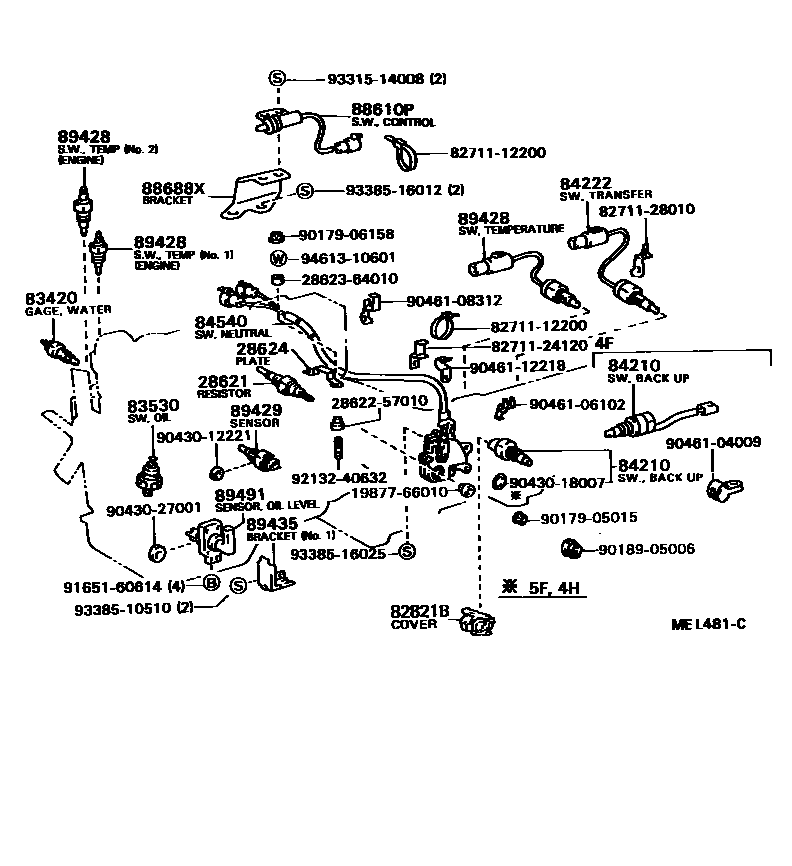

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28621RESISTOR, GLOW PLUG

main28621-64011i2C#..CR2#,3#198808-199201

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CR27,36198808-199201

main28624-64030i2CT..CR21,28,30,37198808-199201

82821BCOVER, CONNECTOR

main82821-12250iCR2#,3#,KR27,YR2#,3#..5F,5H198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCR2#,3#,KR2#,YR2#,3#198808-199201

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR2#,3#198808-199201

main83530-30060iCR2#,3#198808-199201

main83530-30080iKR2#198808-199201

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main84210-26030iKR26,YR25..4H198808-199008

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iCR3#,YR3#198808-199201

84540SWITCH ASSY, NEUTRAL START

main84540-35010iYR2#,3#..4FC198808-199201

main84540-35020iCR2#,30,36..4FC198808-199201

88610PSWITCH ASSY, CONTROL

main88601-87002iYR21..Q; YR30;KR27,YR20,21..03S,06S,08S198808-199201

main88610-28060iCR21,30..5F..(E,G,Q)198808-199201

main88610-87006iYR21..Q198808-199201

88688XBRACKET, SWITCH

main88688-28070iCR21,30..5F..(E,G,Q)198808-199201

main88688-87028iKR27,YR20,21,30..03S,06S,07S,08S198808-199201

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-28030iYR3#..B,Q; YR30198808-199008

ENGINE

main89428-28040iCR30,36,YR3#..4FC198808-199201

TRANSMISSION

main89428-28050iCR30,37199008-199201

NO.1,ENGINE

main89428-28060iCR30198808-199201

NO.2,ENGINE

89429SENSOR, OIL TEMPERATURE

main89422-20010iCR2#,3#198808-199201

89435BRACKET, CONNECTOR COVER

main89435-28030iCR2#,3#,YR2#,3#198808-199201

NO.1

main89435-28040iYR2#198808-199201

NO.2

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKR2#198808-199201

main89491-27020iYR2#,3#198808-199201

main89491-27030iCR2#,3#198808-199201

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046106102

main90461-06102

9046108312

main90461-08312

9046112218

main90461-12218

9165160614

main91651-60614

9213240632

main92132-40632

9331514008

main93315-14008

9338510510

main93385-10510

9338516012

main93385-16012

9338516025

main93385-16025

9461310601

main94613-10601

37 parts on this diagram · 7 diagrams in section
