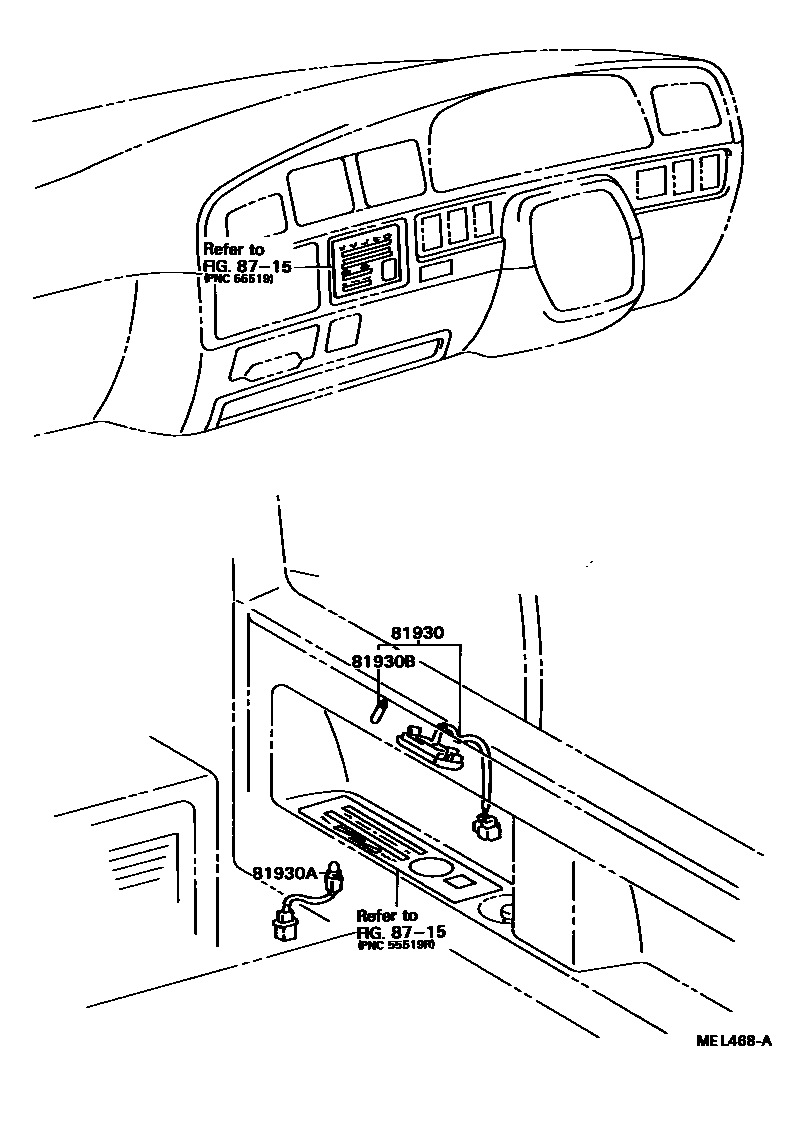

INDICATOR

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-87004iYR25..V4D..N;CR27,36..V4D..05S;CR21,28,37,YR20,28,36..B,D,F198808-199201

81930ALAMP ASSY, HEATER CONTROL INDICATOR, NO.2

main81930-90K00iCR21,30,YR20,21,30..E,G,Q198808-199201

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iYR25..V4D..N;CR27,36..V4D..05S;CR21,28,37,YR20,28,36..B,D,F198808-199201

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

4 parts on this diagram · 1 diagram in section
